850nm 2×2 Filter Type Multimode Fiber Splitter
◎ P/N: 77552
◎ Attention: For a formal quote, please send product details to sales@fiber-life.com.
Delivery: Order today and it will be shipped before from the U.S. or Hong Kong via FedEx/DHL/UPS. Free shipping on orders over US$200.
Warranty: Fiber-Life offers a 1-year warranty, 30-day returns, and 30-day exchanges.
$60.00 – $120.00

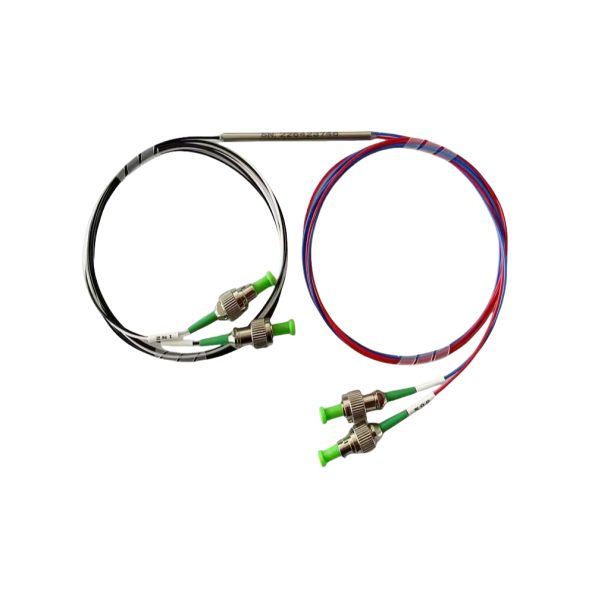

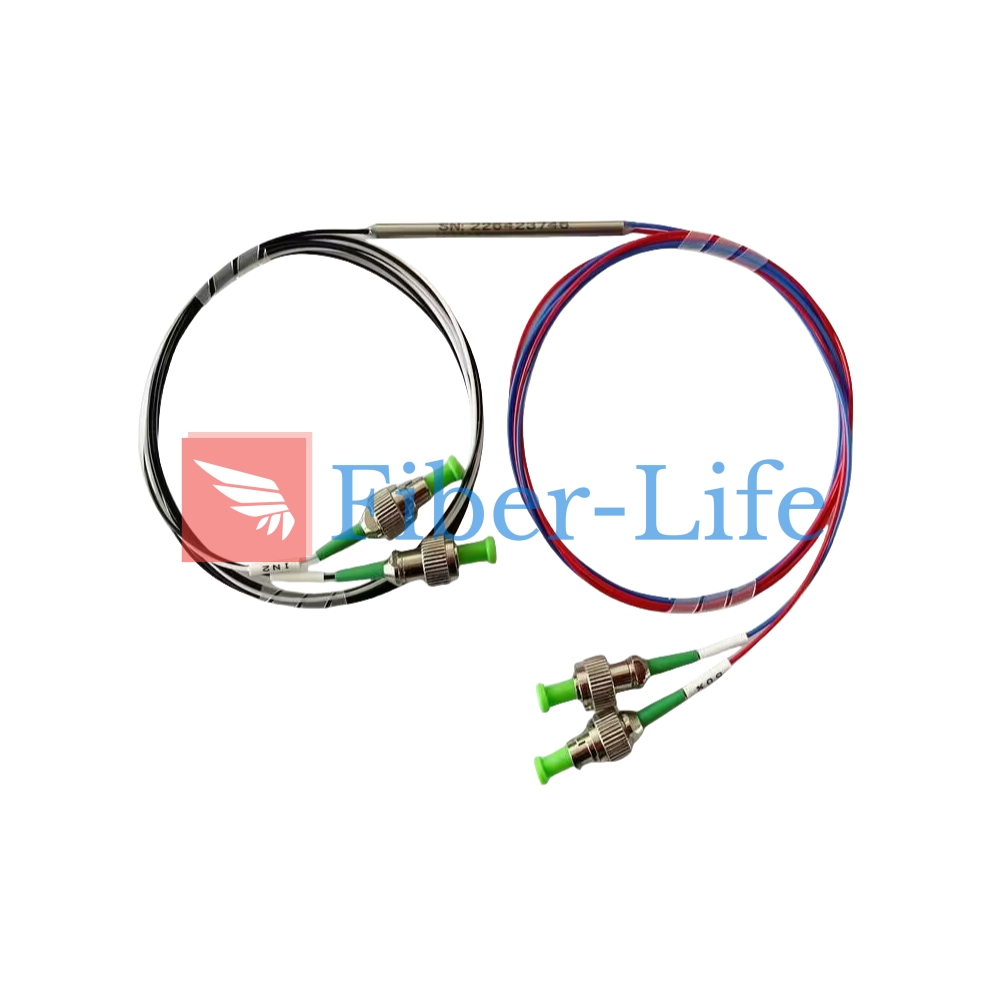

850nm 2×2 Filter Type Multimode Fiber Splitter – High-Performance Fiber Optic Splitter for Reliable Data Transmission
The 850nm 2×2 Filter Type Multimode Fiber Splitter is a high-performance optical splitter designed for fiber optic networks, ideal for use in data centers, enterprise networks, and optical communication systems. Made with high-quality optical components and precision engineering, this splitter ensures exceptional optical signal distribution performance. Operating at a wavelength of 850nm, it efficiently handles high-speed data transmission, ensuring network stability and low latency.
Specifications
Parameter | Value |
---|---|
Operating Wavelength (nm) | 850±40 |
Insertion Loss (dB) (50/50) | ≤3.9/3.9 |
Insertion Loss (dB) (10/90) | ≤11.5/1.2 |
Insertion Loss (dB) (5/95) | ≤14.5/0.9 |
Polarization Dependent Loss (dB) | ≤0.15 |
Return Loss (dB) | ≥35 |
Directivity (dB) | ≥30 |
Maximum Power Handling (mW) | 500 |
Operating Temperature (°C) | -10~+70 |
Storage Temperature (°C) | -40~+85 |
Fiber Type | OM1 or OM2 or OM3 |
Package Dimension (mm) (250μm, 900μm) | Ø5.5 × L38 (Steel Tube) |
Package Dimension (mm) (2.0mm, 3.0mm) | L90 × W20 × H10 (ABS Box) |
Features:
- 850nm Wavelength for Optimized Transmission: Operates at a standard 850nm wavelength, compatible with most multimode fiber systems, making it ideal for various fiber optic communication applications.
- 2×2 Splitter Design: Supports two input signals, which are split into two output ports, perfect for network expansion and load balancing.
- Filter Technology: The filter-type design effectively reduces optical loss and signal interference, ensuring stable and reliable data transmission.
- Low Loss & High Stability: Premium optical components ensure low insertion loss and high return loss, providing efficient signal distribution.
- Compatible with Multimode Fiber: Fully compatible with standard multimode fibers, offering wide applicability and flexibility in deployment.
- Wide Operating Environment: Performs reliably across various temperature and humidity conditions, making it suitable for demanding environments.
Applications:
- Data Centers: Ideal for fiber optic connections in data centers, ensuring stable and reliable signal distribution.
- Enterprise Networks: Meets high-speed transmission requirements and enhances network scalability and flexibility.
- Telecommunication Stations: Supports large-scale optical signal distribution, improving communication quality and coverage.
Why Choose the 850nm 2×2 Filter Type Multimode Fiber Splitter?
With its optimized wavelength and filter technology, the 850nm 2×2 Fiber Splitter delivers low signal loss while maintaining superior signal quality. It’s perfect for high-density, high-speed fiber networks, whether for new installations or network expansions. It provides stable and reliable performance, ensuring that your network infrastructure remains fast and dependable.
Order the 850nm 2×2 Filter Type Multimode Fiber Splitter today to enhance your network’s performance and ensure reliable, high-speed signal distribution!
