JILONG 280T Core Alignment Fiber Fusion Splicer
◎ P/N: 63320
◎ Attention: For a formal quote, please send product details to sales@fiber-life.com.
Delivery: Order today and it will be shipped before from the U.S. or Hong Kong via FedEx/DHL/UPS. Free shipping on orders over US$200.
Warranty: Fiber-Life offers a 1-year warranty, 30-day returns, and 30-day exchanges.
$2,588.00

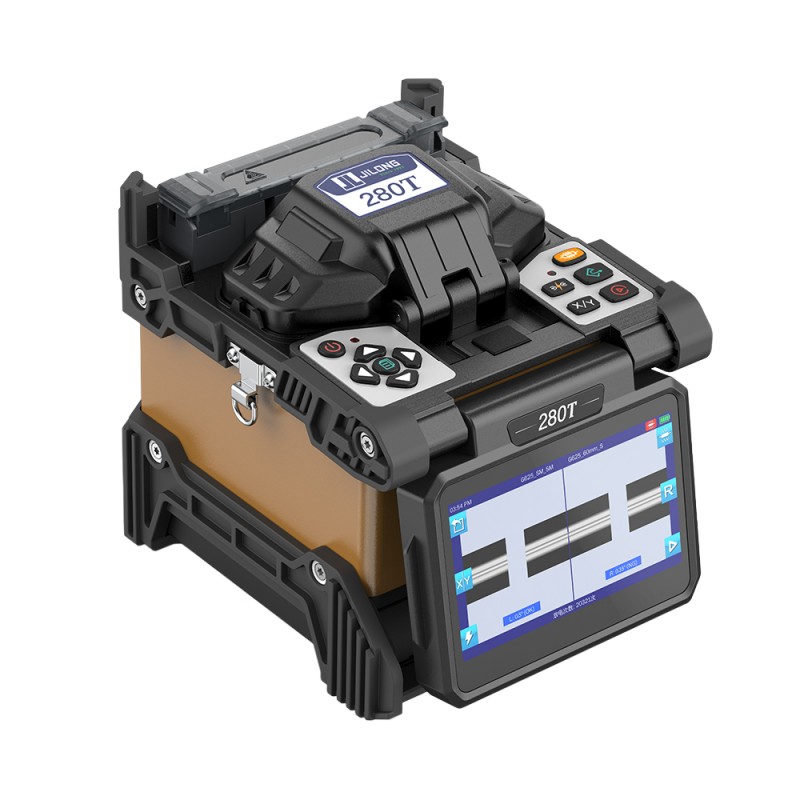

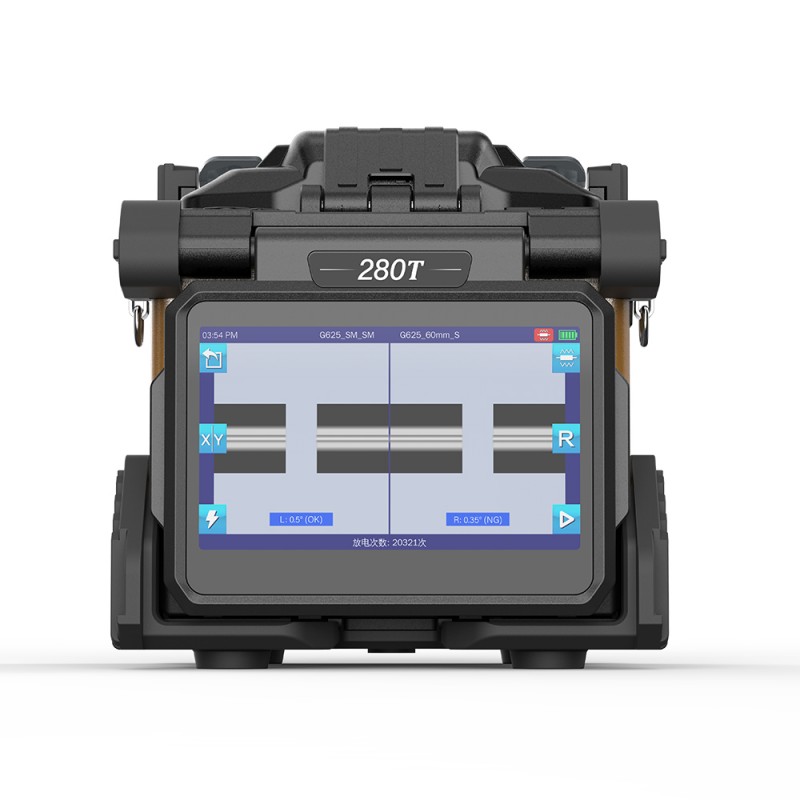

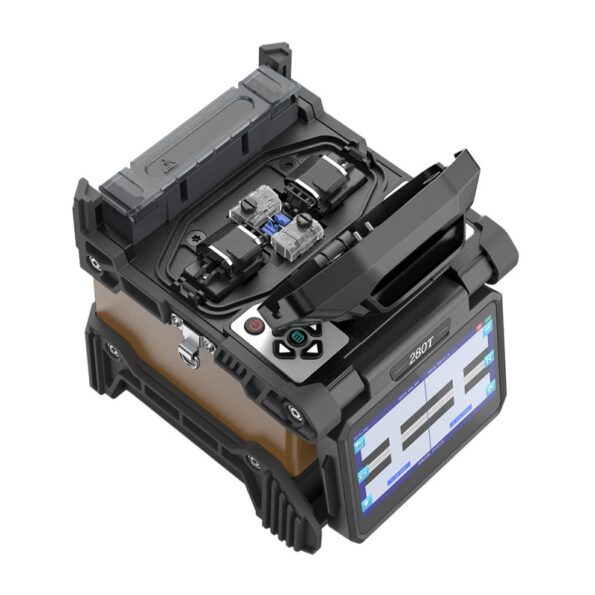

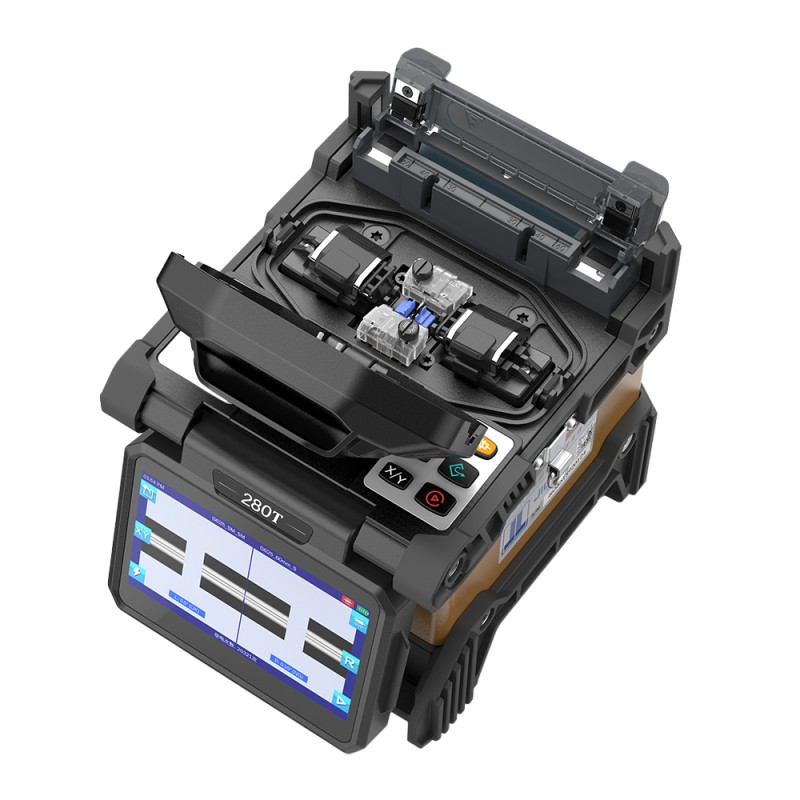

JILONG 280T Core Alignment Fiber Fusion Splicer
The JILONG 280T Core Alignment Fiber Fusion Splicer is a high-performance machine engineered for precision, durability, and ease of use. It features a powerful core alignment system and supports up to 300 splicing and heat cycles per charge. With a 4.3-inch capacitive touch screen, the device offers intuitive operation, while its fully automatic splicing and heating functions enhance efficiency. Designed for field use, it comes with tool-free replaceable electrodes lasting up to 5000 uses, and a robust 6800mAh lithium battery ensures long operation time. Its rugged, dustproof, moisture-resistant, and weatherproof construction makes it suitable for challenging environments. Additional highlights include accurate fiber alignment with visible core display and a 3-year warranty for long-term reliability.
Specifications
| Alignment Method | Core Alignment |
| Applicable Fiber Type | SM(G.652 & G.657), MM(G.651), DS(G.653), NZDS(G.655) |
| Compatible Fiber/Cable | 0.25~3.0mm / Rubber-insulated fiber cable |
| Fiber Holder | 3-IN-1 Fiber Holder |
| Fiber Diameter | Cladding: 80–150µm, Coating: 100–1000µm |
| Fiber Cleave Length | 8–16mm |
| Splicing Mode | Max 128 modes |
| Typical Splice Loss | SM: 0.02dB / MM: 0.01dB / DS: 0.04dB / NZDS: 0.04dB / G.657: 0.02dB |
| Return Loss | >60dB |
| Splicing Time | Quick: 8 sec / Average: 15 sec |
| Estimated Splice Loss | Available |
| Heating Time | Quick Mode: 18 sec (adjustable) |
| Protection Sleeve Length | 20mm, 30mm, 40mm, 50mm, 60mm |
| Heat Programs | Max 32 modes |
| Battery | 6800mAh, ~300 Cycles per Charge |
| Electrode Life | 5000 arcs (extendable with grinder) |
| Auto-start | Splice / Heating |
| Automatic ARC Calibration | By air pressure and temperature |
| Result Storage | 10,000 records & 2,000 images |
| Tension Test | 1.96–2.25N |
| Operating Condition | Altitude 0–5000m, -20~50°C, 0–95% RH, Wind ≤15m/s |
| Storage Condition | -20~60°C, 0–95% RH |
| Display | 4.3-inch capacitive touch screen |
| Fiber Magnification | X, Y, XY, X/Y: 320X |
| Power Supply | AC 100–240V / DC 9–14V |
| Terminal | USB 2.0 |
| Weight | 1.6kg (w/o battery) / 1.9kg (with battery) |
| Dimensions | 143H × 136W × 155D mm (incl. rubber bumper) |

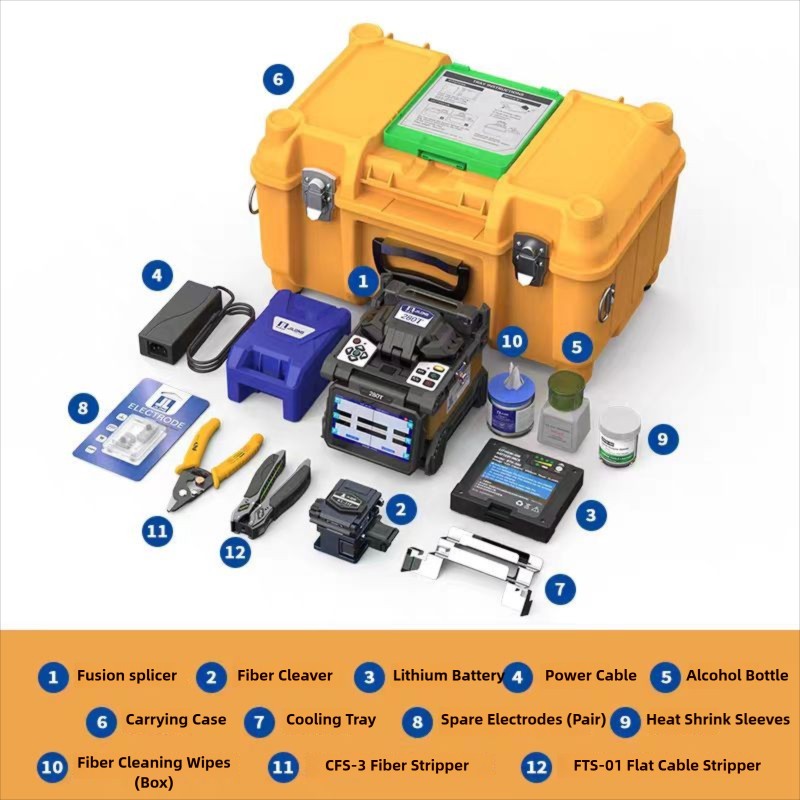

Product List
