C Band Fixed Gain EDFA Mini Module, 17dB Gain
◎ P/N: 115833
◎ Attention: For a formal quote, please send product details to [email protected].
Delivery: Order today and it will be shipped before from the U.S. or Hong Kong via FedEx/DHL/UPS. Free shipping on orders over US$200.
Warranty: Fiber-Life offers a 1-year warranty, 30-day returns, and 30-day exchanges.
$2,571.00

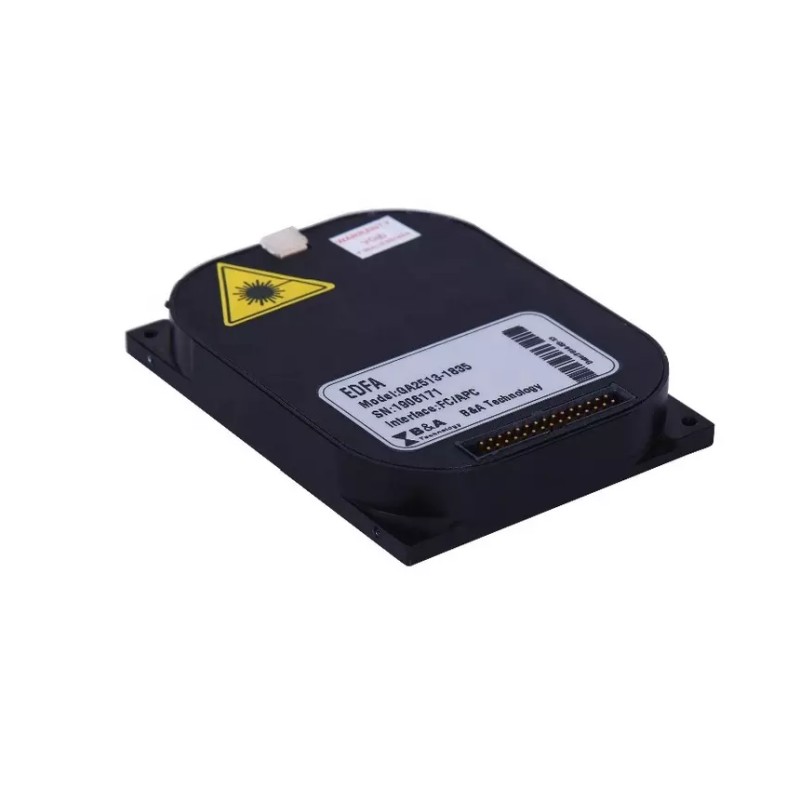

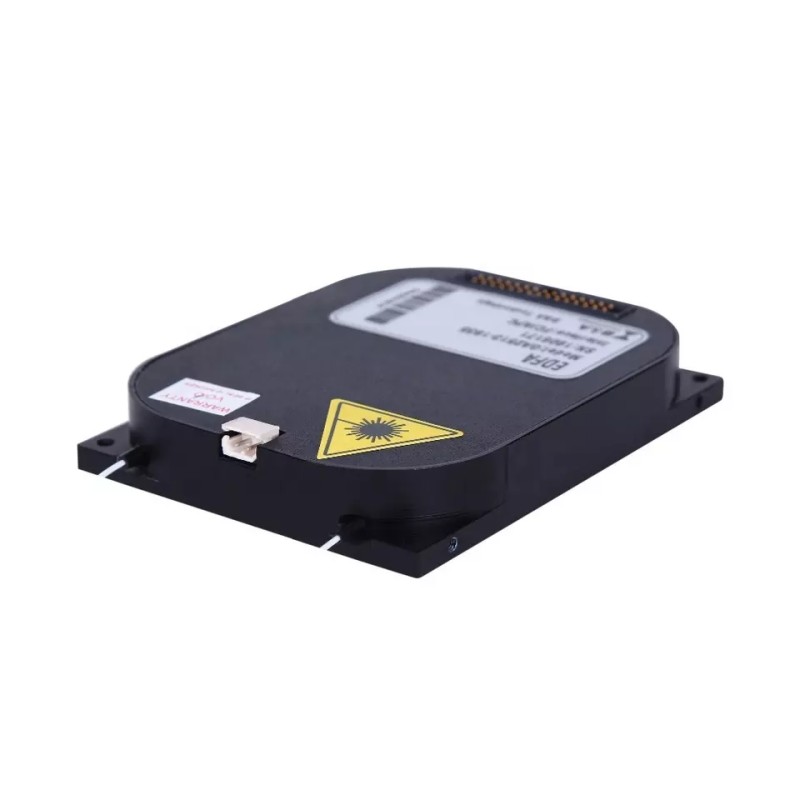

C Band Fixed Gain EDFA Mini Module, 17dB Gain
C Band Fixed Gain EDFA Mini Module, 17dB Gain is a compact and high-reliability erbium-doped fiber amplifier designed for stable signal amplification in DWDM C-band systems. This mini module delivers a fixed optical gain of 17 dB, ensuring consistent signal enhancement across varying input power levels. Featuring a built-in high-reliability pump laser and advanced APC (Automatic Power Control), AGC (Automatic Gain Control), and ACC (Automatic Current Control) modes, it provides precise control and optimal performance for booster, pre-amplifier, or in-line configurations.
Housed in a miniature 70×90 mm MSA-compliant package, the module is ideal for space-constrained applications in metro, access, and backbone optical networks. It offers low noise figure, fast transient response, and robust operation under Telcordia GR-1312 compliance.
Fiber-Life provides custom options for connector type, fiber length, control interface, and mounting configuration. For special requirements, please contact [email protected].
Specifications
| Parameter | Min | Typ | Max | Units | |
| Wavelength Range | 1528 | – | 1568 | nm | |
| Saturated Output Power | – | – | 20 | dBm | |
| Input Power | -10 | – | 10 | dBm | |
| Fixed Gain | – | 17 | – | dB | |
| Noise Figure | – | – | 6 | dB | |
| Flatness | – | 1.5 | – | dB | |
| Output Power Stability | – | ±0.05 | ±0.1 | dB | |
| Return Loss | 45 | – | – | dB | |
| Polarization Mode Dispersion | – | – | 0.3 | ps | |
| Polarization Dependent Gain | – | – | 0.3 | dB | |
| Dimension (W × L × H) | 70 × 90 × 15 | mm | |||
| Pigtail Length | 1 or Specify | m | |||
| Pigtail Diameter | 900 | μm | |||
| Connector | LC/SC/FC/ST/APC/UPC | ||||
Dimension Drawing (Unit: mm)
