FC/UPC To FC/UPC Simplex Singlemode/Multimode Square Solid Type Two Pieces Metal Fiber Optic Adapter With Flange
◎ P/N: 119761
◎ Attention: For a formal quote, please send product details to [email protected].
Delivery: Order today and it will be shipped before from the U.S. or Hong Kong via FedEx/DHL/UPS. Free shipping on orders over US$200.
Warranty: Fiber-Life offers a 1-year warranty, 30-day returns, and 30-day exchanges.
Price range: $1.50 through $8.50
FC/UPC To FC/UPC Simplex Singlemode/Multimode Square Solid Type Two Pieces Metal Fiber Optic Adapter With Flange
The FC/UPC to FC/UPC Simplex Singlemode/Multimode Square Solid Type Two Pieces Metal Fiber Optic Adapter with Flange is designed to provide precise, stable, and low-loss interconnection between two FC/UPC connectors. Constructed with a two-piece solid metal housing, this adapter offers enhanced structural rigidity, excellent durability, and easy assembly or maintenance.
Featuring a zirconia ceramic alignment sleeve, it ensures accurate fiber core alignment, low insertion loss, and high repeatability for both singlemode and multimode fibers. The flanged square design enables secure mounting on panels or fiber distribution frames (FDFs), providing firm mechanical stability even in high-density environments.
With its nickel-plated metal body, the adapter delivers superior resistance to wear, corrosion, and vibration, making it ideal for telecommunication networks, fiber optic measurement instruments, and laboratory applications where reliable optical connectivity is essential.
Specifications
| Connector A | FC/UPC | Connector B | FC/UPC |
| Body Style | Simplex | Fiber Mode | Singlemode/Multimode |
| Insertion Loss | ≤0.2dB | Durability | 1000 Times |
| Flammability Rate | UL 94V-0 | Working Temperature | -25 ~ +70°C |

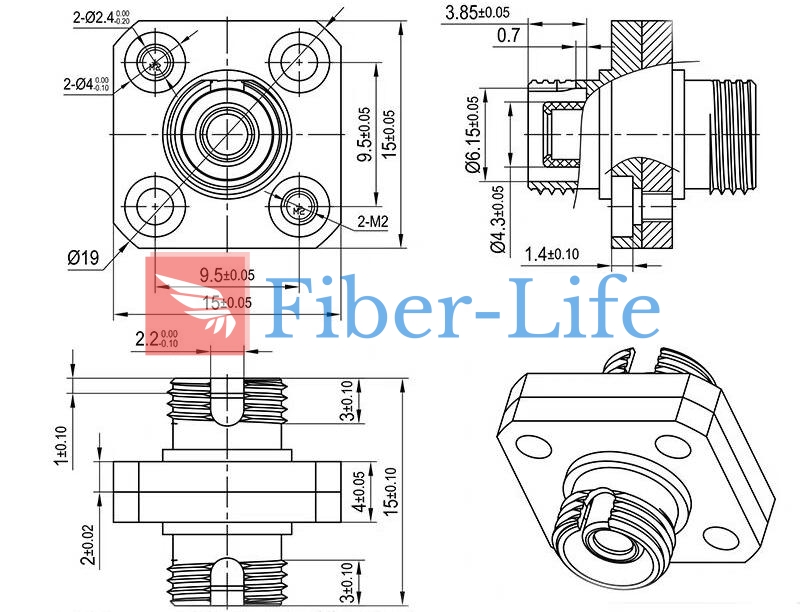

Dimension Drawing (Unit: mm)
