1×16 1310/1550nm ABS Box Polarization Maintaining PLC Splitter Slow Axis Working

1×16 1310/1550nm ABS Box Polarization Maintaining PLC Splitter Slow Axis Working

The 1×16 1310/1550nm ABS Box Polarization Maintaining PLC Splitter (Slow Axis Working) is a precision optical component designed for high-performance polarization-maintaining fiber systems. It uses a Planar Lightwave Circuit (PLC) chip fabricated with advanced lithography technology to ensure excellent optical uniformity, low insertion loss, and high wavelength stability across the 1310nm and 1550nm operating wavelengths.

Housed in a compact and robust ABS box, this splitter provides strong protection, easy handling, and superior environmental reliability. The slow-axis working configuration ensures that the polarization direction remains stable throughout the splitting process, making it ideal for polarization-sensitive applications such as coherent communication, fiber optic sensors, interferometric systems, and precision test equipment.

With a high extinction ratio (≥18dB), return loss ≥50dB, and low polarization-dependent loss, the splitter guarantees consistent optical performance under varying temperature and humidity conditions, offering long-term stability and reliability in both laboratory and field environments.

Specifications

Note: For device with connector, IL is 0.3dB higher, RL is 5dB lower, ER is 2dB lower.

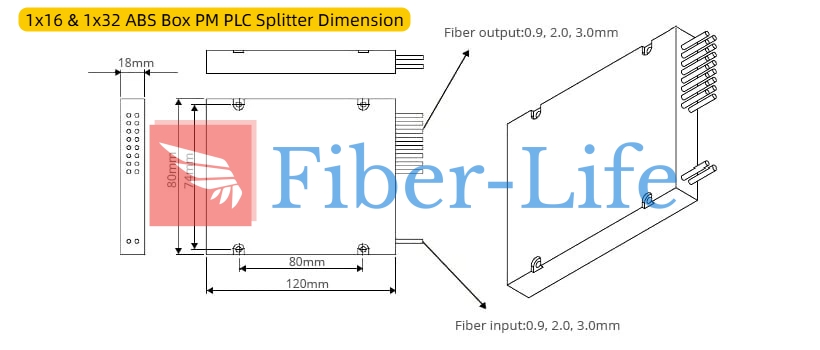

Dimension Drawing (Unit: mm)
