1×2 Polarization Maintaining DWDM Single Channel 100Ghz Channel Spacing
◎ P/N: 22310
◎ Attention: For a formal quote, please send product details to [email protected].
Delivery: Order today and it will be shipped before from the U.S. or Hong Kong via FedEx/DHL/UPS. Free shipping on orders over US$200.
Warranty: Fiber-Life offers a 1-year warranty, 30-day returns, and 30-day exchanges.
Price range: $483.73 through $683.73
1×2 Polarization Maintaining DWDM Single Channel 100Ghz Channel Spacing
The 1×2 Polarization Maintaining Dense Wavelength Division Multiplexing (PM DWDM) Single Channel with 100GHz Channel Spacing is a high-performance passive optical device designed for optical communication systems. Utilizing polarization-maintaining (PM) fiber, this device enables precise wavelength multiplexing and demultiplexing on a single channel with 100GHz spacing while maintaining the input light’s polarization state. Its low insertion loss, high isolation, and low polarization-dependent loss (PDL) make it an ideal choice for high-precision optical communication, coherent optical transmission, fiber sensing, and quantum communication applications. It is widely used in ITU-standard DWDM systems, ensuring excellent signal quality and system reliability.
Specifications
| Parameter | Value | |
|---|---|---|
| Channel Wavelength | ITU Grid | |
| Channel Spacing | 100GHz | 200GHz |
| Bandwidth (@-0.5dB) | ≥0.22nm | ≥0.5nm |
| Pass Channel Insertion Loss (@23℃) | ≤1.0dB | |
| Reflection Channel Insertion Loss (@23℃) | ≤0.4dB | |
| Channel Ripple | ≤0.5dB | |
| Extinction Ratio (@23℃) | ≥18dB | |
| Adjacent Channel Isolation | >30dB | |
| Non-Adjacent Channel Isolation | >40dB | |
| Reflection Channel Isolation | >12dB | |
| Directivity | >45dB | |
| Return Loss | >45dB | |
| Power Handling | 300mW or Custom | |
| Operating Temperature | -5°C ~ +70°C | |
| Storage Temperature | -40°C ~ +85°C | |
| Package Dimension (250μm, 900μm) | Φ5.5mm x L38mm (Steel Tube) | |
Note: For device with connector, IL is 0.3dB higher, RL is 5dB lower, ER is 2dB lower.
| Features | Applications |
|---|---|
| Low Insertion Loss | Fiber Sensing |
| Wide Pass Band | Coherent Optics |
| High Channel Isolation | Fiber Laser |
| Epoxy-Free on Optical Path | PM EDFA |
| High Stability and Reliability |

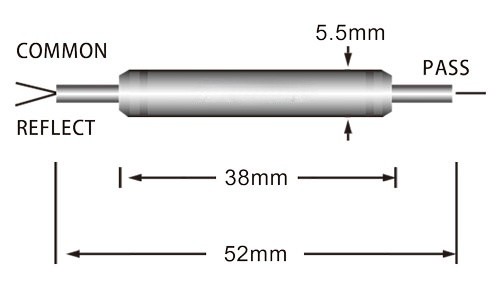

Dimension Drawing (Unit: mm)
Related Products
◎ P/N: 50134
◎ Attention: For a formal quote, please send product details to [email protected].
Delivery: Order today and it will be shipped before from the U.S. or Hong Kong via FedEx/DHL/UPS. Free shipping on orders over US$200.
Warranty: Fiber-Life offers a 1-year warranty, 30-day returns, and 30-day exchanges.
◎ P/N: 49897
◎ Attention: For a formal quote, please send product details to [email protected].
Delivery: Order today and it will be shipped before from the U.S. or Hong Kong via FedEx/DHL/UPS. Free shipping on orders over US$200.
Warranty: Fiber-Life offers a 1-year warranty, 30-day returns, and 30-day exchanges.
◎ P/N: 21885
◎ Attention: For a formal quote, please send product details to [email protected].
Delivery: Order today and it will be shipped before from the U.S. or Hong Kong via FedEx/DHL/UPS. Free shipping on orders over US$200.
Warranty: Fiber-Life offers a 1-year warranty, 30-day returns, and 30-day exchanges.
◎ P/N: 50052
◎ Attention: For a formal quote, please send product details to [email protected].
Delivery: Order today and it will be shipped before from the U.S. or Hong Kong via FedEx/DHL/UPS. Free shipping on orders over US$200.
Warranty: Fiber-Life offers a 1-year warranty, 30-day returns, and 30-day exchanges.
◎ P/N: 21908
◎ Attention: For a formal quote, please send product details to [email protected].
Delivery: Order today and it will be shipped before from the U.S. or Hong Kong via FedEx/DHL/UPS. Free shipping on orders over US$200.
Warranty: Fiber-Life offers a 1-year warranty, 30-day returns, and 30-day exchanges.
◎ P/N: 50199
◎ Attention: For a formal quote, please send product details to [email protected].
Delivery: Order today and it will be shipped before from the U.S. or Hong Kong via FedEx/DHL/UPS. Free shipping on orders over US$200.
Warranty: Fiber-Life offers a 1-year warranty, 30-day returns, and 30-day exchanges.
◎ P/N: 47509
◎ Attention: For a formal quote, please send product details to [email protected].
Delivery: Order today and it will be shipped before from the U.S. or Hong Kong via FedEx/DHL/UPS. Free shipping on orders over US$200.
Warranty: Fiber-Life offers a 1-year warranty, 30-day returns, and 30-day exchanges.
◎ P/N: 21302
◎ Attention: For a formal quote, please send product details to [email protected].
Delivery: Order today and it will be shipped before from the U.S. or Hong Kong via FedEx/DHL/UPS. Free shipping on orders over US$200.
Warranty: Fiber-Life offers a 1-year warranty, 30-day returns, and 30-day exchanges.
◎ P/N: 23800
◎ Attention: For a formal quote, please send product details to [email protected].
Delivery: Order today and it will be shipped before from the U.S. or Hong Kong via FedEx/DHL/UPS. Free shipping on orders over US$200.
Warranty: Fiber-Life offers a 1-year warranty, 30-day returns, and 30-day exchanges.
◎ P/N: 50206
◎ Attention: For a formal quote, please send product details to [email protected].
Delivery: Order today and it will be shipped before from the U.S. or Hong Kong via FedEx/DHL/UPS. Free shipping on orders over US$200.
Warranty: Fiber-Life offers a 1-year warranty, 30-day returns, and 30-day exchanges.
◎ P/N: 31665
◎ Attention: For a formal quote, please send product details to [email protected].
Delivery: Order today and it will be shipped before from the U.S. or Hong Kong via FedEx/DHL/UPS. Free shipping on orders over US$200.
Warranty: Fiber-Life offers a 1-year warranty, 30-day returns, and 30-day exchanges.
◎ P/N: 24715
◎ Attention: For a formal quote, please send product details to [email protected].
Delivery: Order today and it will be shipped before from the U.S. or Hong Kong via FedEx/DHL/UPS. Free shipping on orders over US$200.
Warranty: Fiber-Life offers a 1-year warranty, 30-day returns, and 30-day exchanges.
Barry Richardson –

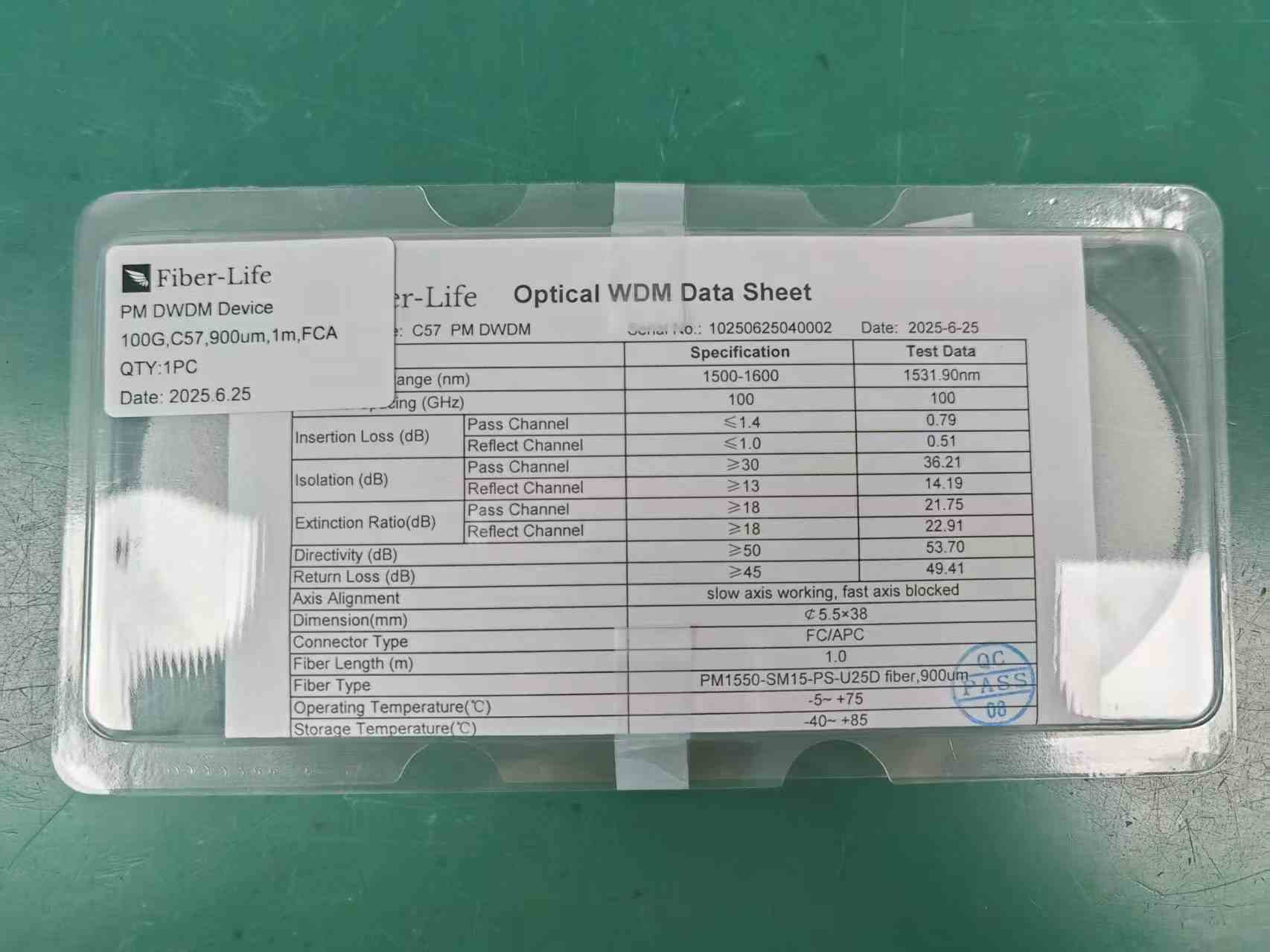

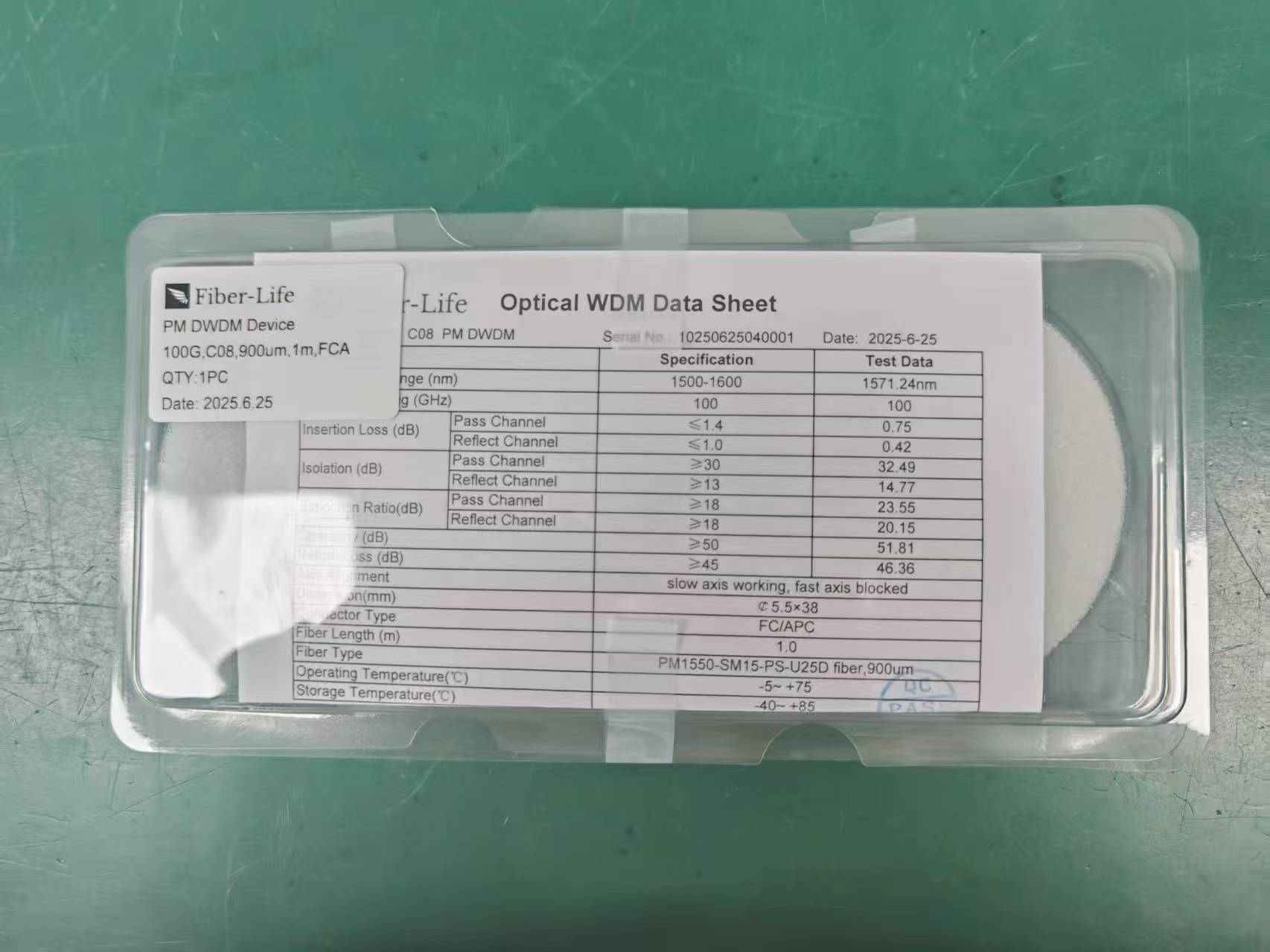

I purchased two 1×2 PM DWDM modules with different wavelengths — one C08 and one C57. Both perform very well and are working reliably in our lab setup. Very satisfied with the quality.
