1xN MEMS Optical Switch

Name: 1xN MEMS Optical Switch
SKU: 63287
Availability: InStock

◎ P/N: 63287

◎ Attention: For a formal quote, please send product details to [email protected].

Delivery: Order today and it will be shipped before from the U.S. or Hong Kong via FedEx/DHL/UPS. Free shipping on orders over US$200.

Warranty: Fiber-Life offers a 1-year warranty, 30-day returns, and 30-day exchanges.

Price range: $489.00 through $3,864.00

Channel

Wavelength

Fiber Type

Fiber Length

Cable Diameter

Connector

Dimension

Clear

Custom Details

Product total

Options total

Grand total

1xN MEMS Optical Switch

The 1×N MEMS Optical Switch is a high-performance optical switching device based on Micro-Electro-Mechanical System (MEMS) technology. It is available in various channel configurations, including 1×4, 1×8, 1×16, 1×32, and other custom channel counts, enabling flexible optical signal routing from a single input port to multiple output ports.

This MEMS-based switch features low insertion loss, excellent repeatability, and high reliability, making it ideal for applications in optical network monitoring, fiber sensing, instrumentation, and data center automation.
The device provides fast switching time (≤15 ms) and long mechanical durability exceeding 10⁹ cycles, ensuring stable performance even under demanding environments.

Both single-mode and multimode versions are available, covering O/C/L/L+ bands or 850 nm / 1310 nm wavelengths. The switch offers high isolation (≥50 dB), low polarization dependence (≤0.15 dB), and a wide operating temperature range from –20 °C to +85 °C.

Different form factors (M1–M5) and fiber options (bare fiber or loose tube) are supported, along with various connector types such as FC/SC/LC/MPO, making integration convenient for OEM system design.

Specifications

Parameter	Value
Fiber Mode	SM		MM
Center Wavelength	1310/1550/1625/1650nm		850/1310nm
Operating Wavelength Range	O/C/L/L+ band		850±30nm/1310±30nm
Insertion Loss	@CWL Single-band ≤0.8dB (N≤8) ≤1.0dB (8<N≤16) ≤1.3dB (16<N≤32) ≤1.5dB (32<N≤64) ≤2.0dB (64<N≤144) ≤2.2dB (144<N≤256)	@CWL Dual-band ≤1.0dB (N≤8) ≤1.2dB (8<N≤16) ≤1.5dB (16<N≤32) ≤1.7dB (32<N≤64) ≤2.2dB (64<N≤144) ≤2.4dB (144<N≤256)	@CWL Single-band ≤0.8dB (N≤12) ≤1.0dB (12<N≤16) ≤1.8dB (16<N≤128)	@CWL Dual-band ≤1.0dB (N≤12) ≤1.2dB (12<N≤16) ≤2.0dB (16<N≤128)
WDL	≤0.3dB (N≤64) ≤0.4dB (64<N≤144) ≤0.5dB (144<N≤256)		≤0.3dB (N≤16) ≤0.4dB (16<N≤128)
PDL	≤0.15dB		≤0.2dB
Return Loss	≥45dB		≥30dB
Crosstalk	≥50dB		≥30dB
Repeatability	≤±0.05dB
Switching Time	≤15ms
Durability	≥10⁹ Times
Input Optical Power	≤500mW
Operating Voltage	DC 5V±10%
Operating Current	≤50mA (N≤16) ≤250mA (16<N≤64) ≤350mA (64<N≤144) ≤500mA (144<N≤256)		≤50mA (N≤16) ≤250mA (16<N≤64) ≤350mA (64<N≤128)
Operating Temperature	-20 ~ 85°C
Storage Temperature	-40 ~ 85°C

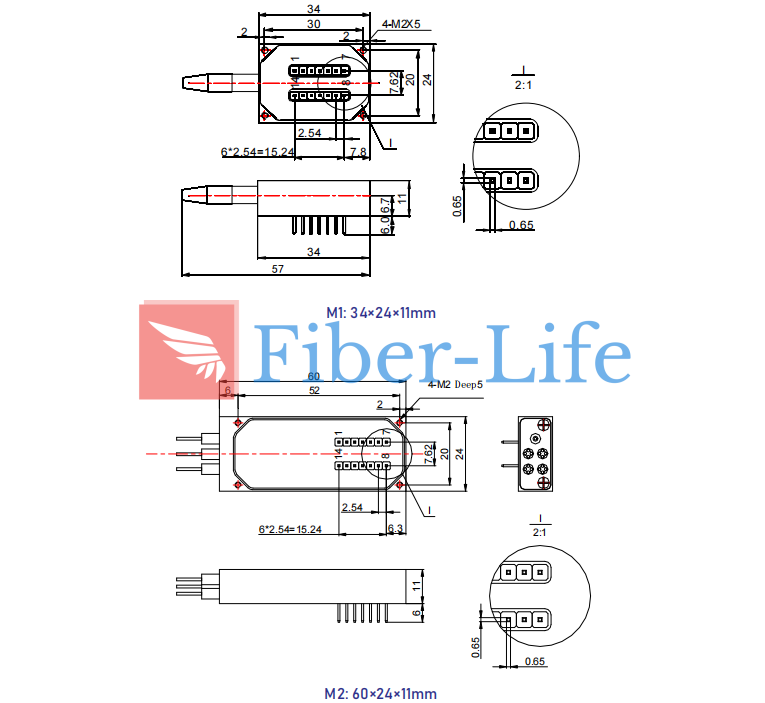

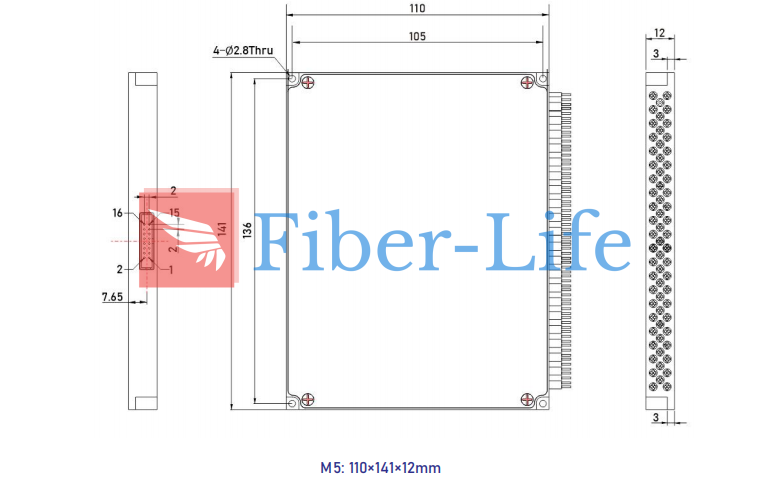

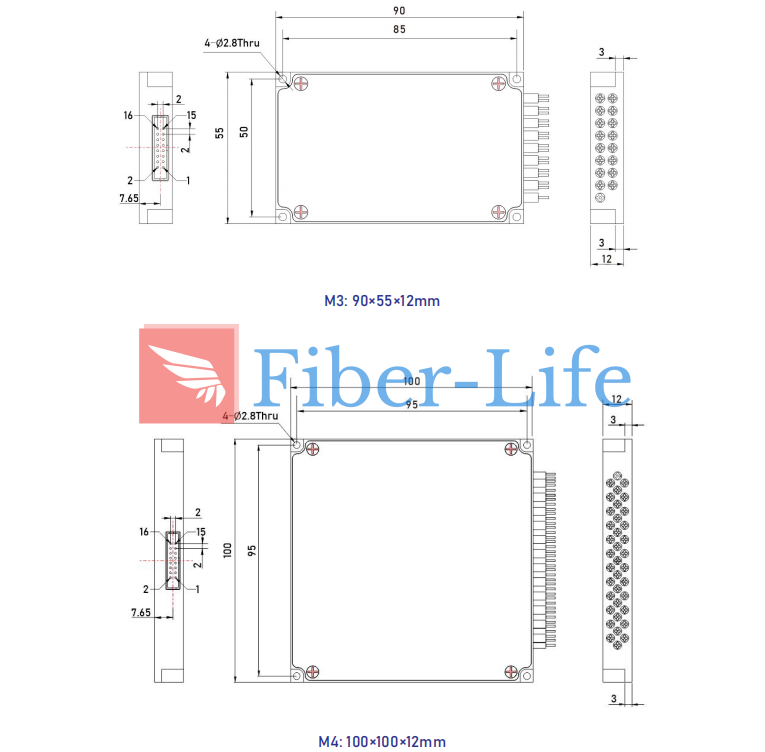

Dimension (L×W×H)	M1: 34×24×11mm (N≤64, Bare Fiber) M2: 60×24×11mm (N≤16, Loose Tube) M3: 90×55×12mm (16<N≤64, Loose Tube) M4: 100×100×12mm (64<N≤144, Loose Tube) M5: 110×141×12mm (144<N≤256, Loose Tube)		M1: 34×24×11mm (N≤16, Bare Fiber) M2: 60×24×11mm (N≤16, Loose Tube) M3: 90×55×12mm (16<N≤64, Loose Tube) M4: 100×100×12mm (64<N≤128, Loose Tube)

Notes:

Within operating temperature and all SOP.
Excluding connector.
WDL is measured in a ±20nm range at 23°C.

Pin Configuration

Pin No.		Pin Assignment	Signal Type	Description
M1/M2	M3/M4/M5	Pin Assignment	Signal Type	Description
5	1	D0	Input	Data bit (D0) (low-order)
	2	D5	Input	Data bit (D5)
2	3	VCC	Power	Power Supply (DC 5V, 1.0A)
	4	D7	Input	Data bit (D7) (high-order)
	5	D6	Input	Data bit (D6)
4	6	GND	Power	GND
	7	D4	Input	Data bit (D4)
6	8	D1	Input	Data bit (D1)
9	9	TXD	Output	Data Transmit (TTL Level)
10	10	RXD	Input	Data Receive (TTL Level)
7	11	D2	Input	Data bit (D2)
8	12	D3	Input	Data bit (D3)
12	13	/BUSY	Output	Low level means ready to reset or receiving data
	14	/ALARM	Output	High level means running error
3	15	/STROBE	Input	Falling edge execution data bit
14	16	/RESET	Input	Low level reset to channel 0
11		GND	Power	GND
13		MODE		Low level: data bit control switch. High level: UART control switch
1		NC		No connection

Notes:

The electrical interfaces of M3, M4 and M5 modules is Molex 87833-1620. Molex 87568-1694 connector is recommended.
Only the serial port is available if the number of channels exceeds 16 when using M1 and M2.
