Why a 50-Centimeter Cable Demands More Engineering Rigor Than a 50-Kilometer Trunk
Picture this: A technician closes a splice closure after a 12-hour FTTH deployment. The OTDR trace looks clean. The link passes. Three months later, the customer reports intermittent drops that clear themselves before diagnostics can run. The culprit? A pigtail with a 0.08 dB splice that drifted to 0.4 dB because the fiber wasn’t routed correctly in the splice tray, creating a micro-bend under thermal cycling.
This is the paradox of the fiber optic pigtail. It is the shortest cable in your network—typically 0.5 to 2 meters—yet it is the only component that requires permanent fusion splicing, making it irreversible and unforgiving. Unlike patch cords, which can be swapped in seconds, a failed pigtail means reopening an enclosure, re-cleaving, re-fusing, and re-testing. Get it right the first time, and it outlasts the equipment it connects. Get it wrong, and it becomes a latency ghost that haunts your network for years.
This guide treats the pigtail not as a commodity, but as a precision termination system. We will dissect the splicing physics, expose the specification traps invisible to most buyers, and provide a field-proven selection framework.

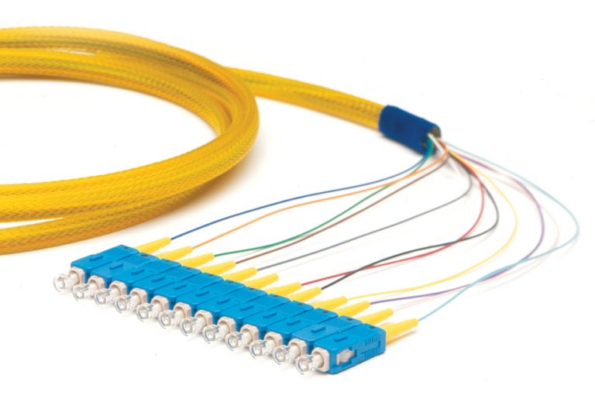

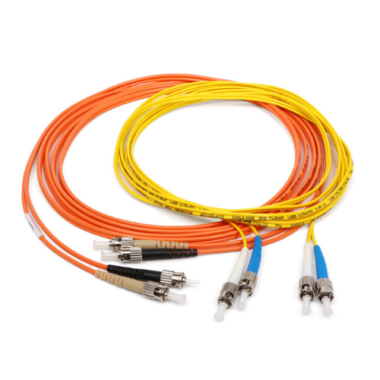

What Is a Fiber Optic Pigtail? (And What It Is Not)
A fiber optic pigtail is a short, tight-buffered optical fiber with a factory-terminated connector on one end and an unterminated bare fiber on the other. The bare end is fusion-spliced to a trunk fiber, creating a permanent, low-loss transition from the field cable to a standard connector interface.

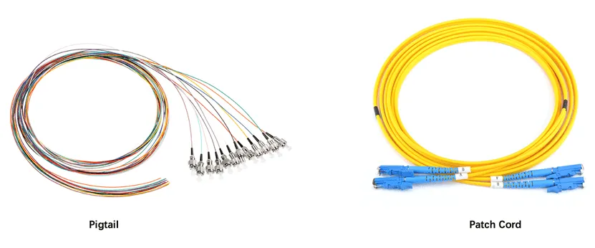

Pigtail vs. Patch Cord: The Engineering Distinction
| Attribute | Fiber Pigtail | Fiber Patch Cord |
|---|---|---|
| Termination | One connector; one bare fiber end | Two connectors |
| Connection method | Fusion splice (permanent) | Mating adapter (reversible) |
| Typical IL contribution | 0.05–0.10 dB (splice) + 0.10–0.20 dB (connector) | 0.20–0.50 dB (mated pair) |
| Reusability | Single-use; splice is permanent | Fully reusable; 500–1,000+ mating cycles |
| Primary location | Splice closures, ODFs, FTTH terminals, AI server backplanes | Patch panels, switch-to-switch links, test equipment |
| Loss budget impact | Lower per-connection; ideal for tight budgets | Higher; acceptable where flexibility is required |
Critical Insight: In a 40 km single-mode link with a total loss budget of 28 dB, every 0.1 dB matters. A pigtail with a fusion splice consumes 0.15 dB total. A patch cord through an intermediate adapter consumes 0.40 dB. In high-channel-count DWDM systems, that 0.25 dB difference can be the margin between stable operation and BER (Bit Error Rate) cliffs.

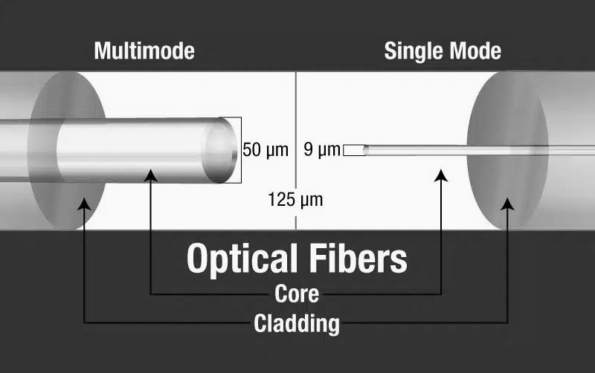

Fiber Modes and Standards: Choose Once, Live With It Forever
Because pigtails are spliced permanently, the fiber mode decision is irreversible without cutting and re-splicing.
Single-Mode Pigtails: The Long-Haul Default
- Core/Cladding: 9/125 µm
- Standards: OS1 (tight-buffered, indoor), OS2 (loose-tube, ≤0.18 dB/km at 1550 nm)
- Wavelengths: 1310 nm (dispersion-optimized), 1550 nm (attenuation-optimized), 1625 nm (monitoring)
- Typical splice loss: 0.01–0.05 dB (fusion), 0.20–0.50 dB (mechanical)
2026 Reality Check: Modern OS2 pigtails increasingly use G.657.A2 bend-insensitive fiber as standard. In crowded splice trays where 12 or 24 fibers must coil within a 30 mm radius, standard G.652.D fiber will develop micro-bending loss. G.657.A2 tolerates 7.5 mm bend radii with <0.1 dB penalty—essential for high-density ODFs and AI cluster trunks.
Multimode Pigtails: The Data Center Workhorse
| Standard | Core | 850 nm BW | 1300 nm BW | 10G Reach | 40/100G Reach | Jacket Color |
|---|---|---|---|---|---|---|
| OM1 | 62.5 µm | 200 MHz·km | 500 MHz·km | 33 m | Unsupported | Orange |
| OM2 | 50 µm | 500 MHz·km | 500 MHz·km | 82 m | Unsupported | Orange |
| OM3 | 50 µm | 2,000 MHz·km | 500 MHz·km | 300 m | 100 m | Aqua |
| OM4 | 50 µm | 4,700 MHz·km | 500 MHz·km | 550 m | 150 m | Aqua |
| OM5 | 50 µm | 28,000 MHz·km (SWDM) | 500 MHz·km | 550 m | 150 m (+ SWDM) | Lime Green |
The OM5 Nuance: OM5 is not merely “faster OM4.” It is engineered for Short-Wavelength Division Multiplexing (SWDM), supporting four simultaneous wavelengths (850/880/910/940 nm) over a single fiber. In pigtail form, OM5 is specified when the trunk is OM5 and the transceiver uses SWDM4 (e.g., 100G-SWDM4). Splicing an OM3 pigtail to an OM5 trunk creates a modal bandwidth bottleneck that nullifies the SWDM investment.
The 62.5 µm Trap: Never splice a 50 µm pigtail (OM2/OM3/OM4/OM5) to a 62.5 µm trunk (OM1). The mode-field diameter mismatch creates a 2–4 dB loss at the junction—enough to kill a 10G link entirely.
Connector and Polish: The Decision That Determines Reflection Fate
The factory-terminated end of a pigtail must match the ecosystem’s reflectance requirements. Unlike patch cords, which can be swapped, a pigtail’s polish type is locked in once spliced.
UPC vs. APC: A Physics Choice, Not an Aesthetic One
| Polish | End Face Geometry | Return Loss | Best For | Never Use With |
|---|---|---|---|---|
| UPC | Domed, 0° angle | ≥ 50 dB | Digital Ethernet, data center links, LANs | APC mates |
| APC | Domed, 8° angle | ≥ 60 dB | PON networks, CATV/RFoG, DWDM, analog systems | UPC mates |
Why PON Demands APC: GPON, XGS-PON, and NG-PON2 transmit three wavelengths (1270/1310 nm upstream, 1490/1577 nm downstream) simultaneously. Back-reflection from a UPC connector (−14 dB typical reflection) creates interference in the WDM filters and raises the laser’s relative intensity noise (RIN). The ITU-T G.984 standard explicitly specifies APC at ONT and splitter ports. A green APC pigtail spliced to a trunk in an FTTH terminal box is non-negotiable.
The Color Code: APC connectors are green. UPC connectors are blue (single-mode) or beige/aqua (multimode). This is not branding—it is a safety standard (TIA-598-C). A technician mating a blue UPC adapter to a green APC pigtail will destroy both ferrules and create a permanent high-loss junction.
Connector Types by Application
| Connector | Ferrule | Best For | Pigtail Context |
|---|---|---|---|
| LC | 1.25 mm ceramic | High-density ODFs, SFP/QSFP ports | 144 ports/RU; dominates data center and AI backplane terminations |
| SC | 2.5 mm ceramic | Telecom ODFs, PON splitters, GPON ONTs | Snap-in pull-proof; standard for FTTH and outdoor enclosures |
| FC | 2.5 mm metal | Test equipment, industrial controls, vibration zones | Threaded coupling resists loosening in railway and factory environments |
| ST | 2.5 mm metal | Legacy multimode, industrial Ethernet (PROFINET) | Bayonet twist-lock; declining but still required for retrofits |
| E2000 | 2.5 mm with shutter | Medical, high-power lasers, cleanrooms | Integrated dust cap prevents contamination during unmated storage |
Fiber Count and Configuration: From Simplex to Ribbon
| Configuration | Fiber Count | Typical Use Case | Splice Tray Consideration |
|---|---|---|---|
| Simplex | 1 | FTTH drop, sensor leads, unidirectional video | Minimal; 1 splice sleeve per pigtail |
| Duplex | 2 | Ethernet bi-directional (Tx/Rx), switch uplinks | Requires polarity management (A/B fiber tracking) |
| 4-fiber | 4 | Legacy Token Ring, some industrial buses | Rare in modern deployments |
| 6-fiber | 6 | Small breakout cables, building backbones | Compact ribbon or bunch design |
| 12-fiber | 12 | Data center MPO/MTP breakouts, telecom distribution | Ribbon pigtails enable mass fusion splicing (all 12 fibers in one splice cycle) |
| 24-fiber | 24 | High-density ODFs, 400G/800G parallel optics | Requires large-format splice trays; G.657.A2 bend tolerance critical |
Mass Fusion Splicing: A 12-fiber ribbon pigtail can be spliced to a 12-fiber trunk ribbon in a single automated cycle. A Fujikura 90R mass fusion splicer completes all 12 fibers in ~90 seconds with average losses of 0.05 dB. For a 1,000-fiber data center deployment, this reduces splicing time from weeks to days.
Splicing Methods: Fusion vs. Mechanical
The bare end of the pigtail must be joined to the field fiber. The method chosen determines the link’s long-term stability.

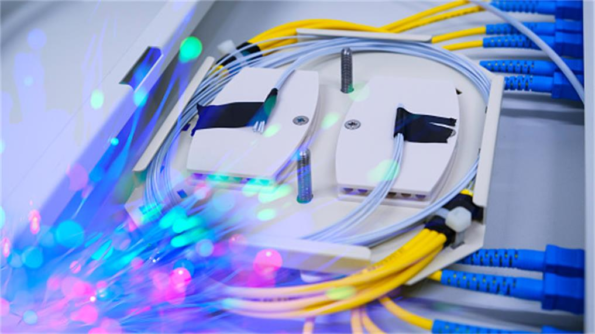

Fusion Splicing: The Gold Standard
An electric arc melts the cleaved fiber ends together, creating a seamless glass joint.
- Insertion loss: 0.01–0.05 dB (single-mode), 0.05–0.10 dB (multimode)
- Return loss: >60 dB (effectively zero reflection)
- Strength: 200,000+ psi tensile strength after heat-shrink protection
- Time: 2–5 minutes per fiber (including prep)
Field Best Practice: Always verify splice loss with the splicer’s estimated loss reading, then confirm with an OTDR from both ends (bidirectional testing). A splice that reads 0.02 dB in one direction may read 0.08 dB in the reverse due to fiber geometry mismatches (core eccentricity, cladding non-circularity).
Mechanical Splicing: The Emergency Option
An index-matching gel sleeve aligns cleaved fibers under spring pressure.
- Insertion loss: 0.20–0.50 dB
- Return loss: ~35–45 dB (gel interface creates reflection)
- Best for: Emergency repairs, temporary connections, locations without power for a fusion splicer
- Not for: Single-mode long-haul, PON networks, or any link with <3 dB power margin
Critical Specifications: What the Datasheet Doesn’t Tell You
Insertion Loss (IL): The Splice-Plus-Connector Total
A pigtail’s total contribution to link loss is:
Total Pigtail Loss = Connector IL + Splice IL + Excess Fiber Loss
| Component | Target | Acceptable Limit |
|---|---|---|
| Factory connector IL | ≤ 0.10 dB | ≤ 0.20 dB |
| Fusion splice IL | ≤ 0.05 dB | ≤ 0.10 dB |
| Mechanical splice IL | ≤ 0.30 dB | ≤ 0.50 dB |
| Total (fusion) | ≤ 0.15 dB | ≤ 0.30 dB |
| Total (mechanical) | ≤ 0.40 dB | ≤ 0.70 dB |
Budget Engineering: In a 10G EPON link with 28 dB total budget, the drop segment might allow only 2.5 dB. If your pigtail+splice consumes 0.3 dB and your splitters consume 14 dB, you have 13.7 dB for the 20 km fiber run. A 0.5 dB pigtail loss would force you to shorten the run by 2.5 km.
Return Loss (RL): The Silent Killer of Analog and Coherent Systems
- Digital Ethernet (10G/25G/100G): UPC with ≥ 50 dB RL is sufficient
- PON with RF video overlay (1550 nm): APC with ≥ 60 dB RL is mandatory; video QAM signals are highly sensitive to multipath interference from reflections
- Coherent DWDM (100G/400G ZR): APC throughout; transceiver DSPs can tolerate only −26 dB reflectance, and a dirty UPC connector can produce −14 dB
Environmental and Mechanical Ratings
| Parameter | Commercial Grade | Industrial Grade | Telecom/Outdoor Grade |
|---|---|---|---|
| Operating temp | -10°C to +60°C | -25°C to +70°C | -40°C to +85°C |
| Storage temp | -20°C to +70°C | -40°C to +85°C | -40°C to +85°C |
| Humidity | 85% RH | 95% RH | 95% RH, condensing |
| Jacket | PVC (OFNR) | LSZH (IEC 60332) | PE/UV-resistant, armored |
The Temperature Trap: Standard acrylate-coated pigtails soften above +85°C. In automotive underhood sensing or oil-well monitoring, specify polyimide-coated fiber rated to +300°C. A standard pigtail in a +120°C enclosure will experience coating creep, shifting the splice point and creating micro-bending loss.
Applications: Context Dictates Construction

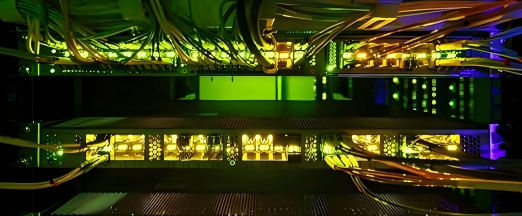

FTTH and PON Networks: The Green APC Mandate
In GPON/XGS-PON deployments, single-mode SC/APC pigtails are spliced to the distribution fiber in the closure, with the connector end plugged into the splitter or ODF. Key requirements:
- Color coding: Green boots and adapters prevent UPC mismating
- Length: 0.5 m to 1.5 m standard; order 2 m+ if re-work is anticipated
- Splice protection: 60 mm heat-shrink sleeves with steel rod reinforcement
- OTDR verification: 1310/1550/1625 nm testing; 1625 nm reveals bend losses invisible at 1550 nm

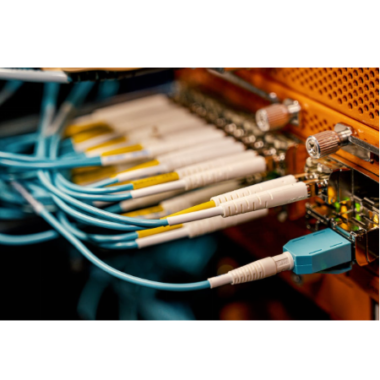

Data Centers: Density and Polarity Discipline
High-density ODFs use LC/UPC pigtails (or LC/APC if coherent optics are present). In 400G/800G parallel optics:
- MPO breakout pigtails: A 12-fiber MPO trunk is spliced to 12 individual LC pigtails in a breakout panel
- Polarity: TIA-568.3-D Method B (key-up to key-down) is standard for data centers; verify pigtail polarity matches the trunk polarity before splicing
- Bend radius: G.657.A2 fiber is essential; standard G.652.D will fail when coiled in 1U panels with 144 LC ports
Industrial and Sensing: Survival of the Fittest
Factory automation, power grid monitoring, and pipeline sensing use armored or waterproof pigtails:
- Armored: Interlocked stainless steel jacket resists crush loads >1,000 N/cm and rodent damage
- Waterproof: IP68-rated with gel-filled connectors for submerged or manhole deployments
- EMI immunity: Fiber is inherently immune to electromagnetic interference, but the metal armor must be grounded at one end only to prevent ground loops
Selection Framework: The Six-Step Pigtail Decision Tree
Step 1: Define the Link Budget and Loss Margin
Calculate total allowable loss from transceiver specifications. Subtract fiber attenuation, splitter loss, and connector losses. The remainder is your pigtail+splice budget. If <0.3 dB, fusion splicing with premium pigtails is mandatory.
Step 2: Match Fiber Mode Exactly
- Single-mode trunk → OS2 pigtail (specify G.657.A2 for high-density)
- Multimode trunk → Match OM grade exactly (OM3 trunk → OM3 pigtail)
- Never mix 62.5 µm and 50 µm
Step 3: Select Polish Type Based on System Architecture
- Digital only, no analog overlay → UPC acceptable
- PON, CATV, DWDM, or coherent optics → APC mandatory
- When in doubt, specify APC—UPC adapters cannot accept APC connectors, but APC adapters can physically accept UPC (though performance suffers)
Step 4: Choose Connector for Density and Environment
- High-density indoor → LC
- Telecom/FTTH outdoor → SC
- Vibration/Industrial → FC
- Legacy retrofit → ST
Step 5: Specify Jacket and Coating for the Environment
| Environment | Jacket | Coating | Notes |
|---|---|---|---|
| Office/data center | LSZH or PVC | Standard acrylate | OFNP for plenum spaces |
| Outdoor telecom | PE, UV-resistant | Standard acrylate | Armored if in conduit with power cables |
| Industrial/factory | Armored TPU | Standard acrylate | Ground armor at one end |
| High-temp (>85°C) | Metal-braided | Polyimide | Oil wells, engine bays |
| Submerged/wet | IP68 gel-filled | Standard acrylate | Marine, manholes |
Step 6: Demand Test Documentation
Insist on factory test reports showing:
- Individual insertion loss per connector (not batch averages)
- Return loss values
- 3D interferometry data (ferrule radius of curvature, apex offset, fiber height)
- IEC 61300-3-35 end-face inspection images (400× magnification)
The Seven Deadly Sins of Pigtail Deployment
- Mixing APC and UPC in the Same Adapter The 8° angle on APC creates an air gap against a flat UPC face, producing >3 dB loss and chipping the ceramic ferrule. Both connectors are destroyed.
- Skipping End-Face Inspection Before Splicing A factory-shipped pigtail can have dust, oil, or plastic residue from packaging. IEC 61300-3-35 mandates 200–400× inspection. A single 5 µm dust particle on the core can add 1–5 dB loss.
- Violating Bend Radius in the Splice Tray Coiling a pigtail to a 5 mm radius to make it fit “just this once” creates permanent micro-fractures. Under thermal cycling, the attenuation will drift upward unpredictably.
- Using Mechanical Splices for Single-Mode Long-Haul The 0.30–0.50 dB loss of a mechanical splice consumes 10–15% of a typical 3 dB margin. In DWDM systems, this is catastrophic.
- Ignoring Polarity in Duplex and Ribbon Pigtails Swapping Tx and Rx in a duplex pigtail pair creates a loopback. In a 12-fiber ribbon, misaligning fiber #1 to trunk fiber #2 cascades errors across the entire MPO breakout.
- Specifying Indoor-Rated Pigtails for Outdoor Use PVC jackets degrade under UV exposure and become brittle below −10°C. An indoor pigtail in an outdoor closure will crack within one winter, allowing moisture ingress that corrodes the splice.
- The “Good Enough” Procurement Trap A $0.80 pigtail from an unverified supplier may use recycled ferrules with inconsistent concentricity. In a 1,000-splice FTTH project, 5% failure rate means 50 truck rolls. Premium pigtails cost $2–$4 each. The cost of one truck roll exceeds the entire pigtail budget.
Summary: The Pigtail as a System Foundation
The fiber optic pigtail is not a consumable. It is a permanent optical interface that bridges the precision of factory termination with the harsh reality of field installation. Its splice point is invisible once the closure is sealed, making it the highest-stakes connection in the entire link.
The right pigtail preserves your loss budget, eliminates reflection-induced noise, and survives decades of thermal cycling. The wrong pigtail becomes a latent defect—impossible to diagnose remotely, expensive to remediate, and damaging to customer trust.
In an era where 10G PON, 400G data centers, and coherent DWDM define the performance baseline, the pigtail’s 0.15 dB contribution is no longer negligible. It is a system-critical parameter that demands the same engineering rigor as your transceivers, amplifiers, and fiber trunks.
