MPO-to-LC Breakout Cable: Types, Applications and Selection Guide

Modern data centers need to connect high-density optical ports to large numbers of conventional LC interfaces without creating unmanageable bundles of individual patch cords.

An MPO-to-LC breakout cable provides this transition by combining several fibers at the MPO end and separating them into individual LC connectors or duplex LC channels at the opposite end.

These assemblies are widely used for:

40G-to-4×10G breakout
100G-to-4×25G breakout
High-density backbone distribution
Patch-panel and cassette connectivity
Switch-to-server connections
Storage-area networks
Laboratory and equipment integration

However, an MPO-to-LC cable is not universally compatible with every MPO port. Fiber count, active lane assignment, connector gender, polarity, key orientation and polish type must match the optical transceiver and network architecture.

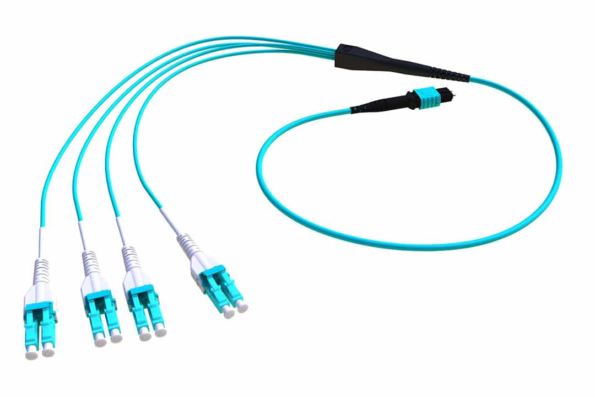

What Is an MPO-to-LC Cable?

An MPO-to-LC cable is a pre-terminated multi-fiber assembly with:

One or more MPO connectors at one end
Multiple LC simplex or duplex connectors at the other end

The MPO end consolidates multiple fibers into a compact interface. The LC ends separate those fibers into channels that can connect to conventional LC transceivers, adapters or patch-panel ports.

A typical assembly may be described as:

MPO-12 to 4 duplex LC
MPO-12 to 6 duplex LC
MPO-12 to 12 simplex LC
MPO-16 to 8 duplex LC
MPO-24 to 12 duplex LC

These configurations are not interchangeable. The correct design depends on the number of active fibers and the lane mapping required by the connected equipment.

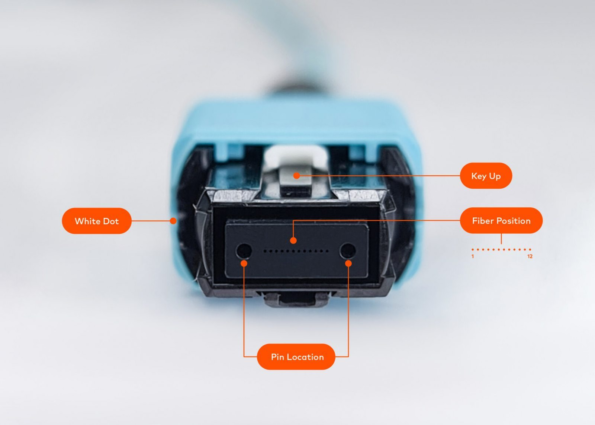

What Does MPO Mean?

MPO stands for Multifiber Push-On.

An MPO connector aligns several optical fibers inside a rectangular MT ferrule. Common interfaces include MPO-8, MPO-12, MPO-16 and MPO-24 configurations.

A high-fiber-count cable such as a 48-, 72- or 144-fiber trunk normally uses several MPO connectors or subunits. It does not place every fiber inside one ferrule.

For example, a commercial 144-fiber MPO trunk may contain twelve 12-fiber subunits with twelve MPO-12 connectors at each end.

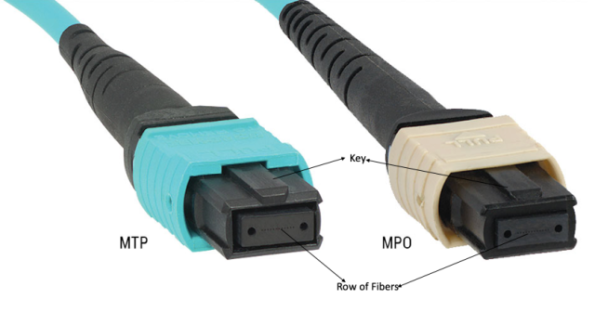

MPO vs. MTP

MPO is the generic multi-fiber connector interface.

MTP is a registered connector brand developed by US Conec. It is designed as a higher-performance MPO connector and complies with relevant MPO interface standards.

A standards-compliant MTP connector can mate with a compatible generic MPO connector, provided that the following parameters match:

Fiber count
Connector gender
Key orientation
End-face polish
Physical interface
Application polarity

MTP should therefore be described as a type of MPO connector rather than as a completely separate interface.

MPO-to-LC Cable vs. MPO Trunk Cable

These two products serve different purposes.

Feature	MPO-to-LC Breakout Cable	MPO Trunk Cable
End A	MPO	MPO
End B	Multiple LC connectors	MPO
Primary function	Separate MPO fibers into LC channels	Connect two high-density MPO points
Common installation	Equipment breakout and patching	Backbone and panel-to-panel connection
Typical fiber counts	8, 12, 16 or 24 per breakout group	12 to several hundred total fibers
Equipment connection	Can connect directly to LC ports	Usually connects panels, cassettes or MPO transceivers

A trunk carries multiple fibers between two distribution locations. A breakout cable converts those fibers into individual equipment-facing connections.

Common MPO-to-LC Configurations

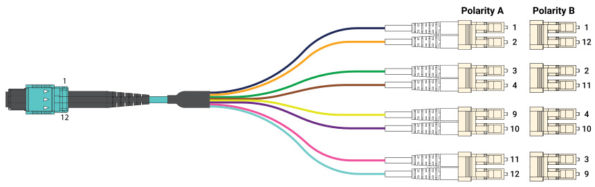

MPO-12 to Four Duplex LC

This configuration uses:

One MPO-12 ferrule
Eight active fibers
Four duplex LC connectors

The four center positions of the MPO-12 ferrule are normally unused in an SR4 application.

Typical uses include:

40GBASE-SR4 to four 10GBASE-SR ports
100GBASE-SR4 to four 25GBASE-SR ports
40G or 100G parallel single-mode breakout where compatible optics are used

Cisco documents 40GBASE-SR4 breakout through an external MPO parallel-to-duplex cable connecting one 40G port to four 10G optical interfaces. Compatible 100G SR4 platforms can similarly use an MPO-12-to-4×LC assembly for 4×25G breakout.

The switch, optical module and operating software must all support breakout mode. A passive cable cannot independently convert one Ethernet rate into another.

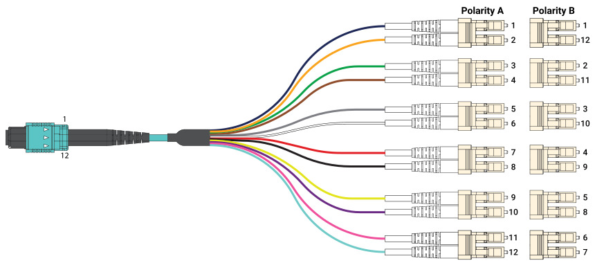

MPO-12 to Six Duplex LC

This assembly uses all twelve fibers as six duplex LC channels.

It may be used for:

Six independent duplex links
High-density panel distribution
Equipment fan-out
Custom optical systems

It should not be confused with an SR4 breakout cable, which normally uses only eight active fibers and four duplex LC channels.

MPO-12 to Twelve Duplex LC

This configuration separates every fiber into an individual simplex LC connector.

It can be useful for:

Custom transmit-only or receive-only systems
Optical monitoring
Test equipment
Sensor systems
Non-standard channel assignments

The labeling and mapping of every LC leg must be clearly documented.

MPO-16 to Eight Duplex LC

An MPO-16 assembly contains sixteen active fiber positions and can be divided into eight duplex LC channels.

This format may be associated with eight-lane parallel-optics applications. For example, some 400GBASE-SR8 modules use an MPO-16 interface and can support specific breakout configurations.

MPO-16 has a different key position and ferrule layout from conventional MPO-12 and MPO-24 connectors. It should not be treated as mechanically interchangeable with them.

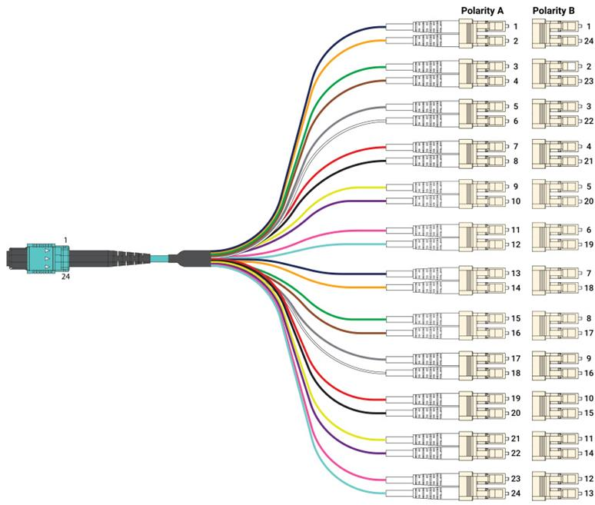

MPO-24 to Twelve Duplex LC

An MPO-24 assembly can be separated into twelve duplex LC channels.

It is used in:

High-density patch-panel systems
Multiple duplex equipment connections
Consolidated backbone distribution
Dual SR4 or similar grouped-channel applications

The specific channel mapping must be confirmed because MPO-24 assemblies can be wired in different ways.

How 40G-to-4×10G Breakout Works

A conventional 40GBASE-SR4 interface contains:

Four 10G transmit lanes
Four 10G receive lanes
Eight active fibers

Although the module uses an MPO-12 connector, only the outer eight fiber positions are used. The middle four positions remain unused.

An MPO-12-to-4×duplex-LC cable maps each transmit-and-receive pair to one 10G LC duplex channel.

The final architecture is:

One 40G QSFP+ port → Four 10G SFP+ ports

Cisco notes that only specific 40G modules support 4×10G breakout. Some SR4 variants support native 40G operation but do not support breakout, so the transceiver datasheet must be checked before ordering the cable.

How 100G-to-4×25G Breakout Works

A conventional 100GBASE-SR4 interface uses:

Four 25G transmit lanes
Four 25G receive lanes
Eight active fibers

An MPO-12-to-4×duplex-LC breakout cable can connect a compatible 100G QSFP28 port to four 25G SFP28 ports.

The final architecture is:

One 100G QSFP28 port → Four 25G SFP28 ports

The host platform must support 4×25G port breakout, and the optical modules at both ends must be interoperable. Cisco lists MPO-12-to-4×LC external MMF and SMF breakout configurations for supported 100G SR4 and PSM4 optics.

Does an MPO-to-LC Cable Support 400G?

It depends on the optical interface.

“400G” alone does not determine the connector or cable type. Current 400G modules may use:

Optical Interface	Typical Fiber Interface
400GBASE-SR8	MPO-16 multimode
400GBASE-DR4	MPO-12 single-mode
400GBASE-SR4.2	MPO-12 multimode
400GBASE-FR4	Duplex LC single-mode
400G BiDi	Duplex LC multimode
4×100G breakout optics	MPO-12 with four duplex branches

Cisco’s current 400G portfolio includes MPO-16, MPO-12 and duplex-LC products, demonstrating that there is no universal “400G MPO-to-LC cable.”

Always select the cable from the exact optical module part number and breakout matrix.

Main Applications

1. High-Density Equipment Breakout

MPO-to-LC cables allow one high-density MPO interface to serve several LC-based ports.

This is useful in:

Top-of-rack designs
Middle-of-row designs
End-of-row architectures
Spine-and-leaf networks
Storage systems
High-performance computing clusters

A properly designed breakout reduces the number of full-length individual LC patch cords that must be routed through the cable pathway.

2. Patch-Panel and Cassette Connections

An MPO trunk may run between two racks or distribution areas. At the equipment end, an MPO-to-LC harness or cassette converts the trunk into individual LC ports.

Two common approaches are:

Direct Harness

The MPO trunk connects directly to an MPO-to-LC breakout assembly.

Advantages:

Fewer connection points
Potentially lower total insertion loss
Compact installation

Cassette-Based System

The MPO trunk connects to a cassette containing internal MPO-to-LC fan-out.

Advantages:

Protected internal fibers
Standardized front-panel LC ports
Easier patching and labeling
Modular moves, additions and changes

The preferred approach depends on accessibility, density, loss budget and maintenance procedures.

3. Switch-to-Server Connectivity

A breakout cable may connect one high-speed switch port to several lower-speed server or network-adapter ports.

For example:

40G QSFP+ to four 10G SFP+
100G QSFP28 to four 25G SFP28
400G QSFP-DD to four 100G ports with compatible optics

Support must be confirmed in the switch configuration and transceiver interoperability documentation.

4. Laboratory and Test Systems

MPO-to-LC fan-out cables are also used to access individual fibers for:

Transceiver characterization
Optical power measurement
BER testing
Channel mapping
Optical component testing
Parallel-optics research

Clearly numbered LC legs are particularly important in these applications.

Advantages of MPO-to-LC Breakout Cables

High Connection Density

Several fiber channels are consolidated into one MPO connector, reducing the number of connectors required on the high-density side.

Faster Pre-Terminated Deployment

The assembly is terminated, polished and tested at the factory. Installation normally involves routing, mating and verifying the cable rather than performing field termination.

The actual labor saving depends on the network design and should not be expressed as a universal percentage.

Simplified Cable Routing

A single grouped assembly can be easier to route than multiple unrelated patch cords.

Benefits may include:

Reduced pathway congestion
Cleaner rack layout
Consistent breakout-leg lengths
Easier channel identification
Lower risk of routing the wrong individual cable

Flexible Equipment Migration

A correctly designed trunk-and-breakout system can support changes between native parallel connections and lower-rate LC connections.

This provides migration flexibility, but it does not guarantee compatibility with every future optical standard.

Factory-Controlled Optical Performance

Professional assemblies can be supplied with:

Insertion-loss test results
Return-loss results
Polarity verification
Channel-mapping documentation
End-face inspection
Serial-number traceability

Performance must be evaluated using the stated test method and exact connector configuration.

Important Limitations

Not Every MPO Port Supports Breakout

An MPO connector only defines the physical interface. The transceiver and switch must support the desired lane separation.

Polarity Can Be Complex

A cable with the correct connector types can still fail if its transmit and receive lanes are mapped incorrectly.

MPO Connectors Require Careful Cleaning

One contaminated MPO ferrule can affect several fibers simultaneously.

Breakout Legs Need Mechanical Protection

Individual LC legs are smaller and more vulnerable than the main cable body. Poor routing can place excessive tension on the fan-out point.

Upgrades May Require Cable Replacement

Changing from MPO-12 to MPO-16, changing fiber mode or adopting a different channel mapping may require a new cable assembly.

How to Select an MPO-to-LC Cable

1. Identify the Exact Optical Modules

Do not order from the Ethernet speed alone.

Record:

Switch model
Port type
Transceiver part number
Remote transceiver
Supported breakout mode
Required distance

A 100G SR4 module and a 100G LR4 module both carry 100G, but the former may use MPO while the latter commonly uses duplex LC.

2. Confirm the Fiber Type

Multimode

Common categories include:

For standard Cisco SR4 examples:

40GBASE-SR4 supports up to 100 m over OM3 and 150 m over OM4 or OM5.
100GBASE-SR4 commonly supports up to 70 m over OM3 and 100 m over OM4.

Actual reach must be taken from the exact transceiver datasheet.

Single-Mode

OS2 assemblies are used with compatible parallel single-mode interfaces such as:

PSM4
DR4
Parallel LR
Custom multi-channel systems

Single-mode MPO connectors may require an angled end face, depending on the transceiver specification. Cisco’s breakout guidance identifies angled MPO end faces for several single-mode parallel-optics applications.

3. Confirm the Active Fiber Count

Do not assume that an MPO-12 port uses all twelve positions.

Examples:

40GBASE-SR4: eight active fibers
100GBASE-SR4: eight active fibers
Six duplex LC channels: twelve active fibers
400GBASE-SR8: sixteen active fibers

The cable must match the active-lane arrangement rather than only the connector name.

4. Confirm MPO Gender

MPO connectors are available as:

Male, with guide pins
Female, without guide pins

A mated pair normally requires one male and one female connector.

Many pluggable optical modules have pinned MPO interfaces and therefore require a female cable connector, but the equipment specification must always be checked.

Two male connectors should not be mated because their guide pins interfere. Two female connectors lack the pins required for controlled ferrule alignment.

5. Confirm Polarity and Channel Mapping

The cable must connect transmitter lanes at one end to receiver lanes at the other.

Relevant details may include:

Method A, B or C
Straight or reversed array
Key-up or key-down orientation
Transmit and receive positions
Custom breakout mapping
LC leg numbering

For a direct MPO-to-MPO SR4 link, Method B is commonly used. An MPO-to-LC harness uses an application-specific fan-out map and should be ordered according to the transceiver pinout rather than by polarity terminology alone.

6. Confirm UPC or APC Polish

Common possibilities include:

MPO/UPC
MPO/APC
LC/UPC
LC/APC

UPC and APC end faces must not be directly mated.

Parallel single-mode optics frequently use angled MPO interfaces, while multimode SR applications generally use UPC MPO interfaces. The exact module datasheet remains the controlling requirement.

7. Specify Breakout-Leg Construction

Confirm:

Number of LC legs
Simplex or duplex LC format
Individual leg length
Equal or staggered legs
Leg diameter
Label sequence
Pulling-eye requirement
Fan-out protection
Boot orientation

Staggered breakout lengths may improve routing when LC ports are arranged in different positions across a switch or patch panel.

8. Review the Optical Loss Budget

The complete link may include:

MPO connector pairs
LC connector pairs
Trunks
Breakout cables
Cassettes
Splices
Patch panels

Each connection adds loss.

Do not rely on universal values such as “0.3 dB for LC and 0.5 dB for MPO.” Standard-loss and low-loss products have different limits, and actual results depend on the fiber mode, polish and test method.

Request measured insertion-loss results for every channel when the loss budget is tight.

9. Select the Correct Jacket Rating

LSZH, Riser and Plenum should be specified separately.

LSZH

Low Smoke Zero Halogen describes a jacket designed to limit smoke and halogen emissions under specified fire tests.

Riser

Riser-rated cable is intended for vertical building pathways under the applicable regional code.

Plenum

Plenum-rated cable is designed for environmental air-handling spaces and is held to stricter flame- and smoke-performance requirements in markets where that classification applies.

Fire requirements vary by country and region. A generic LSZH jacket is not automatically approved for a North American plenum space.

10. Request Testing and Documentation

For critical data center installations, request:

Per-fiber insertion-loss report
Return-loss report for single-mode assemblies
Polarity and channel map
End-face inspection results
Fiber and connector specification
Jacket and fire-rating documentation
Serial-number labels
Packing and reel information

Common Selection Mistakes

Assuming MPO-12 Means Twelve Active Fibers

SR4 applications normally use eight active positions.

Ordering the Wrong Number of LC Connectors

A 40G SR4 breakout normally requires four duplex LC connectors, not twelve simplex connectors.

Ignoring Equipment Breakout Support

The cable cannot make an unsupported switch port operate as four independent ports.

Confusing Total Cable Fiber Count With Connector Fiber Count

A 144-fiber trunk normally contains multiple MPO connectors or subunits.

Mixing Male and Female MPO Connectors Incorrectly

Guide-pin configuration must match the module, adapter or mating cable.

Mixing UPC and APC Interfaces

The different end-face geometries can cause high loss, reflection and connector damage.

Using the Wrong Polarity

Incorrect lane mapping may produce no link even when every connector fits physically.

Treating LSZH as a Universal Building Rating

Fire and smoke requirements depend on the exact standard and installation region.

Assuming the Cable Is Automatically Future-Proof

Future optics may use MPO-12, MPO-16, MPO-24, duplex LC, CS, SN or other interfaces.

Frequently Asked Questions

Is an MPO-to-LC cable the same as an MPO trunk?

No.

An MPO-to-LC cable breaks a multi-fiber MPO interface into LC channels. An MPO trunk has MPO connectors at both ends.

How many LC connectors are used with MPO-12?

It depends on the application.

Possible configurations include:

Four duplex LC connectors using eight active fibers
Six duplex LC connectors using twelve fibers
Twelve simplex LC connectors using twelve fibers

Why does a 12-position MPO use only eight fibers in SR4?

SR4 requires four transmit lanes and four receive lanes. The four central MPO-12 positions are unused.

Can a 40G port connect to four 10G ports?

Yes, when the switch and 40G optical module support 4×10G breakout and the correct MPO-to-4×LC cable is used.

Can a 100G port connect to four 25G ports?

Yes, when the host platform and optics support 4×25G breakout.

Can MPO-to-LC support 400G?

Certain 400G breakout applications can use MPO-to-LC cables, but other 400G modules require MPO-16, native MPO-12 or duplex LC connections. Check the exact transceiver.

Is MTP better than MPO?

MTP is a high-performance branded MPO connector. Compatibility and performance still depend on the complete assembly and specification.

Should I choose OS2 or OM4?

Choose the fiber specified by the optical transceiver.

OM4 is widely used for short-reach multimode SR links. OS2 is used for parallel single-mode and longer-reach applications.

Is MPO-to-LC suitable for direct server connections?

Yes, provided that the switch port, server adapter, optical modules, fiber type and breakout mapping are compatible.

Does every high-fiber-count cable have one MPO connector?

No.

High-fiber-count trunks typically use several MPO connectors or subunits. A 144-fiber assembly may use twelve MPO-12 connectors at each end.

Conclusion

MPO-to-LC breakout cables provide an efficient transition between high-density parallel-fiber interfaces and conventional LC equipment ports.

Their primary value lies in:

Consolidating multiple fibers
Simplifying high-density routing
Supporting compatible 40G and 100G breakout
Reducing field termination
Providing clearly mapped, factory-tested channels

However, the connector shape alone does not determine compatibility. Before ordering, confirm:

Exact optical-module part numbers
Active fiber count
Single-mode or multimode fiber
MPO gender
Polarity and lane mapping
UPC or APC polish
LC quantity and leg configuration
Optical loss budget
Jacket and fire rating
Test-documentation requirements

Fiber-Life supplies customizable MPO-to-LC breakout cables with OS2, OM3, OM4 and OM5 fiber options. Available configurations can include MPO-8, MPO-12, MPO-16 and MPO-24 interfaces, simplex or duplex LC fan-outs, custom leg lengths, polarity mapping, low-loss connectors and application-specific jacket materials. Final cable construction should always be based on the exact transceiver interface and network topology.

Browse Categories
