1×4 Singlemode ABS Box PLC Splitter
◎ P/N: 109858
◎ Attention: For a formal quote, please send product details to sales@fiber-life.com.
Delivery: Order today and it will be shipped before from the U.S. or Hong Kong via FedEx/DHL/UPS. Free shipping on orders over US$200.
Warranty: Fiber-Life offers a 1-year warranty, 30-day returns, and 30-day exchanges.
$15.40

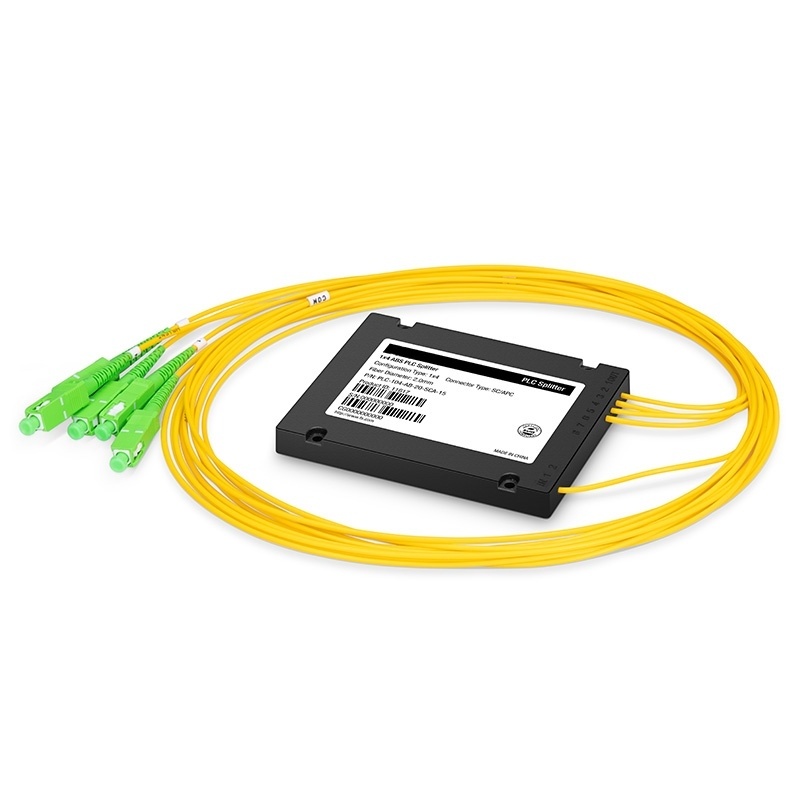

1×4 Singlemode ABS Box PLC Splitter
The 1×4 Singlemode ABS Box PLC Splitter is a high-performance optical device designed to evenly distribute optical signals from one input fiber to four output fibers in FTTx, PON, and CATV networks. Utilizing PLC (Planar Lightwave Circuit) technology, it ensures low insertion loss, high uniformity, and excellent stability across all output channels. Encased in a compact and durable ABS box, this splitter is ideal for indoor fiber distribution applications, offering easy installation, reliable performance, and long-term durability in various network environments.
Specifications
| Parameter | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
|---|---|---|---|---|---|---|
| Operating Wavelength | 1260nm ~ 1650nm | |||||
| Fiber Type | G657A1 | |||||
| Insertion Loss | ≤3.8dB | ≤7.2dB | ≤10.3dB | ≤13.5dB | ≤16.5dB | ≤20.5dB |
| Loss Uniformity | ≤0.4dB | ≤0.6dB | ≤0.8dB | ≤1.0dB | ≤1.5dB | ≤2.0dB |
| Polarization Dependent Loss | ≤0.2dB | ≤0.2dB | ≤0.2dB | ≤0.3dB | ≤0.3dB | ≤0.4dB |
| Return Loss | ≥50dB | |||||
| Directivity | ≥55dB | |||||
| Wavelength Dependent Loss | ≤0.5dB | ≤0.5dB | ≤0.5dB | ≤0.5dB | ≤1.0dB | ≤1.0dB |
| Fiber Length | 1m or Specify | |||||
| Temperature Stability | ≤0.5dB | |||||
| Operating Temperature | -20℃ ~ +85℃ | |||||
| Storage Temperature | -40℃ ~ +85℃ | |||||
| Maximum Power Handing | 500mW | |||||
| Dimension (L×W×H) | 100mm × 80mm × 10mm | 120mm × 80mm × 18mm | 140mm × 115mm × 18mm | |||
Note: Specified without connectors; add an additional 0.2dB loss per connector.
| Features | Applications |
|---|---|
| Low Insertion Loss | FTTX Systems |
| Low PDL | PON Networks |
| Compact Design | CATV Links |
| Good Channel-to-Channel Uniformity | Optical Signal Distribution |
| High Reliability and Stability |
Dimension Drawing (Unit: mm)
