2.5mm OD Ceramic Sleeve For SC FC ST Connector
2.5mm OD Ceramic Sleeve For SC FC ST Connector-2
2.5mm OD Ceramic Sleeve For SC FC ST Connector-4
2.5mm OD Ceramic Sleeve For SC FC ST Connector
2.5mm OD Ceramic Sleeve For SC FC ST Connector
2.5mm OD Ceramic Sleeve For SC FC ST Connector
2.5mm OD Ceramic Sleeve For SC FC ST Connector

2.5mm OD Ceramic Sleeve For SC/FC/ST Connector

ST Mating Sleeve Adapter Dust Caps

ST Mating Sleeve Adapter Dust Caps, 100pcs/pack

$13.00
8 sold in last 7 hours

◎ P/N: 110207

◎ Attention: For a formal quote, please send product details to sales@fiber-life.com.

DeliveryDelivery: Order today and it will be shipped before from the U.S. or Hong Kong via FedEx/DHL/UPS. Free shipping on orders over US$200.

WarrantyWarranty: Fiber-Life offers a 1-year warranty, 30-day returns, and 30-day exchanges.

  Share

$0.50

Product total
Options total
Grand total

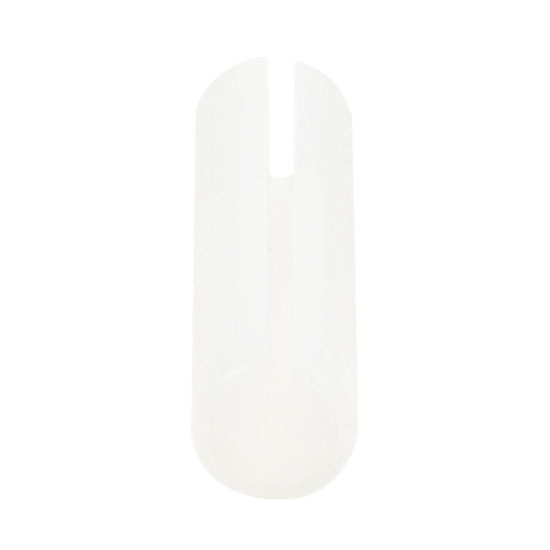

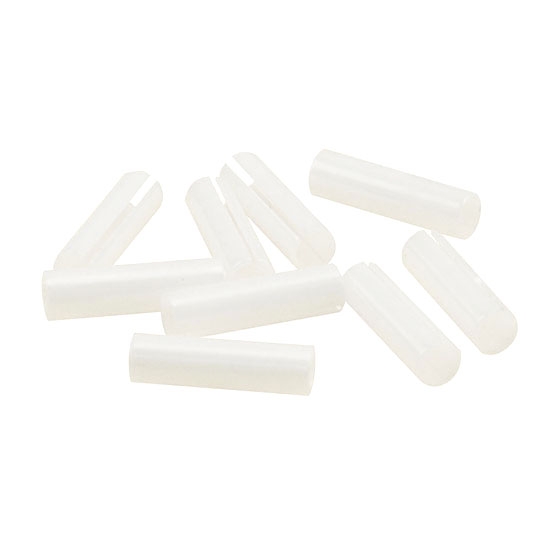

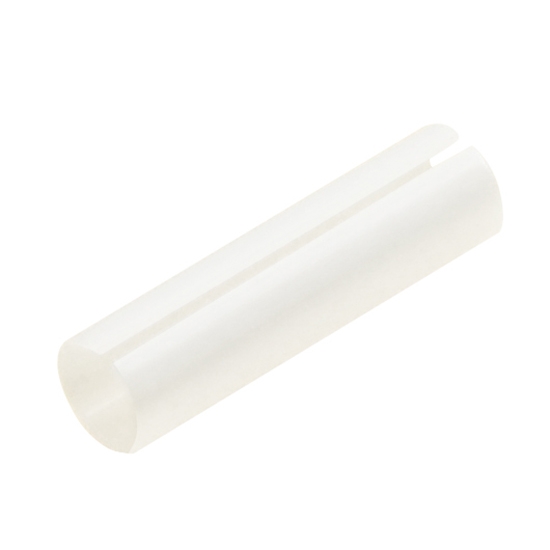

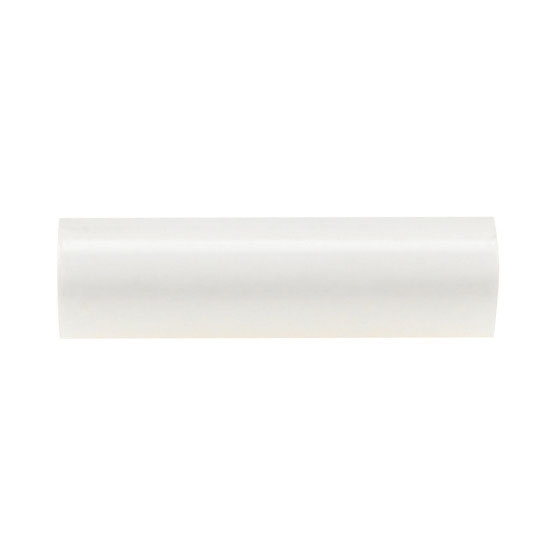

2.5mm OD Ceramic Sleeve For SC/FC/ST Connector

The 2.5mm OD Ceramic Sleeve for SC/FC/ST Connector is a precision-engineered alignment component designed for use in SC, FC, and ST fiber optic adapters. Manufactured from high-grade zirconia ceramic, this sleeve offers exceptional durability, high concentricity, and excellent optical performance. It ensures precise fiber alignment, resulting in low insertion loss and high return loss, even after repeated mating cycles. Compatible with both singlemode and multimode connectors, it is widely used in fiber patch panels, distribution units, and optical testing devices. An essential element for reliable and stable fiber connections in telecom and data center applications.

Specifications

Material Ceramic Connector Type 2.5mm SC/FC/ST Connector
Length 11.4 ± 0.1mm Split Width 0.5 ± 0.1mm
Outer Diameter 3.2 ± 0.02mm Inner Diameter 2.49mm
Chamfer 2 × R0.1 Pulling Force 2 ~ 5.9N
