1×4 Singlemode Mini Plug-In, Blade Module PLC Splitter
◎ P/N: 110317
◎ Attention: For a formal quote, please send product details to sales@fiber-life.com.
Delivery: Order today and it will be shipped before from the U.S. or Hong Kong via FedEx/DHL/UPS. Free shipping on orders over US$200.
Warranty: Fiber-Life offers a 1-year warranty, 30-day returns, and 30-day exchanges.
$14.80

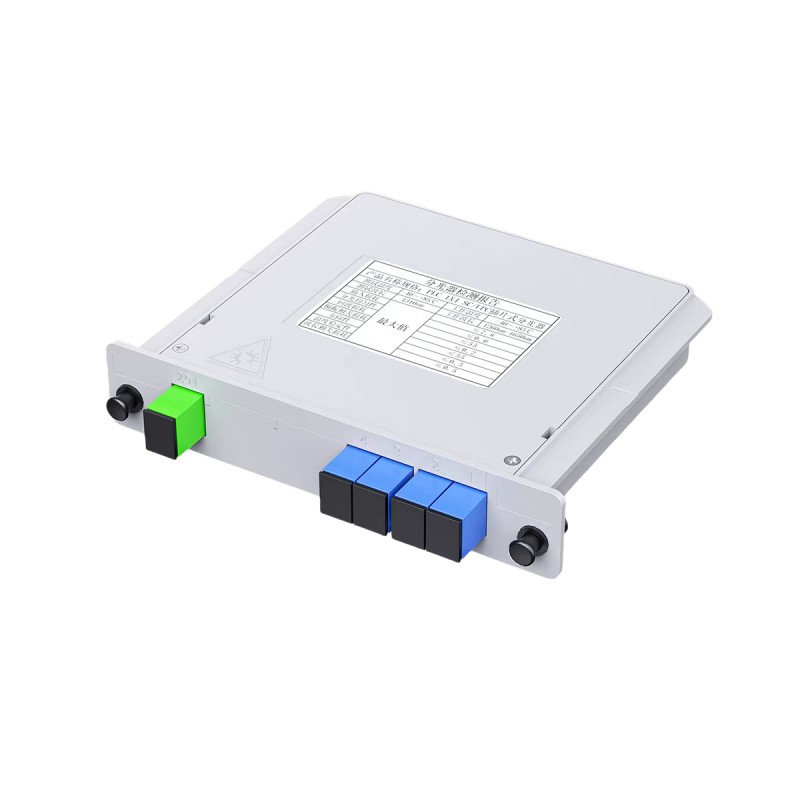

1×4 Singlemode Mini Plug-In, Blade Module PLC Splitter
1×4 Singlemode Mini Plug-In, Blade Module PLC Splitter is a high-performance optical splitter designed for fiber access networks and FTTH deployments. It uses PLC (Planar Lightwave Circuit) technology to evenly divide a single optical input into four outputs with low insertion loss, high splitting uniformity, and excellent environmental stability. The mini plug-in blade-style module offers a compact form factor that allows for easy integration into standard fiber distribution boxes or panels. Compatible with G.657A1/G.652D singlemode fibers, this splitter is ideal for applications requiring efficient signal distribution in space-limited environments.
Specifications
| Parameter | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
|---|---|---|---|---|---|---|
| Operating Wavelength | 1260nm ~ 1650nm | |||||
| Fiber Type | G657A1 | |||||
| Insertion Loss | ≤3.8dB | ≤7.2dB | ≤10.3dB | ≤13.5dB | ≤16.5dB | ≤20.5dB |
| Loss Uniformity | ≤0.4dB | ≤0.6dB | ≤0.8dB | ≤1.0dB | ≤1.5dB | ≤2.0dB |
| Polarization Dependent Loss | ≤0.2dB | ≤0.2dB | ≤0.2dB | ≤0.3dB | ≤0.3dB | ≤0.4dB |
| Return Loss | ≥50dB | |||||
| Directivity | ≥55dB | |||||
| Wavelength Dependent Loss | ≤0.5dB | ≤0.5dB | ≤0.5dB | ≤0.5dB | ≤1.0dB | ≤1.0dB |
| Fiber Length | 1m or Specify | |||||
| Temperature Stability | ≤0.5dB | |||||
| Operating Temperature | -20℃ ~ +85℃ | |||||
| Storage Temperature | -40℃ ~ +85℃ | |||||
| Maximum Power Handing | 500mW | |||||
Note: Specified without connectors; add an additional 0.2dB loss per connector.
| Features | Applications |
|---|---|
| Low Insertion Loss | FTTX Systems |
| Low PDL | PON Networks |
| Compact Design | CATV Links |
| Good Channel-to-Channel Uniformity | Optical Signal Distribution |
