1×64 Singlemode Mini Plug-In, Blade Module PLC Splitter
◎ P/N: 110337
◎ Attention: For a formal quote, please send product details to sales@fiber-life.com.
Delivery: Order today and it will be shipped before from the U.S. or Hong Kong via FedEx/DHL/UPS. Free shipping on orders over US$200.
Warranty: Fiber-Life offers a 1-year warranty, 30-day returns, and 30-day exchanges.
$146.70

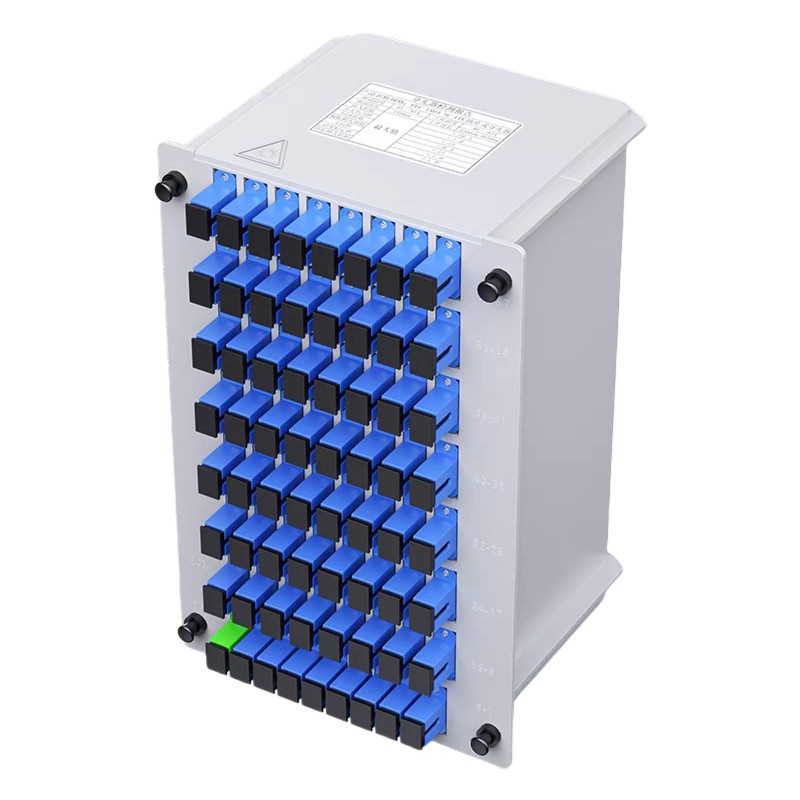

1×64 Singlemode Mini Plug-In, Blade Module PLC Splitter
1×64 Singlemode Mini Plug-In, Blade Module PLC Splitter is a high-density optical splitter designed for large-scale FTTH and PON network deployments. Leveraging PLC (Planar Lightwave Circuit) technology, it efficiently divides one input signal into 64 uniform outputs with low insertion loss, high reliability, and excellent optical performance. The mini plug-in blade-type module allows for easy installation into compact distribution frames or optical terminal boxes, optimizing space utilization. Constructed with G.657A1 singlemode fiber, this splitter ensures stable signal transmission and long-term durability in various environmental conditions.
Specifications
| Parameter | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
|---|---|---|---|---|---|---|
| Operating Wavelength | 1260nm ~ 1650nm | |||||
| Fiber Type | G657A1 | |||||
| Insertion Loss | ≤3.8dB | ≤7.2dB | ≤10.3dB | ≤13.5dB | ≤16.5dB | ≤20.5dB |
| Loss Uniformity | ≤0.4dB | ≤0.6dB | ≤0.8dB | ≤1.0dB | ≤1.5dB | ≤2.0dB |
| Polarization Dependent Loss | ≤0.2dB | ≤0.2dB | ≤0.2dB | ≤0.3dB | ≤0.3dB | ≤0.4dB |
| Return Loss | ≥50dB | |||||
| Directivity | ≥55dB | |||||
| Wavelength Dependent Loss | ≤0.5dB | ≤0.5dB | ≤0.5dB | ≤0.5dB | ≤1.0dB | ≤1.0dB |
| Fiber Length | 1m or Specify | |||||
| Temperature Stability | ≤0.5dB | |||||
| Operating Temperature | -20℃ ~ +85℃ | |||||
| Storage Temperature | -40℃ ~ +85℃ | |||||
| Maximum Power Handing | 500mW | |||||
Note: Specified without connectors; add an additional 0.2dB loss per connector.
| Features | Applications |
|---|---|
| Low Insertion Loss | FTTX Systems |
| Low PDL | PON Networks |
| Compact Design | CATV Links |
| Good Channel-to-Channel Uniformity | Optical Signal Distribution |
