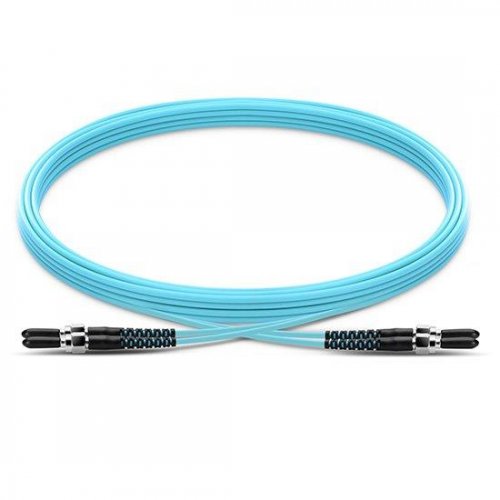

SMA905 To SMA905 Duplex OM3 Multimode Fiber Patch Cable
◎ P/N: 110738
◎ Attention: For a formal quote, send product details to sales@fiber-life.com.
Delivery: Order Today, will ship out before from U.S. or HK by FedEx/DHL/UPS (The fastest and best one), and Free Shipping on orders over US $200.
Warranty: fiber-life support 1-Year Warranty, 30-Day Returns and 30-Day Exchange.
$32.40 – $60.40
SMA905 To SMA905 Duplex OM3 Multimode Fiber Patch Cable
SMA905 To SMA905 Duplex OM3 Multimode Fiber Patch Cable is designed for high-speed data transmission in medical, military, and industrial applications. It features low insertion loss, high return loss, and excellent durability. Built with OM3 multimode fiber, it supports 10Gbps performance up to 300 meters. The robust SMA905 connectors ensure secure and stable connections, ideal for harsh environments. Custom lengths, cable diameters, and jackets are available upon request. For special requirements, please contact sales@fiber-life.com.
Specifications
| Parameter | Value | |||||||
| The numerical Aperture of The Quartz Fiber | 0.22-0.37 | |||||||
| Fiber Diameter | 0.2mm | 0.3mm | 0.4mm | 0.5mm | 0.6mm | 0.65mm | 0.8mm | |
| Minimum Bending Radius | 10D | |||||||
| Fiber Core (Coating Layer) | 1:1.05 or 1:1.4 | |||||||
| Numerical Aperture | 0.21-0.37 | |||||||
| Transmission (%/m0) | Transmission (0.20–0.4μm) | 85–98 | ||||||
| Visible Light (0.4–0.7μm) | 97–99 | |||||||
| Near-Infrared (0.76–1.6μm) | 90–99 | |||||||
| Helium-Neon (0.6328μm) | 99 | |||||||
| YAG (1.06μm) | 98 | |||||||
| Argon (0.5145μm) | 98 | |||||||
| Transmission Power | >130w (Fibre Core0.5@1.06um) | |||||||
| Connector Type | Metal Ferrule or Zirconia Ferrule | |||||||
| Inner Hole Size | 0.127mm ~ 1.200mm | |||||||
| Concentricity | ≤3.0μm | |||||||
| Roundness | ≤2.0μm | |||||||
| Core Material | Stainless Steel (Metal Ferrule) or Cupronickel (Zirconia Ferrule) | |||||||
Note: The default ferrule of the connector is metal ferrule (without groove), and the default inner hole size is 127 μm with a tolerance of +3/–0μm.
Features
Comparison Between Metal Ferrule and Zirconia Ferrule for SMA905 Connectors
Comparison Between Metal Ferrule with groove and Metal Ferrule without groove
HPSMA905 Connector with Extended Tailstock
