(2+1)x1 Multimode Pump & Signal Combiner

The (2+1)x1 Multimode Pump & Signal Combiner is a high-performance passive optical component specifically designed for high-power fiber laser and fiber amplifier systems. It efficiently combines two multimode pump inputs with one signal input into a single double-clad output fiber, where the signal propagates through the core and the pump light propagates through the inner cladding. This configuration enables simultaneous transmission of pump and signal light within the same fiber, ensuring high pump efficiency, low insertion loss, and high output stability.

Engineered for demanding power-handling environments, the combiner supports up to 300 W power per branch, offering exceptional reliability for industrial and scientific laser applications. With its wide wavelength compatibility, robust thermal performance, and excellent mechanical stability, this combiner is ideally suited for integration into next-generation fiber laser architectures.

Specifications

Parameter	Value
Configuration Type	(2+1)x1
Signal Wavelength Range	1020 ~ 1080nm	1530 ~ 1575nm	1950 ~ 2050nm
Pump Wavelength Range	780 ~ 1000nm	780 ~ 1000nm	780 ~ 1000nm
Pump Fiber Type	See below: 1.0µm fiber laser	See below: 1.5µm fiber laser	See below: 2.0µm fiber laser
Signal Input Fiber
Output Fiber Type
Max Signal Insertion Loss
Min Pump Efficiency
Max Input Power per Arm
Beam Quality (M²)	<1.3
Isolation	≥20dB
Fiber Length	1m or Custom

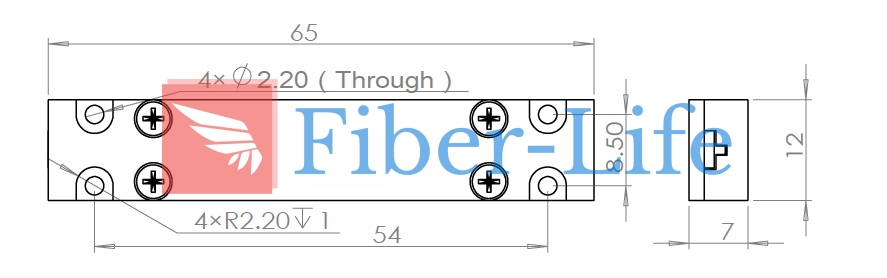

Package Dimension	50 x 5 x 5mm or 65 x 12 x 7mm (Default) or 80 x 12 x 8mm or 100 x 15 x 10mm
Operating Temperature	0 ~ +75°C
Storage Temperature	-40 ~ +85°C

Note: Temperature measurements are taken at 25°C. The package dimension varies by power level; please contact us to confirm the exact specifications.

1.0µm Fiber Laser

Configuration Type	Signal Wavelength Range	Pump Fiber Type	Signal Input Fiber	Output Fiber Type	Max Signal Insertion Loss	Min Pump Efficiency	Max Input Power per Arm
(2+1)x1	1020 ~ 1080nm	105/125μm, NA0.22	Hi1060	5/130µm, NA0.12/0.46	0.5dB	90%	50W
	1020 ~ 1080nm	105/125μm, NA0.22	Hi1060	10/125µm, NA0.08/0.46	0.5dB	90%	50W
	1020 ~ 1080nm	105/125μm, NA0.22	Hi1060	20/125µm, NA0.08/0.46	0.5dB	90%	50W
	1020 ~ 1080nm	105/125μm, NA0.22	5/130µm, NA0.12/0.46	6/125µm, NA0.18/0.46	0.5dB	90%	50W
	1020 ~ 1080nm	105/125μm, NA0.22	5/130µm, NA0.12/0.46	10/125µm, NA0.08/0.46	0.5dB	90%	50W
	1020 ~ 1080nm	105/125μm, NA0.22	5/130µm, NA0.12/0.46	20/125µm, NA0.08/0.46	0.5dB	90%	50W
	1020 ~ 1080nm	105/125μm, NA0.22	6/125µm, NA0.18/0.46	6/125µm, NA0.18/0.46	0.5dB	90%	50W
	1020 ~ 1080nm	105/125μm, NA0.22	10/125µm, NA0.08/0.46	10/125µm, NA0.08/0.46	0.5dB	90%	50W
	1020 ~ 1080nm	105/125μm, NA0.22	10/125µm, NA0.08/0.46	20/125µm, NA0.08/0.46	0.5dB	90%	50W
	1020 ~ 1080nm	105/125μm, NA0.22	20/125µm, NA0.08/0.46	20/125µm, NA0.08/0.46	0.5dB	90%	100W
	1020 ~ 1080nm	105/125μm, NA0.22	10/125µm, NA0.08/0.46	25/250µm, NA0.065/0.46	0.5dB	95%	200W
	1020 ~ 1080nm	200/220μm, NA0.22	25/250µm, NA0.065/0.46	25/250µm, NA0.065/0.46	0.5dB	95%	200W
	1020 ~ 1080nm	200/220μm, NA0.22	30/250µm, NA0.062/0.46	30/250µm, NA0.062/0.46	0.5dB	95%	200W
	1020 ~ 1080nm	200/220μm, NA0.22	20/400µm, NA0.065/0.46	20/400µm, NA0.065/0.46	0.5dB	95%	300W

1.5µm Fiber Laser

Configuration Type	Signal Wavelength Range	Pump Fiber Type	Signal Input Fiber	Output Fiber Type	Max Signal Insertion Loss	Min Pump Efficiency	Max Input Power per Arm
(2+1)x1	1530 ~ 1575nm	105/125μm, NA0.22	SMF-28	SM-GDF-1550	0.5dB	90%	50W
	1530 ~ 1575nm	105/125μm, NA0.22	SM-GDF-1550	SM-GDF-1550	0.5dB	90%	50W
	1530 ~ 1575nm	105/125μm, NA0.22	12/130µm, NA0.20/0.46	12/130µm, NA0.20/0.46	0.5dB	90%	50W
	1530 ~ 1575nm	105/125μm, NA0.22	12/130µm, NA0.20/0.46	25/300µm, NA0.09/0.46	0.5dB	95%	100W

2.0µm Fiber Laser

Configuration Type	Signal Wavelength Range	Pump Fiber Type	Signal Input Fiber	Output Fiber Type	Max Signal Insertion Loss	Min Pump Efficiency	Max Input Power per Arm
(2+1)x1	1950 ~ 2050nm	105/125μm, NA0.22	SM1950	10/130µm, NA0.15/0.46	0.5dB	90%	50W
	1950 ~ 2050nm	105/125μm, NA0.22	10/130µm, NA0.15/0.46	10/130µm, NA0.15/0.46	0.5dB	90%	50W
	1950 ~ 2050nm	105/125μm, NA0.22	10/130µm, NA0.15/0.46	25/250µm, NA0.09/0.46	0.7dB	95%	100W
	1950 ~ 2050nm	105/125μm, NA0.22	10/130µm, NA0.15/0.46	25/400µm, NA0.09/0.46	0.7dB	95%	100W
