(6+1)x1 Multimode Pump & Signal Combiner

The (6+1)x1 Multimode Pump & Signal Combiner is a high-power optical component engineered for advanced fiber laser and fiber amplifier systems. Designed to efficiently combine six multimode pump inputs with one signal input into a single double-clad output fiber, this combiner delivers outstanding pump coupling efficiency and stable signal transmission. The signal propagates through the fiber core while all pump light propagates through the inner cladding, enabling high-brightness and high-power operation in a compact and reliable structure.

With ultra-low insertion loss, excellent thermal stability, and high power handling capability, the (6+1)x1 combiner supports demanding industrial, medical, and scientific laser platforms. Each pump port can sustain high power levels, ensuring robust performance even under continuous high-load operation.

Specifications

Parameter	Value
Configuration Type	(6+1)x1
Signal Wavelength Range	1020 ~ 1080nm	1530 ~ 1575nm	1950 ~ 2050nm
Pump Wavelength Range	780 ~ 1000nm	780 ~ 1000nm	780 ~ 1000nm
Pump Fiber Type	See below: 1.0µm fiber laser	See below: 1.5µm fiber laser	See below: 2.0µm fiber laser
Signal Input Fiber
Output Fiber Type
Max Signal Insertion Loss
Min Pump Efficiency
Max Input Power per Arm
Beam Quality (M²)	<1.3
Isolation	≥20dB
Fiber Length	1m or Custom

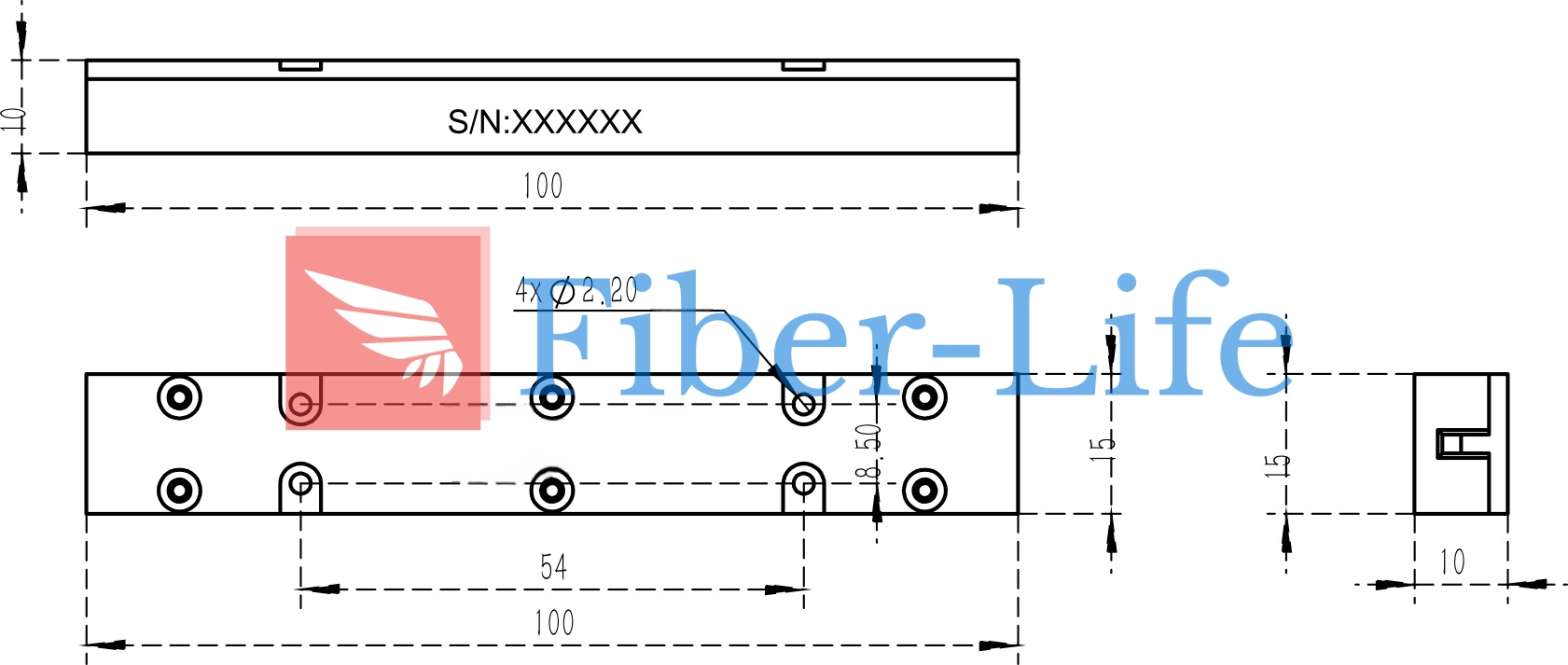

Package Dimension	65 x 12 x 7mm or 80 x 12 x 8mm or 100 x 15 x 10mm (Default)
Operating Temperature	0 ~ +75°C
Storage Temperature	-40 ~ +85°C

Note: Temperature measurements are taken at 25°C. The package dimension varies by power level; please contact us to confirm the exact specifications.

1.0µm Fiber Laser

Configuration Type	Signal Wavelength Range	Pump Fiber Type	Signal Input Fiber	Output Fiber Type	Max Signal Insertion Loss	Min Pump Efficiency	Max Input Power per Arm
(6+1)x1	1020 ~ 1080nm	105/125μm, NA0.22	Hi1060	10/125µm, NA0.08/0.46	0.7dB	90%	25W
	1020 ~ 1080nm	105/125μm, NA0.22	Hi1060	20/125µm, NA0.08/0.46	0.7dB	90%	50W
	1020 ~ 1080nm	105/125μm, NA0.22	5/130µm, NA0.12/0.46	10/125µm, NA0.08/0.46	0.7dB	90%	25W
	1020 ~ 1080nm	105/125μm, NA0.22	10/125µm, NA0.08/0.46	10/125µm, NA0.08/0.46	0.7dB	90%	50W
	1020 ~ 1080nm	105/125μm, NA0.22	5/130µm, NA0.12/0.46	25/250µm, NA0.065/0.46	0.7dB	95%	100W
	1020 ~ 1080nm	105/125μm, NA0.22	10/125µm, NA0.08/0.46	30/250µm, NA0.062/0.46	0.7dB	95%	100W
	1020 ~ 1080nm	105/125μm, NA0.22	20/125µm, NA0.08/0.46	25/250µm, NA0.065/0.46	0.7dB	95%	200W
	1020 ~ 1080nm	200/220μm, NA0.22	20/400µm, NA0.065/0.46	20/400µm, NA0.065/0.46	0.7dB	97%	300W
	1020 ~ 1080nm	220/242μm, NA0.22	20/400µm, NA0.065/0.46	20/400µm, NA0.065/0.46	0.7dB	97%	300W

1.5µm Fiber Laser

Configuration Type	Signal Wavelength Range	Pump Fiber Type	Signal Input Fiber	Output Fiber Type	Max Signal Insertion Loss	Min Pump Efficiency	Max Input Power per Arm
(6+1)x1	1530 ~ 1575nm	105/125μm, NA0.22	SMF-28	SM-GDF-1550	0.7dB	90%	25W
	1530 ~ 1575nm	105/125μm, NA0.22	SM-GDF-1550	SM-GDF-1550	0.7dB	90%	25W
	1530 ~ 1575nm	105/125μm, NA0.22	12/130µm, NA0.20/0.46	12/130µm, NA0.20/0.46	0.7dB	90%	50W
	1530 ~ 1575nm	105/125μm, NA0.22	12/130µm, NA0.20/0.46	25/300µm, NA0.09/0.46	0.7dB	95%	100W

2.0µm Fiber Laser

Configuration Type	Signal Wavelength Range	Pump Fiber Type	Signal Input Fiber	Output Fiber Type	Max Signal Insertion Loss	Min Pump Efficiency	Max Input Power per Arm
(6+1)x1	1950 ~ 2050nm	105/125μm, NA0.22	SM1950	10/130µm, NA0.15/0.46	0.7dB	90%	50W
	1950 ~ 2050nm	105/125μm, NA0.22	10/130µm, NA0.15/0.46	10/130µm, NA0.15/0.46	0.7dB	90%	50W
	1950 ~ 2050nm	105/125μm, NA0.22	10/130µm, NA0.15/0.46	25/250µm, NA0.09/0.46	0.7dB	95%	50W
	1950 ~ 2050nm	105/125μm, NA0.22	10/130µm, NA0.15/0.46	25/400µm, NA0.09/0.46	0.7dB	95%	100W
