1×2 DWDM Single Channel 100Ghz Channel Spacing
◎ P/N: 21908
◎ Attention: For a formal quote, please send product details to sales@fiber-life.com.
Delivery: Order today and it will be shipped before from the U.S. or Hong Kong via FedEx/DHL/UPS. Free shipping on orders over US$200.
Warranty: Fiber-Life offers a 1-year warranty, 30-day returns, and 30-day exchanges.
$75.49 – $105.49

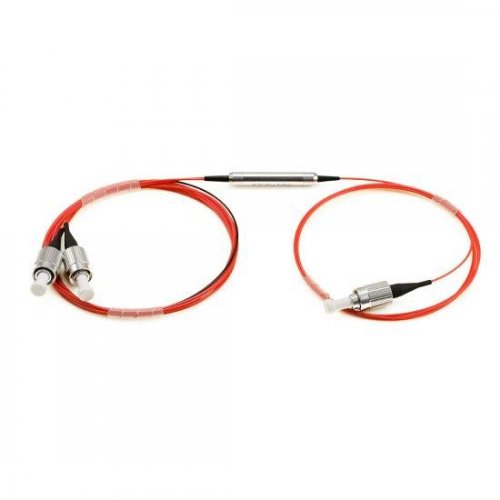

1×2 DWDM Single Channel 100GHz Spacing with Steel Tube
FiberLife’s 1×2 DWDM Single Channel 100Ghz Channel Spacing utilizes advanced thin-film coating technology and a proprietary non-flux metal bonding micro-optics packaging design to enable precise optical add/drop functionality at ITU-defined wavelengths. Designed for high-performance DWDM networks, it offers low insertion loss, high channel isolation, a wide passband, minimal temperature sensitivity, and an epoxy-free optical path, ensuring long-term stability and reliability. This multiplexer is ideal for wavelength add/drop applications in telecommunication networks, enhancing network flexibility and efficiency while maintaining exceptional optical performance.
Specifications
Parameter | Value | ||
---|---|---|---|
Channel Wavelength | ITU Grid | ||
Channel Spacing | 100GHz | 200GHz | |
Channel Passband (@-0.5dB bandwidth) | ≥0.22nm | ≥0.5nm | |
Insertion Loss | Pass Channel | ≤0.8dB | ≤0.7dB |
Reflect Channel | ≤0.4dB | ||
Isolation | Pass Channel | ≥30dB | |
Reflect Channel | ≥13dB | ||
Insertion Loss Temperature Sensitivity | ≤0.3dB | ||
Wavelength Temperature Shifting | ≤0.001nm/℃ | ||
Polarization Dependent Loss | ≤0.1dB | ||
Polarization Mode Dispersion | ≤0.1ps | ||
Directivity | ≥45dB | ||
Return Loss | ≥45dB | ||
Maximum Power Handling | 300mW | ||
Operating Temperature | -10 ~ +70℃ | ||
Storage Temperature | -40 ~ +85℃ | ||
Package Dimension | For 250μm or 900μm | Φ5.5 x L38mm (Steel Tube) | |
For 2.0mm or 3.0mm | L90 x W20 x H10mm (ABS Box) |
Note: Above specifications are for devices without connector.
Features | Applications |
---|---|
Low Insertion Loss | Channel Add/Drop |
Wide Pass Band | DWDM Network |
High Channel Isolation | Wavlength Routing |
Epoxy-Free On Optical Path | Fiber Optical Amplifier |
High Stability And Reliability | CATV Fiber Optic System |

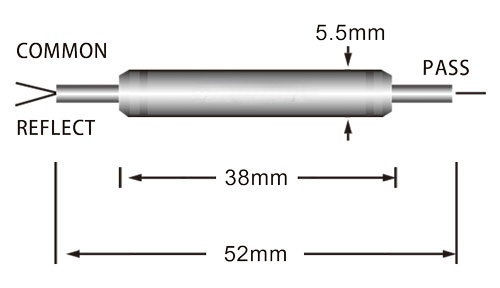

Dimension Drawing ( Unit: mm)
