1xN Multi-channel Non-Latching Opto-Mechanical Optical Switch Module
◎ P/N: #31665
◎ Attention: For official offers, send product details to sales@fiber-life.com.
Delivery: Order Today, will ship out before from U.S. or HK by FedEx/DHL/UPS (The fastest and best one), and Free Shipping on orders over US $200.
Warranty: fiber-life support 1-Year Warranty, 30-Day Returns and 30-Day Exchange.
$474.00 – $6,320.00

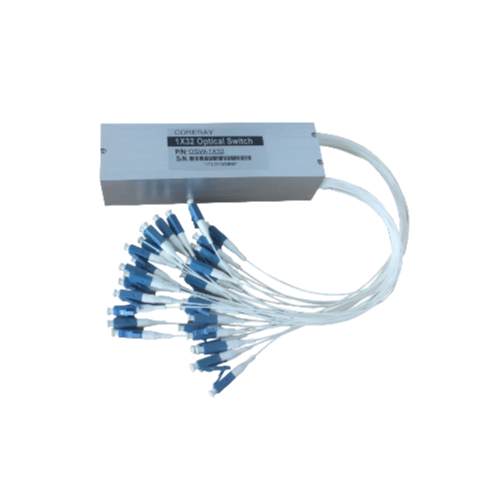

1xN Multi-channel Non-Latching Opto-Mechanical Optical Switch Module
The 1xN Multi-channel Opto-Mechanical Optical Switch is a high-efficiency optical switching device designed for fiber optic communication systems, allowing a single input signal to be flexibly routed to multiple output ports (N). It features a multi-channel design that can handle multiple optical signals simultaneously, making it ideal for high-density fiber networks. Using an opto-mechanical structure, the switch precisely alters the light path with high stability and low insertion loss, ensuring signal integrity. This device is commonly used in fiber communication networks, sensing systems, and laboratory testing, where dynamic routing and precise signal control are essential.
Specifications
| Insertion loss | dB | 1<N≤32 | 32<N≤64 |
| Typ :0.5 Max:1.0 | Typ:1.0 Max:1.5 | ||
| Wavelength range | nm | 532~1300, 1260~1660 | |
| Testing wavelength | nm | 532/650/780/850/980/1300/1310/1490/1550/1650 | |
| Return loss | dB | SM≥55,MM≥35 | |
| Crosstalk | dB | ≥-80 | |
| PDL | dB | ≤0.10 | |
| WDL | dB | ≤0.25 | |
| IDL | dB | ≤0.30 | |
| Repeatability | dB | ≤±0.05 | |
| Lifetime | cycle | 3×107 | |
| 0ptical input power | mW | ≤1000 | |
| Switching time | ms | ≤10 (Sequence switch time of adjacent channel) | |
| Operating temperature | ℃ | -10~+70 | |
| Storage temperature | ℃ | -40~+85 | |
| Power supply | V | +5 | |
| Dimension | mm | 135×40×32 (N≤32), 135×64×32 (N≤64) | |
Features |
Applications |
| Up to 64 channels | Ring network |
| Low insertion loss | Remote monitoring in optical network |
| Parallel interface | Testing of fiber optical component |
| Modularized design | |
| Epoxy free on optical path |
Optical Route:
Pins:
|
Pin |
I/O | Signal Name | Description |
|
1 |
Input | /RESET | TTL, Low level reset to channel 0. High level means channel.
selection bits are effective. |
|
2 |
Input | D0 | TTL,D0 is low, and D4 is high, Example：00000b=1 CH;11111b=32 CH. |
|
3 |
Input | D1 | |
|
4 |
Input | D2 | |
|
5 |
Input | D3 | |
|
6 |
Input |
D4 |
|
| 7 | Out | /READY |
TTL, Ready (High=Not ready, Low=Ready) |
| 8 | Out | ERROR |
TTL, Error (High=Error, Low=No error) |
| 9 | Power in | GND |
Ground |
| 10 | Power in | 5V |
5.0±5% VDC Power Supply (max 500mA) |
| 11 | S- | RS232(485) |
RX (B) |
| 12 | S+ | RS232(485) |
TX (A) |
Flexible Architectures

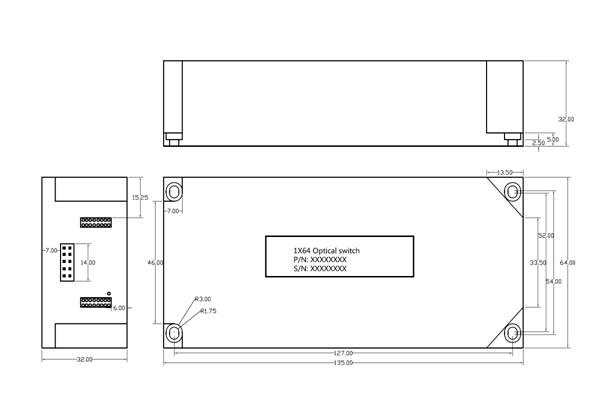

Mechanical Dimensions (Unit: mm) ：
Type A(N ≤ 32)
Type B(N ≤ 64)
| Channel | 1×4, 1×8, 1×12, 1×16, 1×20, 1×24, 1×32, 1×40, 1×48, 1×64 |
|---|---|
| Wavelength | 850nm, 1310nm, 1552nm, 1650nm, Customize |
| Fiber Tpye | OS2, OM1, OM2, OM3, OM4 |
| Fiber Diameter | 250um, 900um, 2.0mm, 3.0mm |
| Fiber Length | 0.5m, 1.0m, 1.5m, 2.0m |
| Connector | None, FC/APC, FC/UPC, SC/APC, SC/UPC, LC/APC, LC/UPC, ST/APC, ST/UPC |
| Control Port | RS232+TTL, RS485+TTL, USB |
