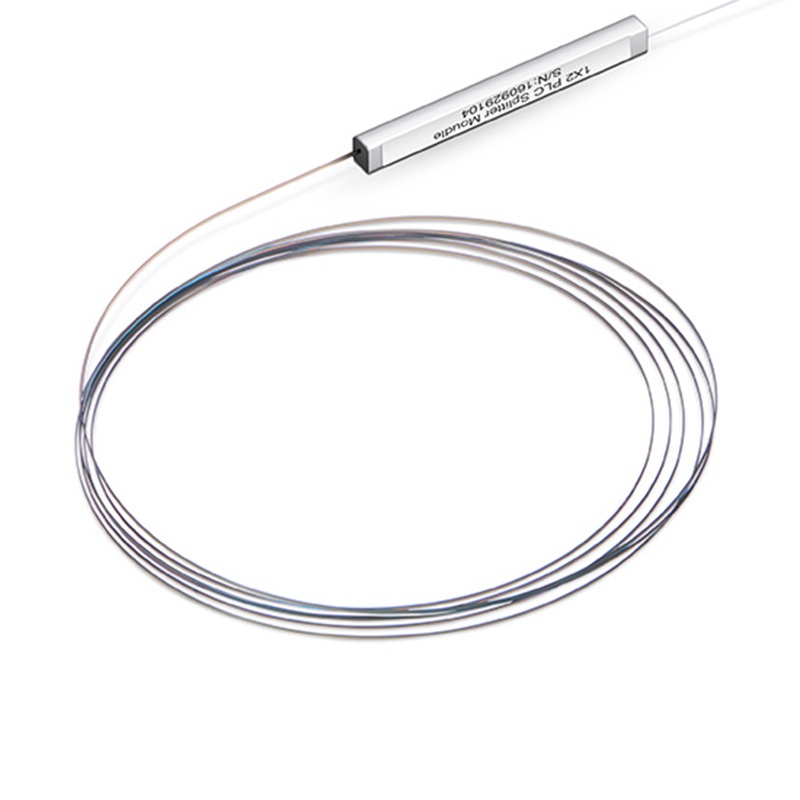

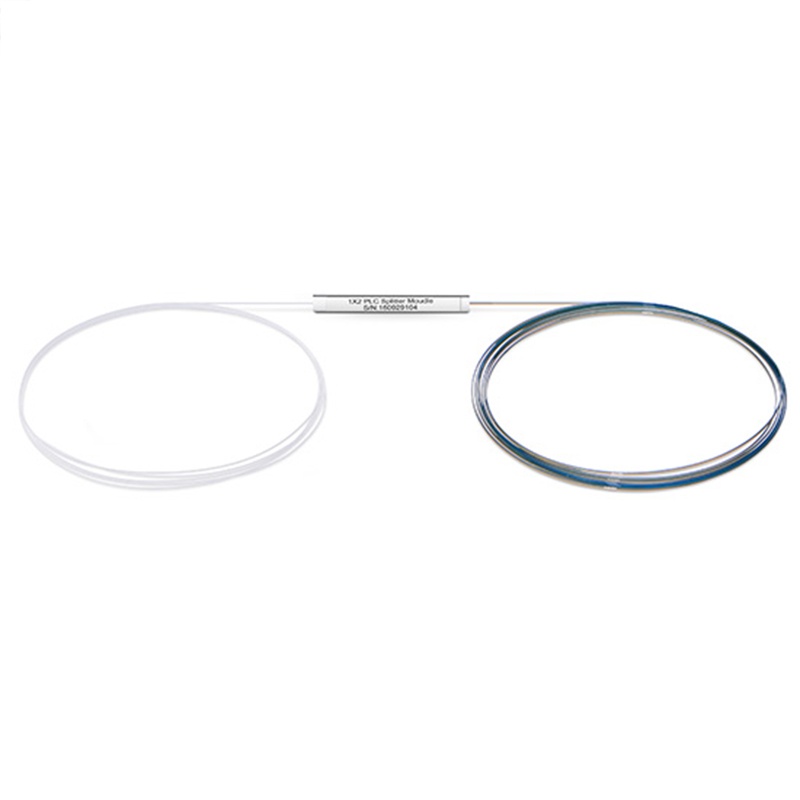

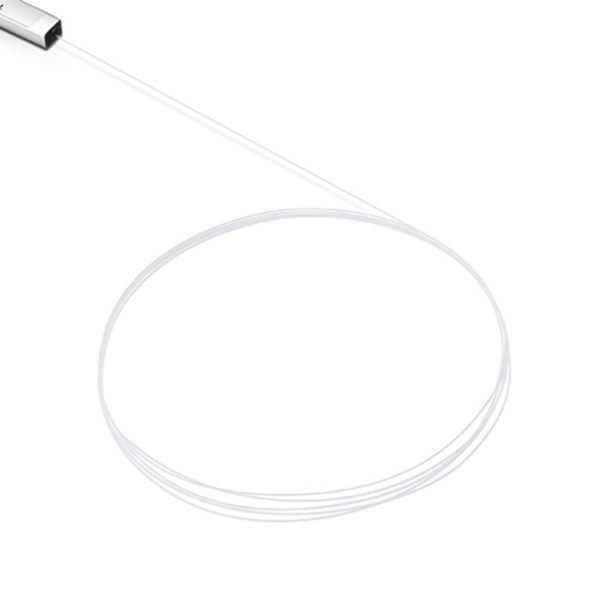

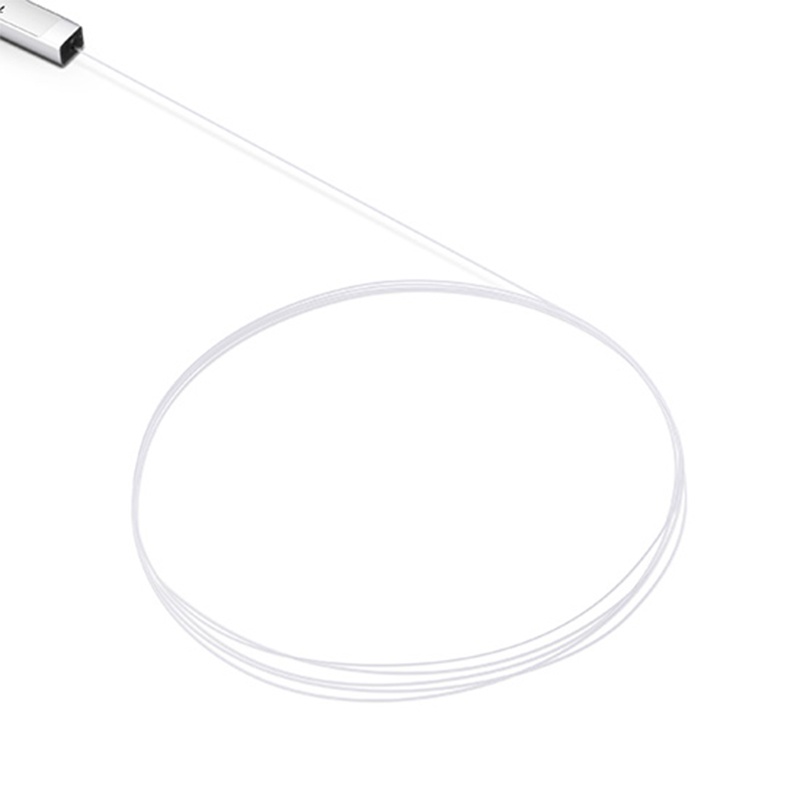

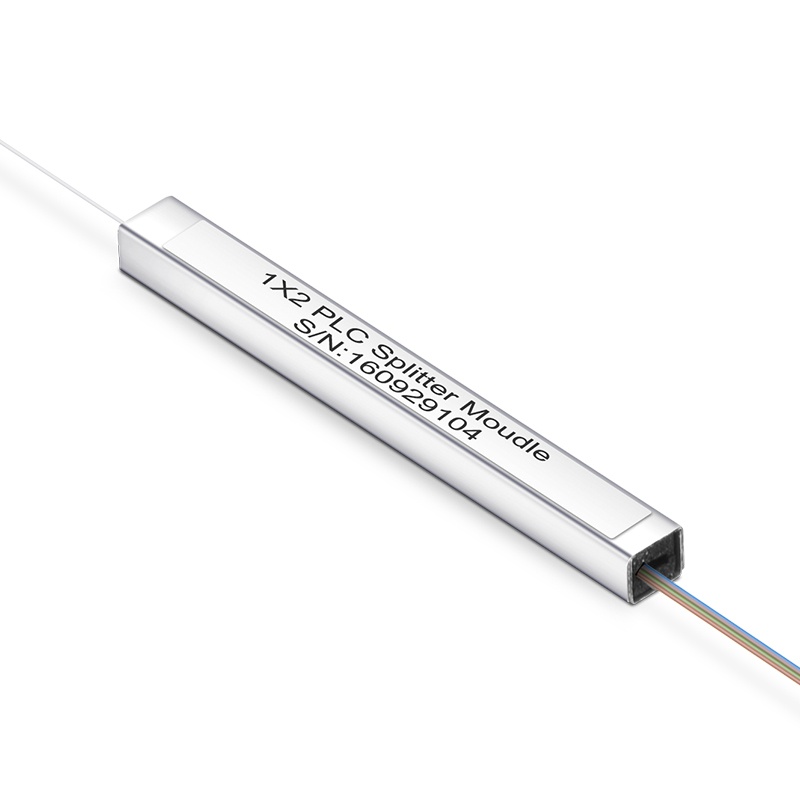

1×2 SingleMode Bare Fiber PLC Splitter
◎ P/N: 49045
◎ Attention: For a formal quote, send product details to sales@fiber-life.com.
Delivery: Order Today, will ship out before from U.S. or HK by FedEx/DHL/UPS (The fastest and best one), and Free Shipping on orders over US $200.
Warranty: fiber-life support 1-Year Warranty, 30-Day Returns and 30-Day Exchange.
$7.60
1×2 SingleMode Bare Fiber PLC Splitter
The 1×2 SingleMode Bare Fiber PLC Splitter is a Planar Lightwave Circuit (PLC) splitter designed for single-mode fiber systems, featuring 1 input port and 2 output ports. It splits the optical signal from the main fiber into two separate outputs, either equally or in a specific ratio. With a bare fiber design, it requires fusion splicing for installation and is commonly integrated into fiber distribution boxes or internal devices. As a PLC-based product, it offers high splitting accuracy, low insertion loss, and excellent stability. This splitter is widely used in FTTH (Fiber to the Home), optical communications, optical sensing, and testing systems, making it a critical component in building high-performance optical networks.
Specifications
Parameter | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
---|---|---|---|---|---|---|
Operating Wavelength (nm) | 1260~1650 | |||||
Fiber Type | G657A1 | |||||
Insertion Loss (dB) | ≤3.8 | ≤7.2 | ≤10.3 | ≤13.5 | ≤16.5 | ≤20.5 |
Loss Uniformity (dB) | ≤0.4 | ≤0.6 | ≤0.8 | ≤1.0 | ≤1.5 | ≤2.0 |
Polarization Dependent Loss (dB) | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.4 |
Return Loss (dB) | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 |
Directivity (dB) | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 |
Wavelength Dependent Loss (dB) | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤1.0 | ≤1.0 |
Fiber Length | 1m or Specify | |||||
Temperature Stability (-20~80℃) (dB) | ≤0.5 | |||||
Operating Temperature (℃) | -20 ~ +85 | |||||
Storage Temperature (℃) | -40 ~ +85 | |||||
Maximum Power Handing (mW) | 500 | |||||
Dimension (mm) | L40 x W4 x H4 | L50 x W7 x H4 | L60 x W12 x H4 |
Note: Specified without connectors; add an additional 0.2dB loss per connector.
Features | Applications |
---|---|
Low Insertion Loss | FTTX Systems |
Low PDL | PON Networks |
Compact Design | CATV Links |
Good Channel-to-Channel Uniformity | Optical Signal Distribution |
High Reliability and Stability |
Dimension Drawing (Unit: mm)
5 |
|
0 |
4 |
|
0 |
3 |
|
0 |
2 |
|
0 |
1 |
|
0 |
