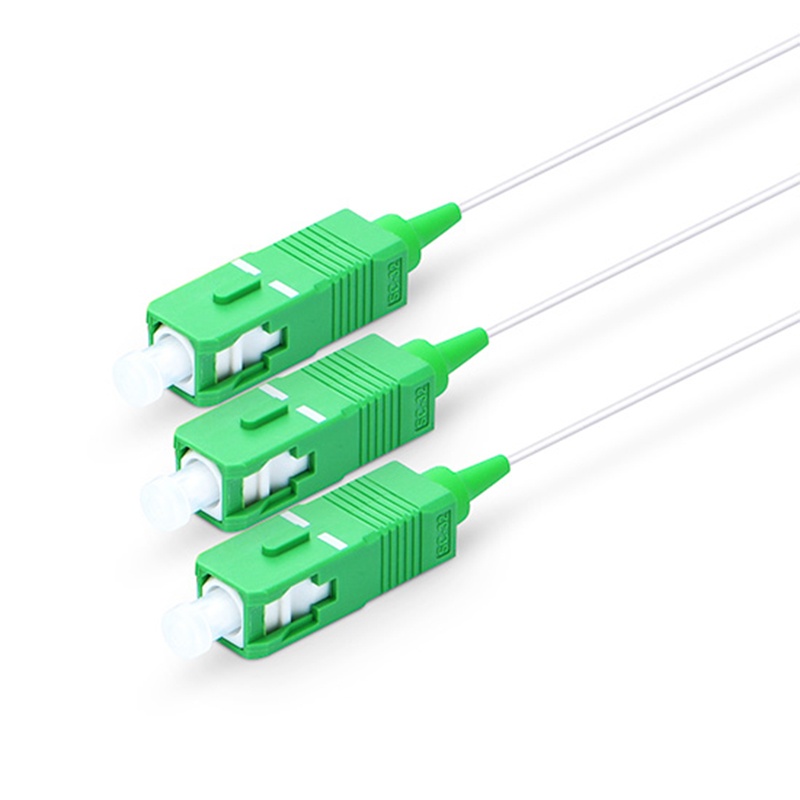

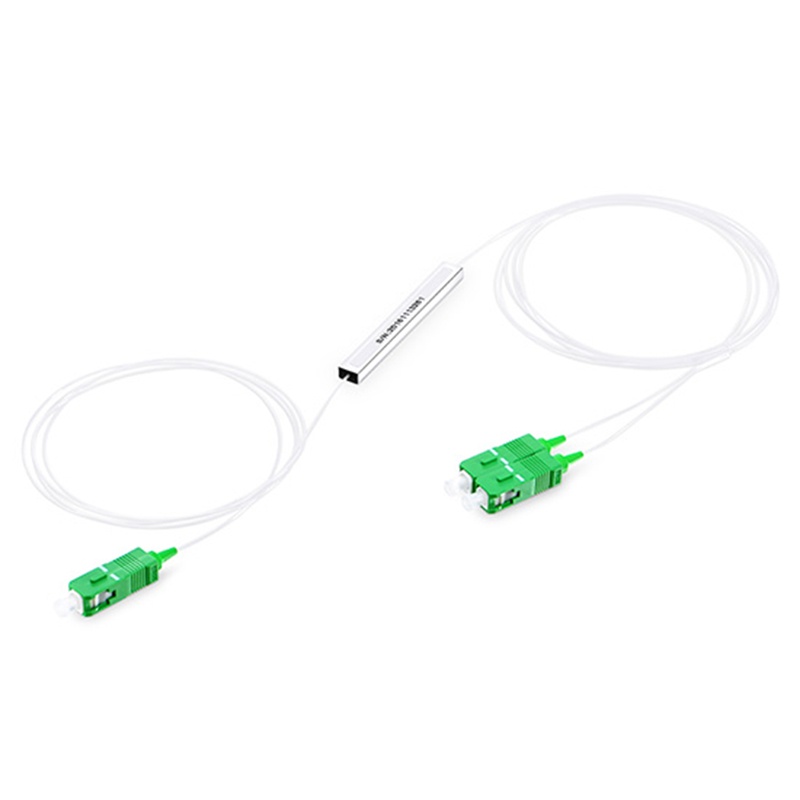

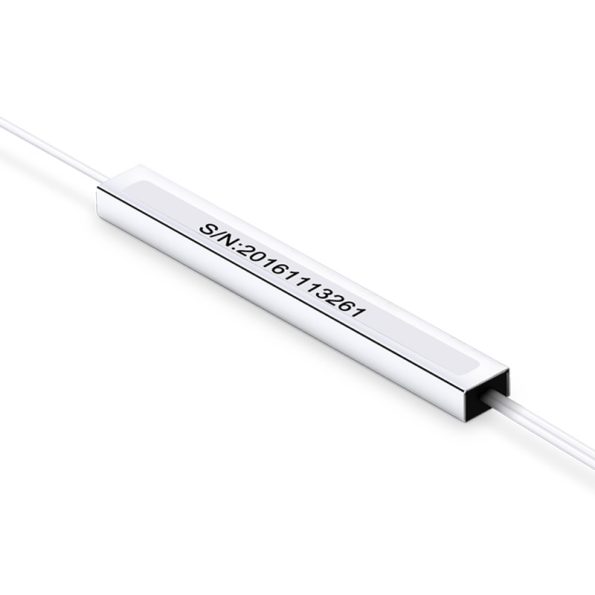

1×2 SingleMode Mini Module Blockless PLC Splitter
◎ P/N: 49051
◎ Attention: For a foamal quote, send product details to sales@fiber-life.com.
Delivery: Order Today, will ship out before from U.S. or HK by FedEx/DHL/UPS (The fastest and best one), and Free Shipping on orders over US $200.
Warranty: fiber-life support 1-Year Warranty, 30-Day Returns and 30-Day Exchange.
$10.64
1×2 SingleMode Mini Module Blockless PLC Splitter
The 1×2 SingleMode Mini Module Blockless PLC Splitter is an optical fiber splitter used in single-mode fiber systems, designed to evenly distribute the light signal from a single input port to two output ports. It is widely used in applications like Fiber to the Home (FTTH) and optical communication networks. Unlike traditional PLC splitters that use block optical elements, the Blockless design utilizes fiber-optic technology directly to achieve signal distribution, resulting in a more compact form factor, lower insertion loss, and higher reliability.
Specifications
Parameter | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
---|---|---|---|---|---|---|
Operating Wavelength (nm) | 1260~1650 | |||||
Fiber Type | G657A1 | |||||
Insertion Loss (dB) | ≤3.8 | ≤7.2 | ≤10.3 | ≤13.5 | ≤16.5 | ≤20.5 |
Loss Uniformity (dB) | ≤0.4 | ≤0.6 | ≤0.8 | ≤1.0 | ≤1.5 | ≤2.0 |
Polarization Dependent Loss (dB) | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.4 |
Return Loss (dB) | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 |
Directivity (dB) | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 |
Wavelength Dependent Loss (dB) | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤1.0 | ≤1.0 |
Fiber Length | 1m or Specify | |||||
Temperature Stability (-20~80℃) (dB) | ≤0.5 | |||||
Operating Temperature (℃) | -20 ~ +85 | |||||
Storage Temperature (℃) | -40 ~ +85 | |||||
Maximum Power Handing (mW) | 500 | |||||
Dimension (mm) | L60 x W7 x H4 | L60 x W12 x H4 | L80 x W20 x H6 | L100 x W40 x H6 |
Note: Specified without connectors; add an additional 0.2dB loss per connector.
Features | Applications |
---|---|
Low Insertion Loss | FTTX Systems |
Low PDL | PON Networks |
Compact Design | CATV Links |
Good Channel-to-Channel Uniformity | Optical Signal Distribution |
High Reliability and Stability |

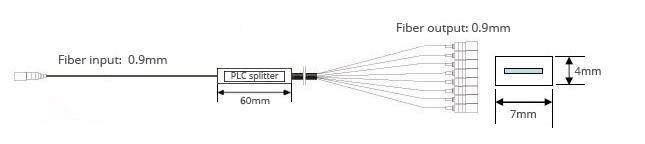

Dimension Drawing (Unit: mm)
5 |
|
0 |
4 |
|
0 |
3 |
|
0 |
2 |
|
0 |
1 |
|
0 |
