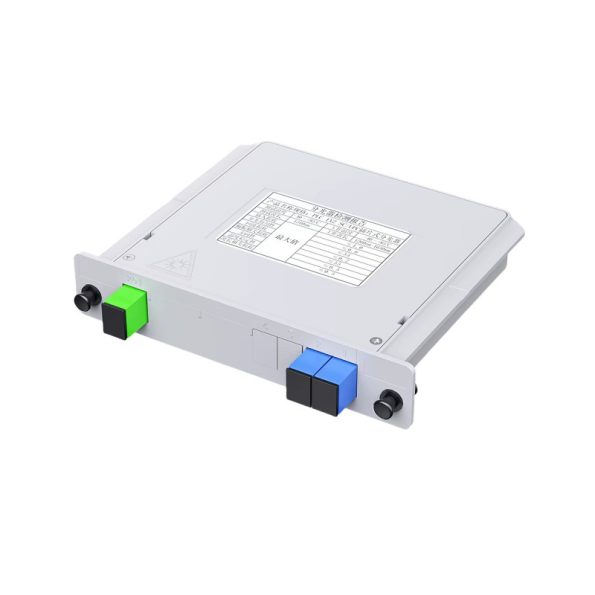

1xN, 2xN SingleMode Mini Plug-In Type PLC Splitter, Blade Module
A Mini Plug-In Type PLC Splitter is a compact optical splitter that employs planar lightwave circuit (PLC) technology to efficiently divide a single optical signal into multiple outputs. Its small, plug-in module design allows for easy installation and replacement in fiber optic management systems, such as patch panels or distribution boxes, making it ideal for high-density networks. This splitter is particularly useful in fiber-to-the-home (FTTH) and optical distribution networks (ODN), where space efficiency, ease of maintenance, and reliable, low-loss signal distribution are essential.
Specifications 1×N PLC Splitter
| Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 1×128 |
| Operating Wavelength（nm） | 1260~1650 | ||||||
| Fiber Type | G657A1 Or Customer Specified | ||||||
| Insertion Loss (dB)(P/S Grade) | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.9 | 20.5/21.0 | 23.8/24.2 |
| Loss Uniformit（dB） | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.0 | 2.5 |
| Polarization Dependent Loss（dB） | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 | 0.35 | 0.4 |
| Return Loss(dB)（P/S Grade） | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 |
| Directivity（dB） | 55 | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss（dB） | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 | 0.5 |
| Temperature Stability （-40~85℃）（dB） | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 | 0.5 |
| Operating Temperature(℃) | -40~+85 | ||||||
| Storage Temperature(℃) | -40~+85 | ||||||
Specifications 2×N PLC Splitter
| Parameters | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 | 2×128 |
| Operating Wavelength（nm） | 1260~1650 | ||||||
| Fiber Type | G657A1 or customer specified | ||||||
| Insertion Loss (dB) P/S Grade） | 3.9/4/2 | 7.3/7.6 | 10.5/11 | 14.4/14.6 | 17.4/17.9 | 21.0/21.5 | 24.5/25.0 |
| Loss Uniformity（dB） | ≤0.6 | ≤1.0 | ≤1.2 | ≤1.5 | ≤1.8 | ≤2.2 | ≤2.5 |
| Polarization Dependent Loss（dB） | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.4 |
| Return Loss(dB)(P/S Grade) | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 |
| Directivity（dB） | 55 | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss（dB） | ≤0.3 | ≤0.4 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 |
| Fiber Length (m) | 1.5(±0.1)or customer specified | ||||||
| Temperature Stability（-40~85℃）（dB） | ≤0.5 | ||||||
| Operating Temperature(℃) | -20~+75 | ||||||
| Storage Temperature(℃) | -40~+85 | ||||||
| Maximum Power Handling (mW) | 500 | ||||||
Note:
1、The above parameters were measured at room temperature, but not including connectors data.
2、Add an additional 0.2dB loss per connector，Return Loss≥55dB(APC)，≥50dB(UPC).
Features |
Applications |
| Low Insertion loss | FTTX Systems |
| Low PDL | PON Networks |
| Compact Design | CATV Links |
| Good channel-to-channel uniformity | Optical Signal Distribution |
| Wide Operating Wavelength:From 1260nm to 1650nm | |
| Wide Operating Temperature:From -40℃ to 85℃ | |
| High Reliability and Stability |
| Models | 1×2, 1×4, 1×8, 1×16, 1×32, 1×64, 2×2, 2×4, 2×8, 2×16, 2×32, 2×64 |
|---|---|
| Connectors | SC/APC, SC/UPC, FC/APC, FC/UPC, LC/APC, LC/UPC, ST/APC, ST/UPC |
