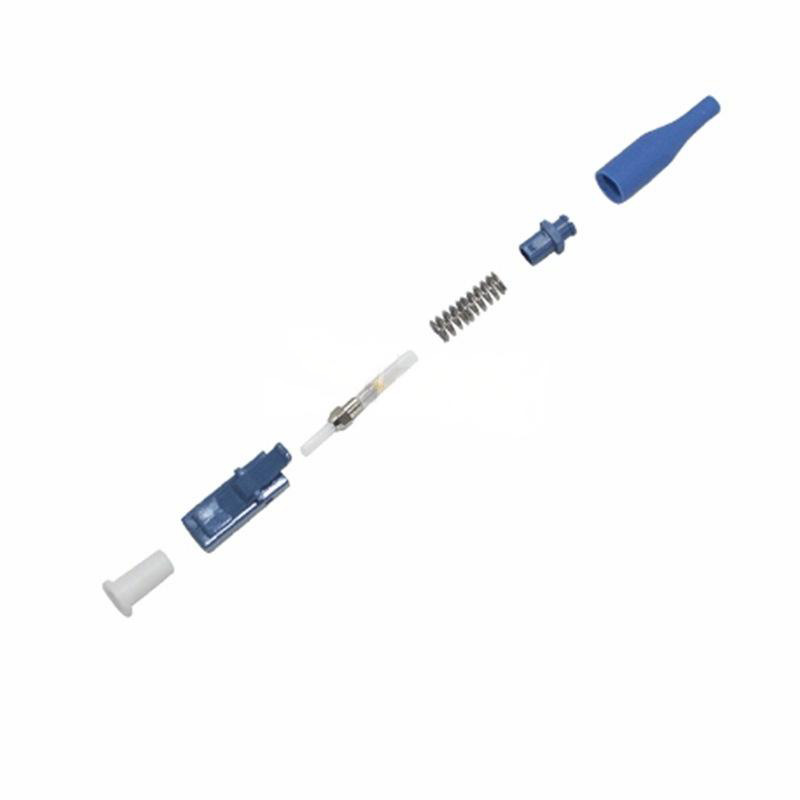

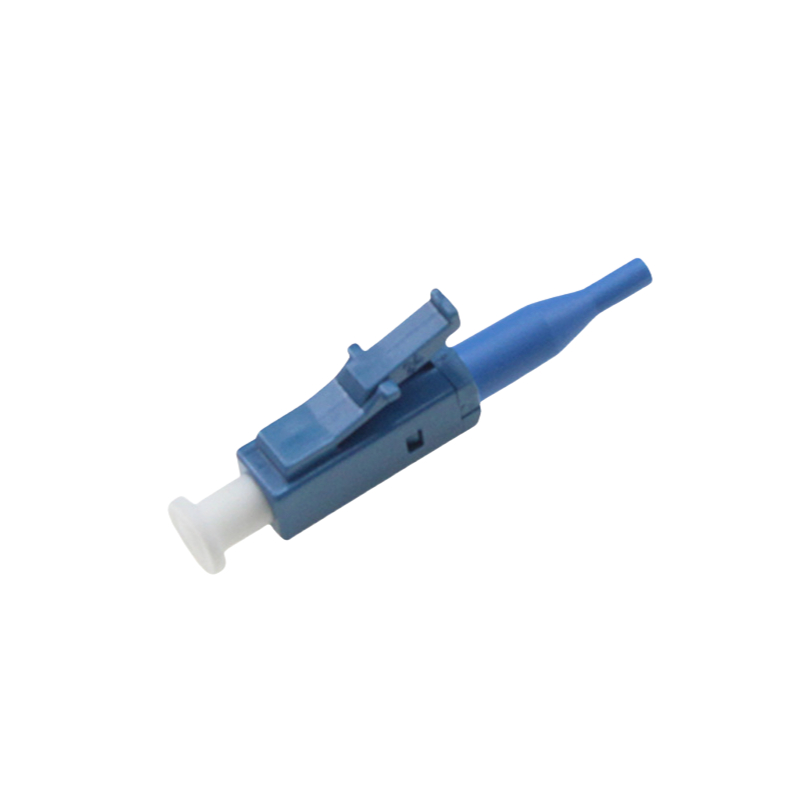

SM/MM LC/APC/UPC Connector, 0.9/2.0/3.0mm Boot Size Optional
◎ P/N: 61186
◎ Attention: For a formal quote, please send product details to sales@fiber-life.com.
Delivery: Order today and it will be shipped before from the U.S. or Hong Kong via FedEx/DHL/UPS. Free shipping on orders over US$200.
Warranty: Fiber-Life offers a 1-year warranty, 30-day returns, and 30-day exchanges.
$1.10 – $2.10
SM/MM LC/APC/UPC Connector, 0.9/2.0/3.0mm Boot Size Optional
The SM/MM LC/APC/UPC Connector, 0.9/2.0/3.0mm Boot Size Optional is a versatile connector designed for various optical communication scenarios. SM (Single-Mode) connectors are ideal for long-distance, high-bandwidth transmission, while MM (Multi-Mode) connectors are suited for short-distance communication and local area networks. The connector types include LC (compact, high-density connector), APC (angled physical contact with an 8° tilt for low reflection loss, suitable for high-precision networks), and UPC (ultra physical contact, ideal for applications with moderate reflection sensitivity). The optional boot sizes (0.9mm, 2.0mm, and 3.0mm) accommodate bare fibers, tight-buffered fibers, and jacketed fibers, respectively, ensuring compatibility with different mechanical protection needs. Widely used in data centers, FTTH (Fiber to the Home), telecommunications, and CATV networks, this connector offers an efficient and reliable optical connection solution.
Specification
Adapter Type | LC | Fiber Count | Simplex/Duplex |
Fiber Mode | Singlemode/Multimode | Boot Size | 0.9mm/2.0mm/3.0mm |
Insertion Loss | 0.20dB | Return Loss | SingleMode UPC≥ 50dB, APC≥ 60dB Multimode UPC≥ 30dB |
Dimension
Left: 0.9mm Boot Size LC Connector, Right: 2.0/3.0mm Boot Size LC Connector
5 |
|
0 |
4 |
|
0 |
3 |
|
0 |
2 |
|
0 |
1 |
|
0 |
