High Power SMA905 Fiber Optic Connector

The High Power SMA905 Fiber Optic Connector is designed for high-power optical applications, such as laser systems, medical devices, and scientific research. Known for its durability and precision, it efficiently handles high optical power levels, minimizing power loss and ensuring reliable signal transmission. Featuring a robust ferrule for precise fiber alignment, the SMA905 connector is compatible with both single-mode and multi-mode fibers, offering low insertion loss and excellent coupling efficiency. Ideal for use in industrial lasers, optical sensors, and fiber amplifiers, this connector is essential for systems requiring reliable, high-performance optical connections under demanding conditions.

Specifications

Ferrule Material	Ferrule Outer Diameter(mm)	Ferrule Length(mm)	Ferrule Hole Diameter Tolerance(μm)	Coaxiality	Suitable For Optical Fiber Cladding
Stainless Steel Ferrule	3.17±0.002	9.85±0.01	125+3	≤0.015	≤125μm
			220+5	≤0.020	≤220μm
			330+5	≤0.020	≤330μm
			440+5	≤0.020	≤440μm
			660+5	≤0.020	≤660μm
			880+5	≤0.020	≤880μm
			1050+10	≤0.025	≤1050μm
			1100+15	≤0.03	≤1100μm
Ceramic Ferrule	3.17±0.002	9.85±0.01	125+2	≤0.010	≤125μm
			220+3	≤0.015	≤220μm
			330+3	≤0.015	≤330μm
			440+3	≤0.015	≤440μm
			660+3	≤0.015	≤660μm
			880+3	≤0.015	≤880μm
			1050+8	≤0.020	≤1050μm
			1100+13	≤0.025	≤1100μm

Features

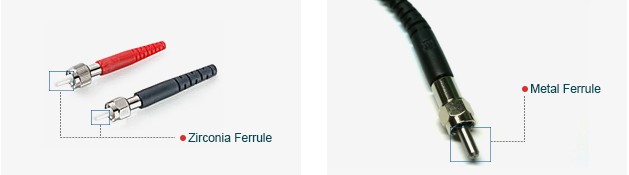

The difference between metal ferrule and zirconia ferrule.

The difference between metal ferrule and zirconia ferrule in SMA905 connector

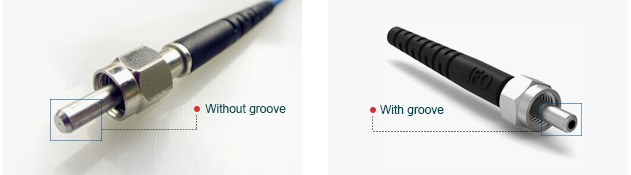

Two types of metal ferrule (Default without groove).

Two types of metal ferrules for SMA905 connectors

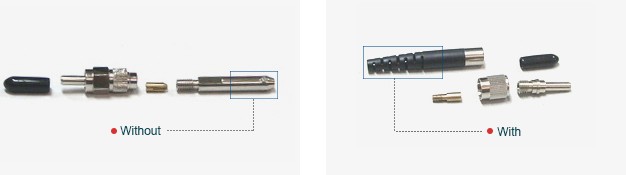

SMA905 connector with extended tailstock.

SMA905 connector with extended tailstock
