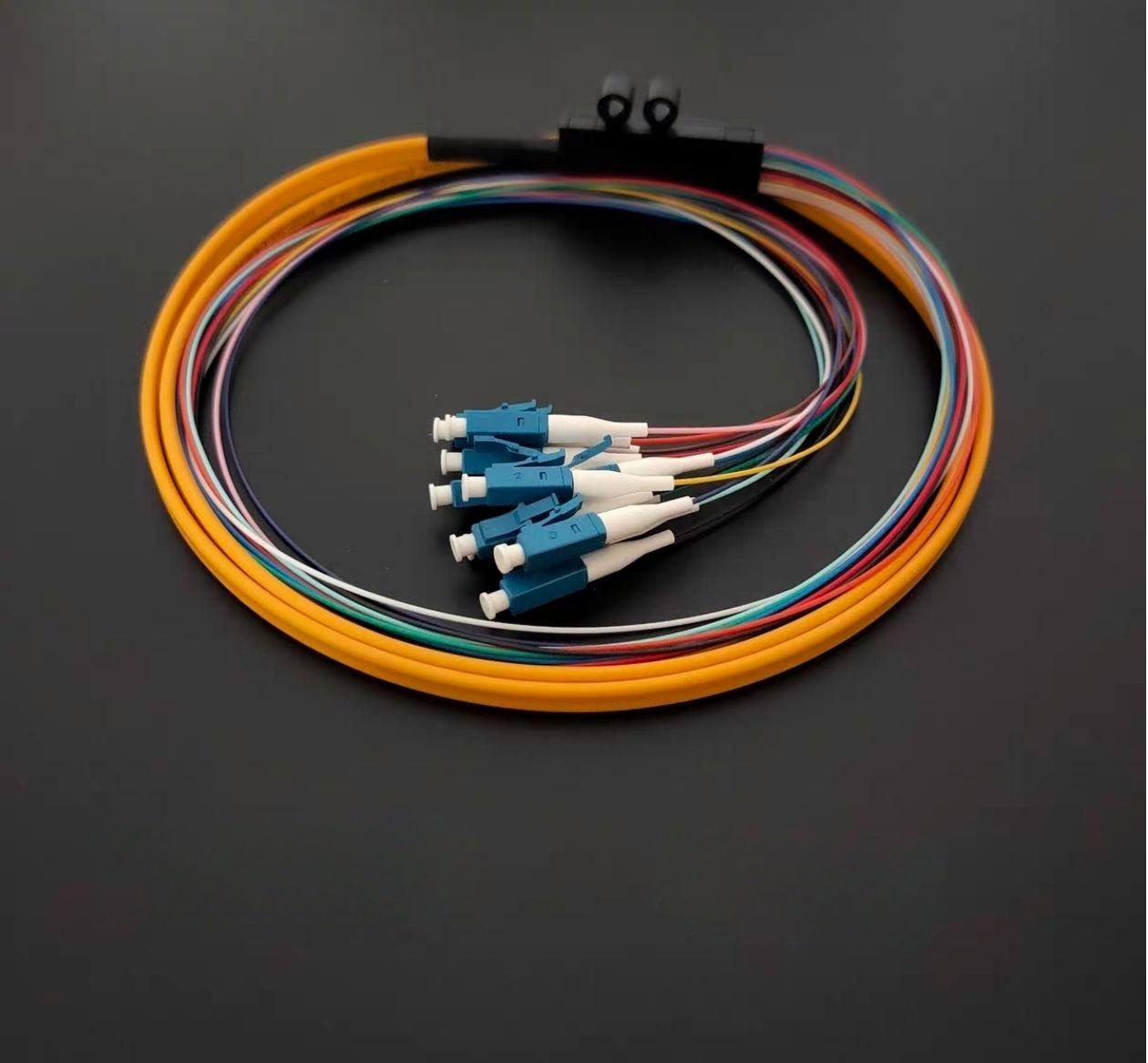

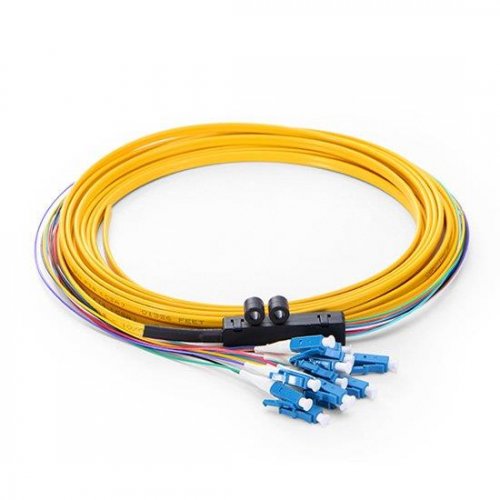

Customized OS2 Single Mode 4-12 Fibers LC/SC/FC/ST/E2000(LSH) Ribbon Fiber Optic Pigtail
◎ P/N: #66126
◎ Attention: For official offers, send product details to sales@fiber-life.com.
Delivery: Order Today, will ship out before from U.S. or HK by FedEx/DHL/UPS (The fastest and best one), and Free Shipping on orders over US $200.
Warranty: fiber-life support 1-Year Warranty, 30-Day Returns and 30-Day Exchange.
$8.90 – $90.00
4-12 Fibers LC/SC/FC/ST/E2000(LSH) OS2 Single Mode Ribbon Fiber Optic Pigtail
A ribbon fiber optic pigtail is a high-density cable solution designed for efficient management and splicing of multiple optical fibers. Featuring a flat, ribbon-like configuration with fibers arranged in parallel rows, these pigtails allow for mass fusion splicing, where all fibers can be spliced simultaneously, significantly reducing installation time and complexity. Pre-terminated with connectors like LC, SC, or E2000(LSH) on one end and bare fibers on the other, ribbon fiber pigtails are ideal for use in data centers, telecommunications networks, and fiber-to-the-home (FTTH) deployments, where space efficiency and high reliability are paramount.
Specifications
| Connector Type | LC/SC/FC/ST/E2000(LSH) | Polish Type | UPC/APC |
| Fiber Mode | OS2 9/125μm | Wavelength | 1310/1550nm |
| Cable Type | Ribbon | Fiber Count | 4/6/8/12 |
| Fiber Grade | G.657.A1 | Min. Bend Radius (Color-coded) | 10mm |
| Insertion Loss (dB) | ≤0.3 | Return Loss (dB) | UPC≥50, APC≥60 (LC/SC/ST/FC) UPC≥55, APC≥75 (LSH) |
| Attenuation At 1310nm | 0.36 dB/km | Attenuation At 1550nm | 0.22 dB/km |
| Cable Jacket | PVC/LSZH | Cable Outside Diameter (OD) | 0.9mm |
| Operating Temperature | -40~75°C | Storage Temperature | -45~85°C |
Quality Certifications
.svg)
Feature
| Length | 1m, 1.5m, 2m, 3m, 5m, 10m, 20m |
|---|---|
| Fiber Count | 4 Fibers, 6 Fibers, 8 Fibers, 12 Fibers |
| Connector | LC/UPC, SC/UPC, FC/UPC, ST/UPC, E2000(LSH)/UPC, LC/APC, SC/APC, FC/APC, ST/APC, E2000(LSH)/APC |
| Cable Jacket | PVC, LSZH |
| Cable Diameter | 0.9mm |
