3 Paddles Fiber Polarization Controller, Ø56mm Loop Diameter

22 sold in last 3 hours

◎ P/N: 69452

◎ Attention: For a formal quote, send product details to sales@fiber-life.com.

Customized 1x2 1310-1550nm Polarization Beam Combiner/Splitter(PBC/PBS)-2Delivery: Order Today, will ship out before from U.S. or HK by FedEx/DHL/UPS (The fastest and best one), and Free Shipping on orders over US $200.

Customized 1x2 1310-1550nm Polarization Beam Combiner/Splitter(PBC/PBS)-3Warranty: fiber-life support 1-Year Warranty, 30-Day Returns and 30-Day Exchange.


  Share

$242.37$375.44

Custom Details

3 Paddles Fiber Polarization Controller, Ø56mm Loop Diameter

The 3 Paddles Fiber Polarization Controller with a Ø56mm loop diameter is an essential optical device designed to control the polarization of light in fiber optic systems. Featuring three adjustable paddles, this controller allows precise manipulation of the light’s polarization state by independently adjusting each paddle. The loop diameter of Ø56mm refers to the physical size of the fiber loop, which affects the device’s compatibility and performance in various optical setups. This polarization controller is widely used in applications such as polarization-maintaining fiber systems, optical sensors, and telecom networks, ensuring optimal signal quality and system performance by maintaining the desired polarization state.


Specifications

Parameter Value
Number of Paddles 3
Loop Diameter (mm) 56
Dimension (mm) L273 X W25
Fiber Type None 460-HP 630-HP 780-HP 1060-XP SMF-28e
Operating Wavelength Range (nm) N/A 450-600 600-770 780-970 980-1600 1260-1650
Test Wavelength Range (nm) N/A 488 633 780 1060 1550
Mode Field Diameter (μm) N/A 3.5±0.5μm@515nm 4.0±0.5μm@630nm 5.0±0.5μm@850nm 6.2±0.5μm@1060nm 9.7±0.5μm@1550nm
Numerical Aperture N/A 0.13 0.13 0.13 0.14 0.14
Cable Diameter (μm) 900
Number of winding turns N/A 3-2-3 4-3-4 2-4-2 2-4-2 3-6-3
Total Fiber Length (m) 4 5
Connector FC/APC
Bend Loss (dB) ≤0.1

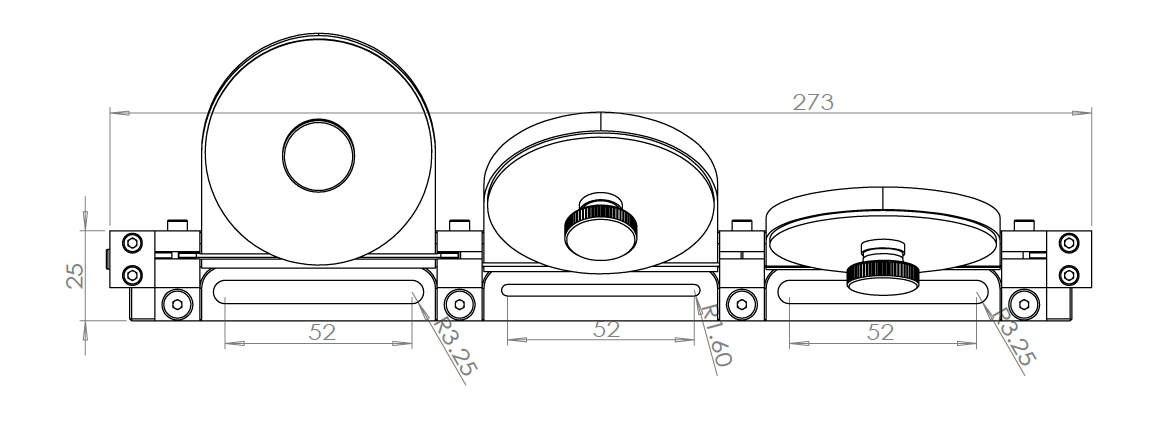

Dimension Drawing (Unit: mm)

3 Paddles Fiber Polarization Controller, Ø56mm Loop Diameter Dimension Drawing
