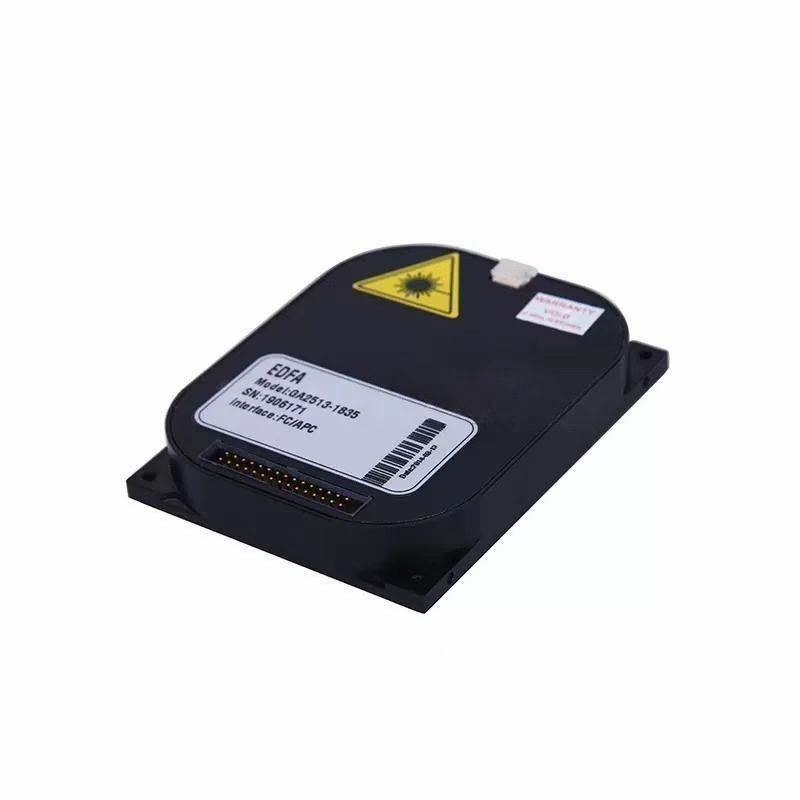

20dBm Output Fiber Amplifier EDFA Module For C/L-Band DWDM Solution
◎ P/N: #72086
◎ Attention: For official offers, send product details to sales@fiber-life.com.
Delivery: Order Today, will ship out before from U.S. or HK by FedEx/DHL/UPS (The fastest and best one), and Free Shipping on orders over US $200.
Warranty: fiber-life support 1-Year Warranty, 30-Day Returns and 30-Day Exchange.
$1,790.00
20dBm Output Fiber Amplifier EDFA Module For C/L-Band DWDM Solution
The DWDM EDFA module supports C/L-Band DWDM signal amplification, the main characters are low noise figure, high gain and high output power. The typical noise figure is about 4.5dB, the maximum gain can reach 30dB, and the maximum output power can reach 20dBm. DWDM EDFA are widely used in backbone networks, metro networks, data center.
Specifications
| Size | 90 x 70 x 15 mm | Maximum Output Power | 20 dBm |
| Maximum Gain | 30 dB | Typical Noise Figure | 4.5 dB |
| Gain Flatness | ＜1.5 dB | Operating Wavelength | C-Band 40/80 Wavelength: 1529~1561 nm C-Band 48/96 Wavelength: 1528~1568 nm C-Band 120 Wavelength: 1524~1572 nm L-Band 100 Wavelength: 1575~1618 nm |
| Operating Mode | AGC(FGA) | Supply Voltage | ≥3.3VDC/5VDC |
Feature● Low Noise Figure ● High Reliability ● High Saturated Output Power ● AGC/APC/ACC Control Mode ● Compact Size |
Application● Backbone Network ● Metro Network ● Data Center |
Dimensional Drawing
