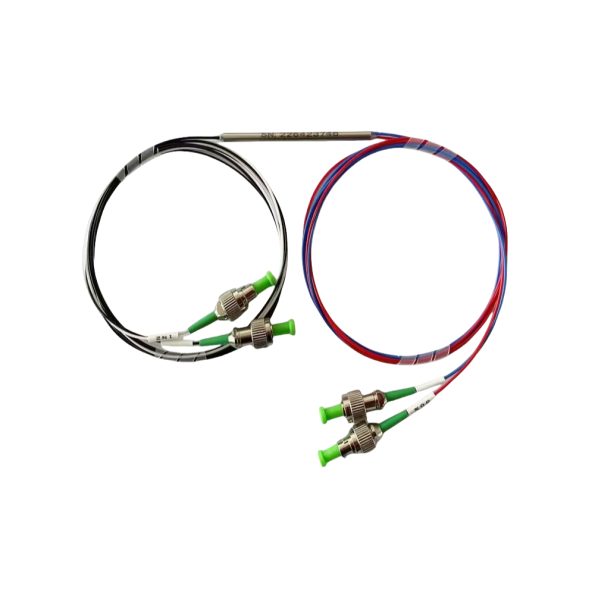

1310/1550nm 2×2 Filter Type Singlemode Fiber Splitter

17 sold in last 1 hour

◎ P/N: 77572

◎ Attention: For a formal quote, send product details to sales@fiber-life.com.

27/30/33dBm Output 32 Ports CATV EYDFA High Power Fiber Amplifier_3Delivery: Order Today, will ship out before from U.S. or HK by FedEx/DHL/UPS (The fastest and best one), and Free Shipping on orders over US $200.

27/30/33dBm Output 32 Ports CATV EYDFA High Power Fiber Amplifier_4Warranty: Fiber-Life support 1-Year Warranty, 30-Day Returns and 30-Day Exchange.


  Share

$56.00$116.00

Custom Details

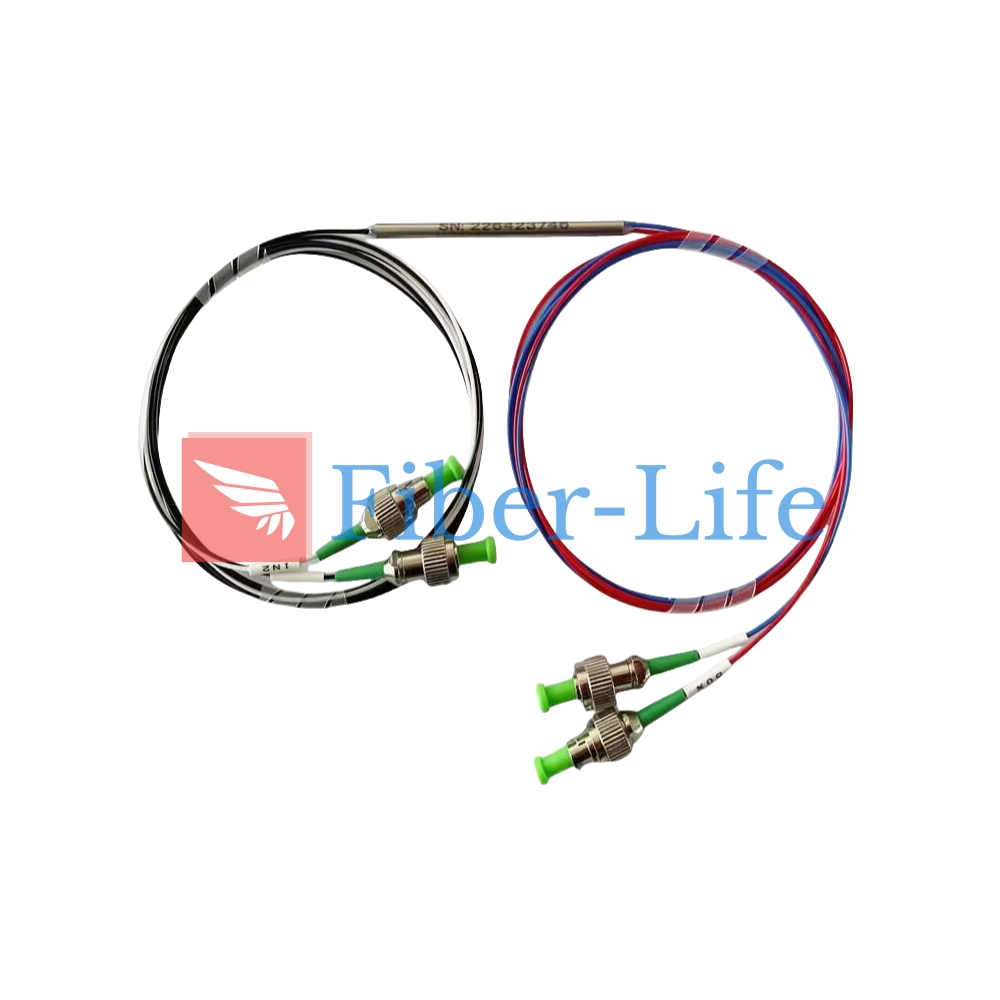

1310/1550nm 2×2 Filter Type Singlemode Fiber Splitter

The 1310/1550nm 2×2 Filter Type Singlemode Fiber Splitter is a fiber optic splitter designed for wavelengths of 1310nm and 1550nm, commonly used in optical communication. It features a 2×2 configuration with two input and two output ports, allowing the distribution of optical signals. The “Filter Type” indicates it uses optical filters to separate or combine signals based on wavelength. It is compatible with single-mode fiber, making it suitable for long-distance, high-speed communication. This splitter is widely used in Wavelength Division Multiplexing (WDM) systems and fiber optic networks for signal distribution and management. Key characteristics include low insertion loss, high isolation to prevent crosstalk, and reliable performance in various environments.


Specifications

Parameter Value
Operating Wavelength (nm) 1310/1550±50
Insertion Loss (dB) (50/50) ≤3.9/3.9
Insertion Loss (dB) (10/90) ≤11.3/1.1
Insertion Loss (dB) (5/95) ≤14.5/0.9
Polarization Dependent Loss (dB) ≤0.15
Return Loss (dB) ≥50
Directivity (dB) ≥50
Maximum Power Handling (mW) 500
Operating Temperature (°C) -10~+70
Storage Temperature (°C) -40~+85
Fiber Type SMF-28e
Package Dimension (mm) (250μm, 900μm) Ø5.5 × L38 (Steel Tube)
Package Dimension (mm) (2.0mm, 3.0mm) L90 × W20 × H10 (ABS Box)
