VF45 To LC/UPC Duplex OM2 MultiMode Fiber Patch Cable

Name: VF45 To LC/UPC Duplex OM2 MultiMode Fiber Patch Cable
SKU: 78176
Availability: InStock

9 sold in last 16 hours

◎ P/N: 78176

◎ Attention: For a formal quote, please send product details to sales@fiber-life.com.

Delivery: Order today and it will be shipped before from the U.S. or Hong Kong via FedEx/DHL/UPS. Free shipping on orders over US$200.

Warranty: Fiber-Life offers a 1-year warranty, 30-day returns, and 30-day exchanges.

$55.40 – $60.20

Length

Cable Diameter

Cable Jacket

Connector A

Connector B

Clear

Custom Details

Product total

Options total

Grand total

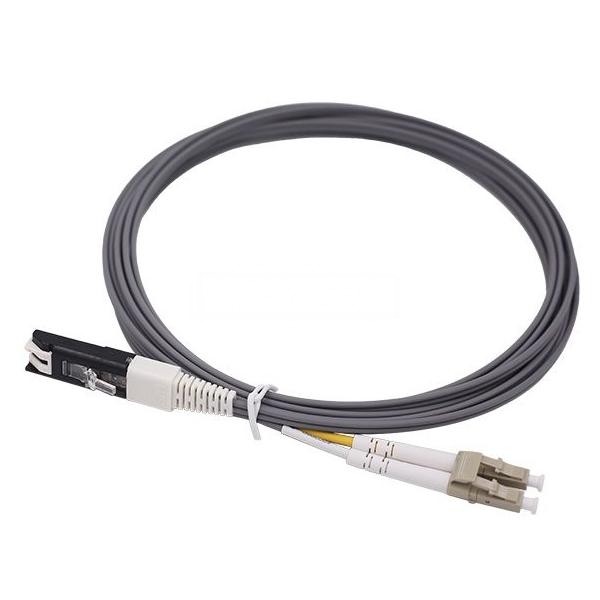

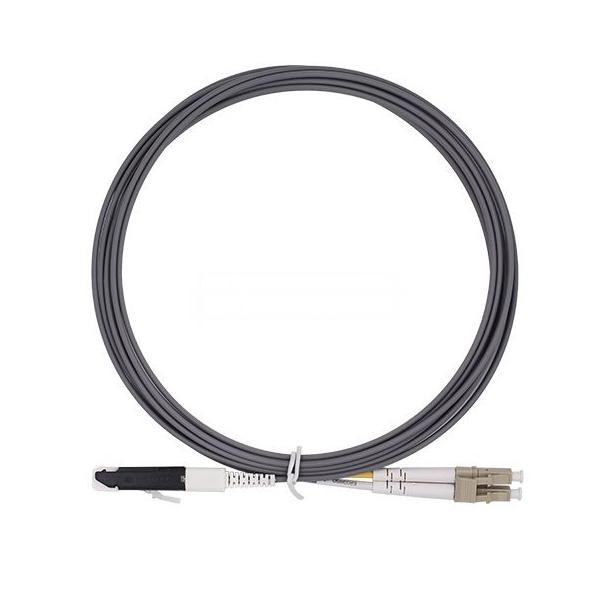

VF45 To LC/UPC Duplex OM2 MultiMode Fiber Patch Cable, 2.0MM, LSZH, Grey

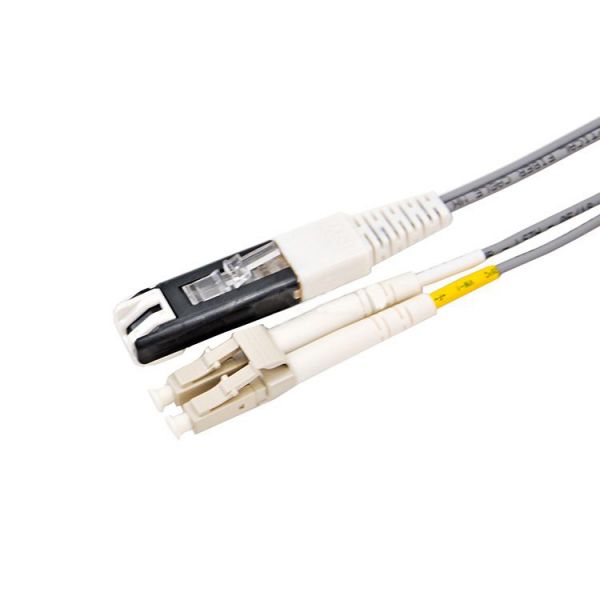

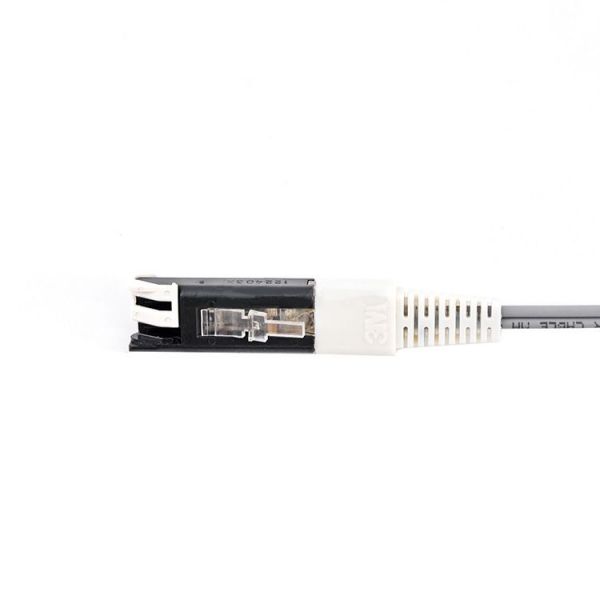

The VF45 To LC/UPC Duplex OM2 MultiMode Fiber Patch Cable combines this easy-to-use VF-45 connector on one end with an LC duplex connector on the other, designed for high-speed data transmission in multi-mode fiber optic networks. The VF-45 connector offers the same ease of use as an RJ-45 connector. The Volition VF-45 socket and fiber patch cable represent the latest duplex fiber optic interconnection for fiber-to-the-desk (FTTD) networks, designed to function similarly to an 8-pin modular socket. This brings the same simplicity to fiber optic applications as the RJ-45 interface does for copper cabling. VF-45 sockets can be field-terminated on distribution panels in telecom rooms or building horizontal wiring, with termination of a two-fiber cable taking less than one minute.

Specifications

Item	Value
Fiber Type	OM2
Connector Type	VF45-LC/UPC
Connector Style	Crimp, Polish
Attenuation	< 0.75dB max
Reflection	> 20dB max
Mating Durability	500 Cycles, <0.75dB max
Strength of Coupling	> 33N, < 0.75dB max
Plug Cable Retention	Tensile load >66 N, Side Pull >6.6 N, <0.75dB max
Plug Flex	100 Cycles, ±90 Degrees, 0.5kg, < 0.75dB max
Plug Twist	10 Cycles, ±2.5 Revolutions, 15N, < 0.75dB max
Cold	-10°C for 96 Hours, < 0.3dB Increase
Heat	+60°C for 14 Days, < 0.3dB Increase
Thermal Cycling	-10°C to 60°C, 5 Cycles, < 0.3dB Increase
Vibration	10 to 55 Hz, 30 min. Each Axis, < 0.3dB Increase

Features	Applications
Plug in Socket Design (No Adapter Required)	Data Center, CATV, Fiber Test Equipment
High Density Duplex Interconnection	LAN, Telecommunication Networks
V-Groove Connection and Injection Molding Parts	FTTx, Communication Rooms
VF-45 Latch Can Be Easily Lock On and Not Easy Drop Off	Fiber Optic Communication System, Defense Combat Readiness
