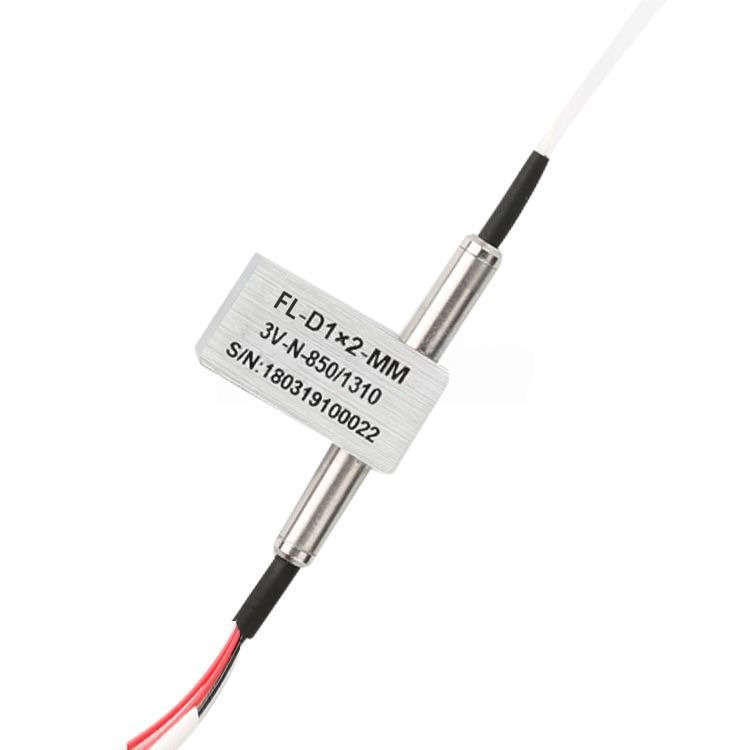

Dual 1×2 Opto-Mechanical Bidi Optical Switch
The D1x2 Opto-Mechanical Bi-Directional Fiber Optic Switch connects optical channels by redirecting two incoming optical signals into four output fibers. This is achieved through an opto-mechanical configuration, activated via an electrical control signal. The switch features integrated electrical position sensors for precise operation.
Built on thin-film filter technology, this series provides a robust method for altering the light path. The simplified platform design ensures high reliability and cost efficiency. Additionally, its novel mechanical structure minimizes moving part position sensitivity, resulting in exceptional stability and reduced manufacturing costs.
FiberLife offers high-performance yet cost-effective opto-mechanical fiber optic switches. Each switch undergoes rigorous in-house testing before shipment, ensuring perfect physical condition and optimal functionality upon arrival. We provide a wide range of configurations, including 1×1, 1×2, 1×4, 1×8, 2×2, 2×2A, 2×2B, 2×2BA, Dual 2×2, and Dual 2×2 Bypass, available for both single-mode and multimode fibers.
For more information about opto-mechanical fiber optic switches, please contact us at sales@fiber-life.com.
Specifications
Parameter | MMF | SMF |
---|---|---|
Wavelength Range | 850±40nm | 1260 ~ 1650nm |
Test Wavelength | 850nm | 1310/1490/1550/1625/1650nm |
Insertion Loss | Typ: 0.6dB, Max: 1.0dB | Typ: 0.5dB, Max: 0.8dB |
Return Loss | ≥30dB | ≥50dB |
Crosstalk | ≥35dB | ≥55dB |
Polarization Dependent Loss | ≤0.05dB | |
Wavelength Dependent Loss | ≤0.25dB | |
Temperature Dependent Loss | ≤0.25dB | |
Repeatability | ≤0.02dB | |
Power Supply | 3V or 5V | |
Lifetime | ≥10⁷ Times | |
Switch Time | ≤8ms | |
Transmission Power | ≤500mW | |
Operating Temperature | -20 ~ +70°C | |
Storage Temperature | -40 ~ +85°C | |
Weight | 16g | |
Dimension (L×W×H) | 27.0 × 12.0 × 8.2mm |
Note: Above specifications are for device without connector.
Electric
Specifications | Voltage | Current | Resistance |
5V Latching | 4.5 ~ 5.5 | 36 ~ 44mA | 125Ω |
5V Non-Latching | 4.5 ~ 5.5 | 26 ~ 32mA | 175Ω |
3V Latching | 2.7 ~ 3.3 | 54 ~ 66mA | 50Ω |
3V Non-Latching | 2.7 ~ 3.3 | 39 ~ 47mA | 70Ω |
Pins
Type | Pin | Electric Drive | Status Sensor | ||||||
D1×2 | Optical Pin | Pin1 | Pin5 | Pin6 | Pin10 | Pin2-3 | Pin3-4 | Pin7-8 | Pin8-9 |
Latching | P1-P2,P1′-P2′ | V+ | GND | — | — | Open | Close | Close | Open |
P1-P3,P1′-P3′ | — | — | GND | V+ | Close | Open | Open | Close | |
Non-latching | P1-P2,P1′-P2′ | V+ | — | — | GND | Open | Close | Close | Open |
P1-P3,P1′-P3′ | — | — | — | — | Close | Open | Open | Close |
Optical Route
Mechanical Dimensions (Unit: mm)
