In-Line Fiber Polarization Controller

6 sold in last 3 hours

◎ P/N: 94806

◎ Attention: For a formal quote, please send product details to sales@fiber-life.com.

DeliveryDelivery: Order today and it will be shipped before from the U.S. or Hong Kong via FedEx/DHL/UPS. Free shipping on orders over US$200.

WarrantyWarranty: Fiber-Life offers a 1-year warranty, 30-day returns, and 30-day exchanges.


  Share

$479.63

Product total
Options total
Grand total

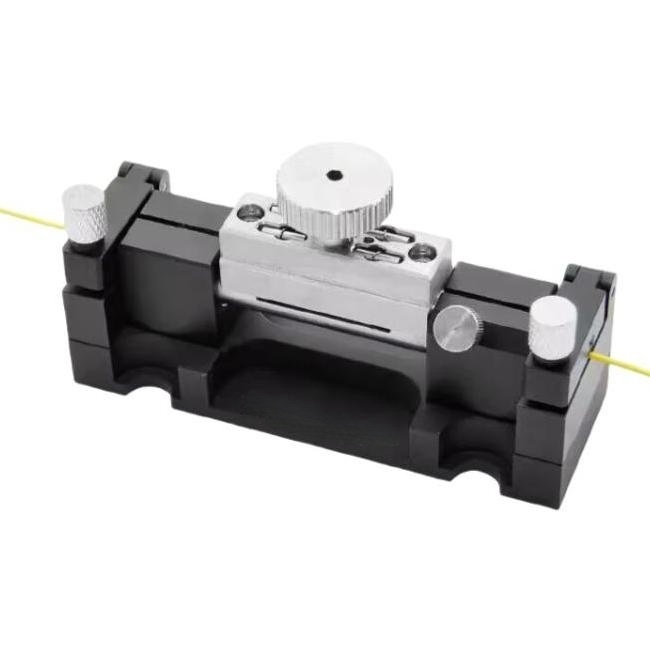

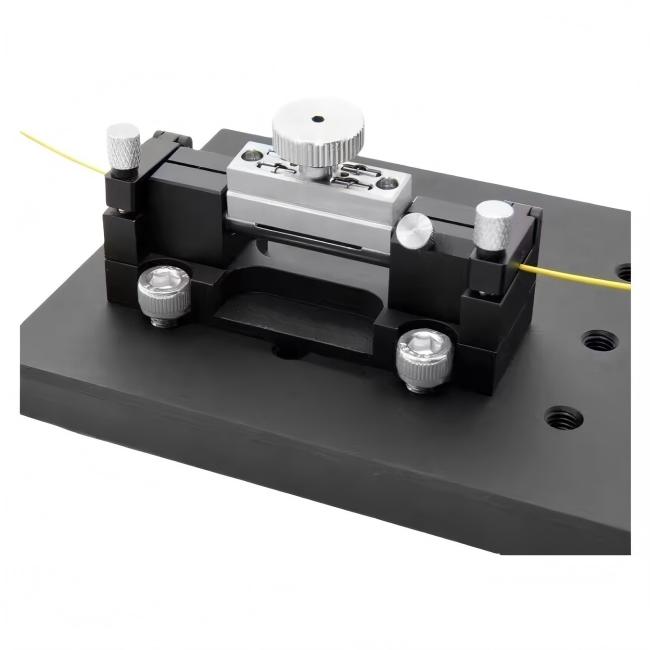

In-Line Fiber Polarization Controller

The In-Line Fiber Polarization Controller consists of a rotatable fiber squeezer and two fiber clamps. Stress birefringence is generated in the single-mode fiber by mechanically squeezing the fiber (remember to control the squeezing force to avoid damaging the fiber). This is equivalent to a variable rotating wave plate, the polarization angle and delay of which can be adjusted continuously and individually, thereby converting any input polarization state into the desired output polarization state.


Features

✅ Convert any input polarization state to any desired output polarization state.
✅ The fiber squeeze design is equivalent to a variable wave plate inside the fiber.
✅ Insensitive to wavelength variations, vibrations, and fiber types.
✅ Versions for Ø250 µm Bare Fiber or Ø900 µm Tight-Buffer Jacketed Fiber.

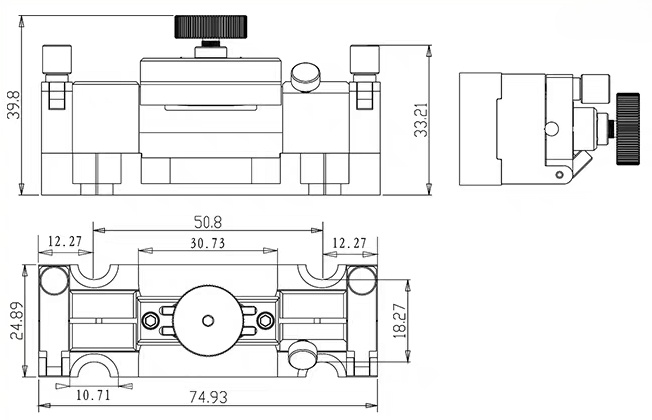

Dimension Drawing (Unit: mm)

In-Line Fiber Polarization Controller Dimension Drawing
