UTP Cable Explained: How Twisted Pairs Reduce Crosstalk

UTP cable is commonly used to connect switches, routers, computers, wireless access points and other Ethernet devices. A twisted pair UTP cable contains insulated copper conductors arranged in pairs, with each pair twisted to help control interference and maintain signal quality.

Understanding how this structure works can help you select the right cable category, conductor gauge and shielding type for your network.

1. What Is a Twisted Pair UTP Cable?

UTP stands for Unshielded Twisted Pair. A standard Ethernet UTP cable normally contains eight copper conductors arranged into four color-coded pairs.

Unlike shielded Ethernet cable, UTP does not use metallic foil or braided shielding. Instead, it relies mainly on balanced signal transmission and the physical twisting of each wire pair to reduce interference.

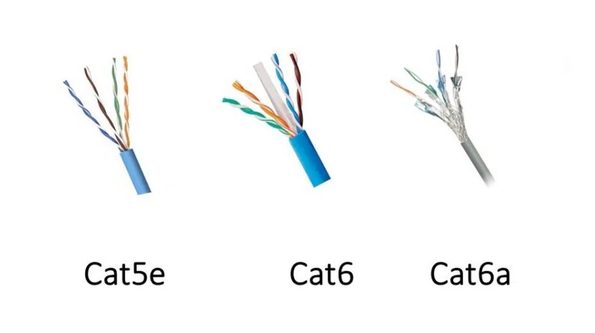

Common UTP cable categories include:

• Cat5e: Commonly used for Gigabit Ethernet.
• Cat6: Offers better crosstalk performance than Cat5e.
• Cat6a: Supports higher-frequency applications and is designed for 10GBASE-T over a standards-compliant channel of up to 100 meters.

Cable category is important, but actual performance also depends on conductor quality, connector termination and installation.

2. Why Are Ethernet Wires Twisted?

A signal traveling through a copper conductor creates an electromagnetic field. This field can interfere with nearby conductors and introduce unwanted signals.

Twisting the two conductors in a pair continually changes their physical positions. This helps the receiving equipment reject noise that affects both conductors and reduces signal coupling between adjacent pairs.

The twisted structure helps control:

• Electromagnetic interference from nearby equipment;
• Signal coupling between pairs inside the cable;
• Crosstalk at higher transmission frequencies;
• Electromagnetic emissions generated by the cable.

The four pairs usually have different twist rates. This prevents adjacent pairs from repeatedly aligning in the same position, which could increase interference between them.

3. What Is Crosstalk in a UTP Cable?

Crosstalk occurs when the signal carried by one wire pair creates an unwanted signal in another pair.

Two common forms are:

• NEXT—Near-End Crosstalk: Interference measured near the transmitting end.
• FEXT—Far-End Crosstalk: Interference measured at the opposite end of the cable.

Although pair twisting reduces crosstalk, a UTP cable is not completely immune to interference. Performance may be affected by poor termination, excessive bending, cable compression or installation near strong electrical noise sources.

To protect cable performance:

• Maintain the twists as close as practical to the connector.
• Avoid sharp bends and overtightened cable ties.
• Do not crush the cable under heavy equipment.
• Keep UTP cables away from motors, transformers and power conductors.
• Use connectors and patch panels rated for the required cable category.

4. When Is Cat6a UTP a Good Choice?

Cat6a is designed to support 10 Gigabit Ethernet at frequencies up to 500 MHz over a standards-compliant channel of up to 100 meters. It also provides improved control of internal and external crosstalk compared with lower cable categories.

Cat6a UTP is suitable for many controlled indoor environments, including:

• Office and enterprise networks;
• Switch-to-patch-panel connections;
• Server and network equipment patching;
• Wireless access points;
• IP cameras and VoIP phones;
• Compatible PoE devices.

The Fiber-Life Cat6a UTP Ethernet patch cable is available in multiple lengths, colors and conductor gauges. Its listed options include 24AWG, 26AWG and 28AWG conductors, as well as PVC and LSZH jackets.

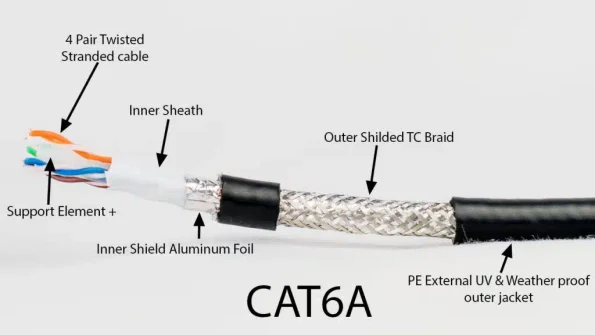

Strong-EMI environments may require a shielded alternative. Industrial equipment, high-current power systems and other electrical noise sources can increase the risk of interference. In these situations, consider a properly installed Cat6a S/FTP shielded patch cable.

5. How to Choose the Right Conductor Gauge

A lower AWG number represents a larger conductor. The right choice depends on cable length, density, flexibility and PoE requirements.

5.1 24AWG

The larger conductor generally provides lower electrical resistance. It may be suitable for longer connections or higher-power PoE applications, but the cable is usually thicker and less flexible.

5.2 26AWG

This option provides a practical balance between conductor size and flexibility for many general patching applications.

5.3 28AWG

The smaller cable diameter can improve airflow and cable management in high-density racks. However, cable length, bundle size and PoE load should be evaluated because smaller conductors have higher resistance.

AWG should not be selected by size alone. Always consider equipment requirements, channel length, ambient temperature and applicable cabling standards.

6. PVC vs. LSZH Cable Jackets

The jacket affects where the cable can be safely installed.

1. PVC: Commonly used for general indoor patch connections where building regulations permit it.
2. LSZH: Produces less smoke and fewer corrosive halogen gases when exposed to fire and may be required in enclosed or occupied environments.

Check the local fire and building requirements before selecting a jacket material.

7. UTP Cable Selection Checklist

Before purchasing a UTP Ethernet cable, confirm:

1. Required Ethernet speed;
2. Total channel length;
3. Level of electromagnetic interference;
4. PoE power requirements;
5. Suitable conductor gauge;
6. Required jacket and fire rating;
7. Cable density and available rack space;
8. Compatibility of connectors, jacks and patch panels.

For a standard Gigabit Ethernet installation, a Cat5e UTP patch cable may be sufficient. A Cat6 UTP Ethernet cable provides improved performance, while Cat6a is the stronger choice when a properly designed 10 Gigabit copper channel is required.

8. Frequently Asked Questions

8.1 Is UTP the Same as Twisted-Pair Cable?

UTP is one type of twisted-pair cable. Its complete name is unshielded twisted pair. Shielded Ethernet cables also use twisted pairs but add foil, braid or both.

8.2 Can Cat6a UTP Support 10Gbps?

A standards-compliant Cat6a channel is designed to support 10GBASE-T over distances up to 100 meters. Actual performance depends on the complete channel, component quality and correct installation.

8.3 Can UTP Cable Be Used for PoE?

Yes. Compatible UTP cable can carry both data and electrical power. Conductor gauge, cable length, bundle size and operating temperature become especially important in higher-power PoE applications.

Conclusion

A twisted pair UTP cable controls interference by arranging its copper conductors into carefully twisted pairs. Preserving this structure during installation and selecting the correct category, gauge and jacket are essential for reliable network performance.
