What Is a Fiber Optic Pigtail? Types, Uses and Selection Guide

Reliable fiber termination is essential for maintaining low optical loss and stable network performance. Instead of installing and polishing a connector directly onto a field cable, technicians often splice the cable to a factory-terminated fiber optic pigtail.

This approach combines the consistency of a factory-installed connector with the reliability of fusion splicing. Fiber pigtails are therefore widely used in telecommunications networks, data centers, FTTH systems, optical distribution frames and industrial fiber installations.

This guide explains what a fiber optic pigtail is, how it differs from a patch cord, the main pigtail types and the factors to consider when selecting one.

What Is a Fiber Optic Pigtail?

A fiber optic pigtail is a short length of optical fiber with a factory-installed connector on one end and exposed, unterminated fiber on the other.

The connectorized end is plugged into an adapter, patch panel or optical device. The unterminated end is usually fusion spliced to an incoming distribution cable, although mechanical splicing may also be used in certain installations.

A typical fiber termination process includes:

  1. Preparing and stripping the incoming fiber cable.
  2. Splicing the cable fiber to the bare end of the pigtail.
  3. Protecting the splice with a heat-shrink splice sleeve.
  4. Organizing the splice and excess fiber inside a splice tray.
  5. Connecting the pigtail connector to an adapter or optical device.
  6. Inspecting, cleaning and testing the completed connection.

Because the connector is installed and polished under controlled factory conditions, a properly manufactured pigtail can provide more consistent optical performance than a connector terminated manually in the field.

Where Are Fiber Optic Pigtails Used?

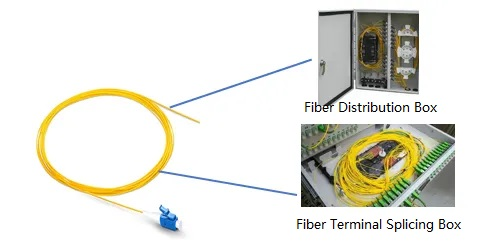

Where Are Fiber Optic Pigtails Used

Fiber pigtails are commonly installed wherever permanent fiber cables must be terminated at connector interfaces. Typical applications include:

  • Optical distribution frames
  • Fiber optic patch panels
  • Fiber terminal boxes
  • Fiber distribution boxes
  • FTTH and FTTx networks
  • Telecommunications equipment rooms
  • Data center fiber enclosures
  • CATV and broadband networks
  • Industrial communication systems
  • Outdoor fiber closures
  • Test and laboratory equipment

For example, fibers from an outdoor distribution cable may enter a terminal enclosure and be fusion spliced to SC/APC pigtails. The SC/APC connectors can then be connected to adapters on the front of the enclosure, creating accessible ports for subscriber or equipment connections.

Fiber Optic Pigtail vs. Fiber Patch Cord

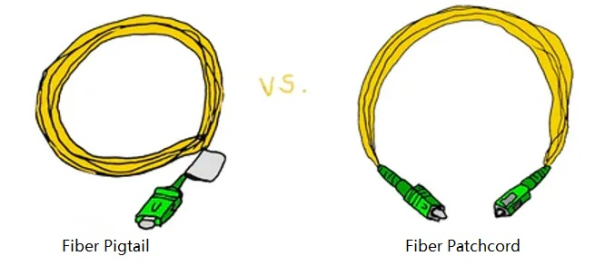

Fiber Optic Pigtail vs. Fiber Patch Cord

Fiber pigtails and patch cords may use similar fibers and connectors, but they serve different purposes.

FeatureFiber Optic PigtailFiber Optic Patch Cord
Connector configurationConnector on one end onlyConnectors on both ends
Opposite endBare or unterminated fiberFactory-terminated connector
Primary purposeSplicing and permanent terminationConnecting two optical ports
Typical installationInside patch panels, ODFs and terminal boxesBetween equipment, adapters and distribution panels
Cable constructionCommonly 0.9 mm buffered fiber; jacketed versions are also availableUsually protected by a 2.0 mm or 3.0 mm outer jacket
Installation methodFusion or mechanical splicingDirect plug-and-play connection

A patch cord is intended to connect two connectorized ports. A pigtail is intended to create a connectorized termination by splicing its bare end to another fiber.

Although a duplex patch cord can physically be cut into two connectorized lengths, purpose-built pigtails are generally preferable. They can be supplied with the required buffer construction, stripping length, fiber identification and individual test results.

Common Types of Fiber Optic Pigtails

Fiber pigtails can be classified by fiber mode, connector type, polishing method, cable construction, fiber count and operating environment.

1. Single-Mode and Multimode Pigtails

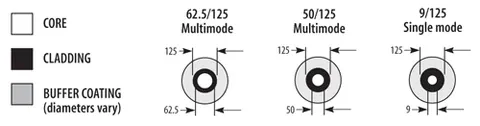

Single Mode and Multimode Pigtails

Single-Mode Fiber Pigtails

Single-mode pigtails typically use 9/125 μm fiber and are designed for long-distance or high-bandwidth optical transmission.

Common single-mode fiber options include:

  • OS2 single-mode fiber
  • G.652.D standard single-mode fiber
  • G.657.A1 and G.657.A2 bend-insensitive fiber
  • Specialty fibers for specific wavelengths or optical systems

Single-mode pigtails are widely used in telecommunications, FTTH, CATV, passive optical networks and long-distance data transmission.

Multimode Fiber Pigtails

Multimode pigtails use a larger fiber core and are generally selected for shorter transmission distances.

Common multimode categories include:

  • OM1: 62.5/125 μm
  • OM2: 50/125 μm
  • OM3: laser-optimized 50/125 μm
  • OM4: high-bandwidth laser-optimized 50/125 μm
  • OM5: wideband multimode 50/125 μm

OM3, OM4 and OM5 pigtails are commonly used in enterprise networks and data centers. The appropriate fiber category should match the installed cable plant, transceiver type, wavelength and transmission-distance requirements.

2. Connector Types

Fiber optic pigtails are available with a wide range of connector interfaces.

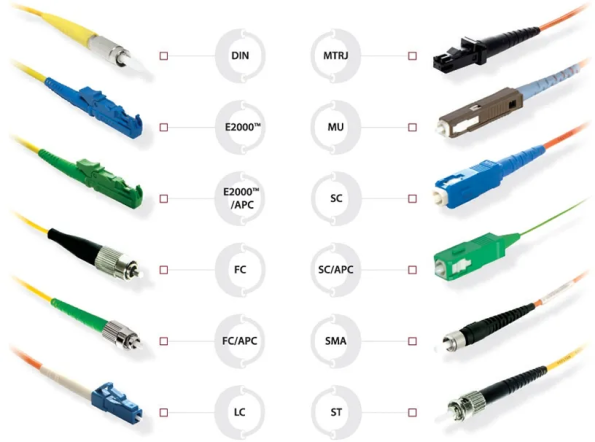

Fiber optic pigtails connectors

LC Pigtails

LC connectors use a compact 1.25 mm ferrule. Their small form factor makes them suitable for high-density patch panels, transceivers and data center equipment.

SC Pigtails

SC connectors use a push-pull coupling mechanism and a 2.5 mm ferrule. They are widely used in telecommunications, FTTH, CATV and general fiber distribution systems.

FC Pigtails

FC connectors use a threaded coupling mechanism that provides a secure connection. They are commonly found in test equipment, laboratories, measurement systems and applications exposed to vibration.

ST Pigtails

ST connectors use a bayonet-style coupling mechanism. They remain in use in some industrial networks, legacy telecommunications installations and multimode systems.

E2000 Pigtails

E2000 connectors incorporate a protective shutter that helps shield the ferrule from dust and accidental contact. They are used in high-performance telecommunications and optical distribution applications.

Other connector options, including MU, SMA and specialty connector types, may be selected for specific equipment or application requirements.

3. Connector Polishing Types

The connector end-face geometry affects back reflection, return-loss performance and system compatibility.

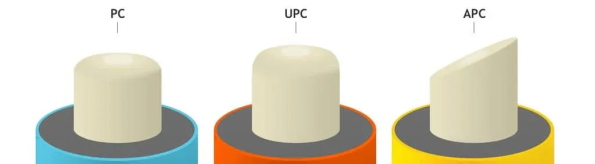

Connector Polishing Types

PC Polish

PC means Physical Contact. The ferrule is polished with a slightly curved end face so that the fiber cores make physical contact when two connectors are mated.

PC polish is an earlier physical-contact design and is less common in newly installed single-mode systems than UPC or APC polish.

UPC Polish

UPC means Ultra Physical Contact. It uses an improved polishing process to provide better fiber-to-fiber contact and lower back reflection than conventional PC polish.

UPC connectors are commonly used in Ethernet networks, digital transmission systems, test equipment and general telecommunications applications.

APC Polish

APC means Angled Physical Contact. The ferrule end face is typically polished at an angle to direct reflected light away from the fiber core.

APC connectors provide better return-loss performance and are commonly used in:

  • FTTH and passive optical networks
  • CATV systems
  • WDM networks
  • Analog optical transmission
  • Applications that are sensitive to back reflection

UPC and APC connectors must not be directly mated. Their end-face geometries are different, and mating them can cause excessive loss, unstable performance and permanent connector damage.

4. Cable and Buffer Construction

The pigtail construction should match the installation environment and the level of mechanical protection required.

0.9 mm Buffered Pigtails

A 0.9 mm pigtail is compact and easy to organize inside splice trays, patch panels and fiber distribution boxes. It is one of the most common constructions for indoor termination.

2.0 mm and 3.0 mm Jacketed Pigtails

Jacketed pigtails provide additional mechanical protection and are useful when the fiber is routed outside a protected splice tray or exposed to frequent handling.

Ribbon Fiber Pigtails

Ribbon pigtails contain multiple fibers arranged in a flat ribbon structure. They can support mass fusion splicing and are frequently used in high-fiber-count installations.

Bundle or Fan-Out Pigtails

Bundle pigtails contain multiple individually buffered fibers grouped together within a common assembly. Each fiber can be routed and spliced separately.

Armored Pigtails

Armored pigtails incorporate a protective metal tube or other reinforcement to resist crushing, pulling and rodent damage. They are suitable for industrial environments or installations requiring increased mechanical protection.

Waterproof Pigtails

Waterproof pigtails use sealed connectors, reinforced cable structures or outdoor-rated jackets. They are designed for telecommunications towers, outdoor equipment, industrial sites and other harsh environments.

5. Fiber Count

Fiber pigtails may be supplied as individual simplex units or as multi-fiber assemblies.

Common configurations include:

  • 1 fiber
  • 2 fibers
  • 4 fibers
  • 6 fibers
  • 8 fibers
  • 12 fibers
  • 24 fibers
  • Higher customized fiber counts

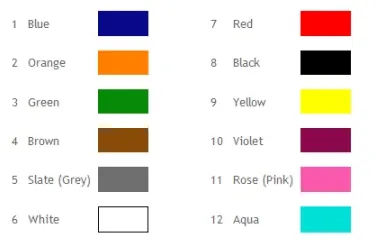

color coding Multi fiber pigtails

Multi-fiber pigtails should use a consistent color-coding sequence so that individual fibers can be identified correctly during splicing, testing and maintenance.

Benefits of Using Fiber Optic Pigtails

Consistent Connector Quality

The connector is installed, polished and tested in a controlled manufacturing environment, helping provide predictable insertion-loss and return-loss performance.

Faster Field Installation

Technicians do not need to install and polish each connector manually. They only need to prepare the fibers, perform the splice and organize the termination.

Reliable Fusion-Spliced Connection

Fusion splicing creates a permanent, low-loss joint between the incoming cable and the pigtail when the correct splicing procedures are followed.

Flexible Configurations

Pigtails can be customized by fiber type, connector, polish, buffer diameter, jacket material, length, fiber count and color sequence.

Easier Maintenance

Connectorized ports on the front of a patch panel or distribution frame are easier to inspect, clean, test and reconnect than permanently attached bare fibers.

How to Select the Right Fiber Optic Pigtail

Consider the following factors before ordering.

Selection FactorWhat to Check
Fiber modeSingle-mode or multimode
Fiber specificationOS2, OM1, OM2, OM3, OM4, OM5 or specialty fiber
Connector typeLC, SC, FC, ST, E2000 or another interface
Polish typeUPC or APC
Cable construction0.9 mm buffered, jacketed, ribbon, bundle, armored or waterproof
Fiber countSimplex or multi-fiber assembly
LengthRequired routing and splice-tray length
Jacket materialPVC, LSZH, PE or application-specific material
Operating environmentIndoor, outdoor, industrial or harsh environment
Test requirementsInsertion loss, return loss, continuity and polarity

The pigtail fiber should match the transmission fiber being spliced. Mixing incompatible fiber types can increase splice loss and affect network performance.

Connector polish must also match the adapter and mating connector. In particular, UPC and APC interfaces should always remain separate.

Installation and Testing Best Practices

Correct installation is as important as selecting the correct pigtail.

For reliable performance:

  • Inspect and clean connector end faces before mating.
  • Use the correct fusion-splicer program for the fiber type.
  • Remove all coating residue before cleaving.
  • Use a clean, high-quality fiber cleaver.
  • Protect every splice with an appropriate splice sleeve.
  • Maintain the specified minimum bend radius.
  • Avoid excessive tension, twisting or compression.
  • Organize fibers carefully inside the splice tray.
  • Verify fiber identification and polarity.
  • Test insertion loss after installation.
  • Measure return loss when required by the application.

Contamination is one of the most common causes of optical connection problems. Even a small amount of dust or oil on the connector end face can increase loss or damage the mating connector.

Frequently Asked Questions

Can a fiber pigtail be connected directly to equipment?

Yes. The connectorized end can be connected to compatible equipment, an adapter or a patch-panel port. The bare end must first be spliced to another optical fiber.

Is fusion splicing required?

Fusion splicing is the most common method because it provides a permanent and typically low-loss connection. Mechanical splicing may be used when fusion-splicing equipment is unavailable or when the installation requires a removable mechanical joint.

Should I choose UPC or APC?

Choose UPC for general digital transmission and standard data-network applications. Choose APC when the system requires improved return-loss performance, such as FTTH, CATV, WDM or analog optical transmission.

The choice must also match the existing adapters and connectors in the network.

Are fiber pigtails factory tested?

Quality pigtails are normally inspected and tested before shipment. Depending on the product and project requirements, testing may include insertion loss, return loss, end-face inspection, continuity and polarity verification.

Conclusion

Fiber optic pigtails provide a practical and reliable method for terminating optical cables inside patch panels, terminal boxes, distribution frames and splice enclosures. By combining a factory-installed connector with a fusion-spliced field connection, they help improve installation consistency, simplify maintenance and reduce the time required for on-site termination.

Selecting the correct pigtail requires more than choosing a connector. Fiber mode, polishing type, cable construction, fiber count, jacket material, installation environment and optical-performance requirements should all be considered.

Fiber-Life supplies configurable fiber optic pigtails with a range of single-mode and multimode fibers, connector types, polish options, cable structures, lengths and fiber counts. Custom configurations and test documentation are available for telecommunications, FTTH, data center, industrial and laboratory applications.
