1×16 Singlemode Mini Plug-In, Blade Module PLC Splitter
◎ P/N: 110327
◎ Attention: For a formal quote, please send product details to sales@fiber-life.com.
Delivery: Order today and it will be shipped before from the U.S. or Hong Kong via FedEx/DHL/UPS. Free shipping on orders over US$200.
Warranty: Fiber-Life offers a 1-year warranty, 30-day returns, and 30-day exchanges.
$38.30

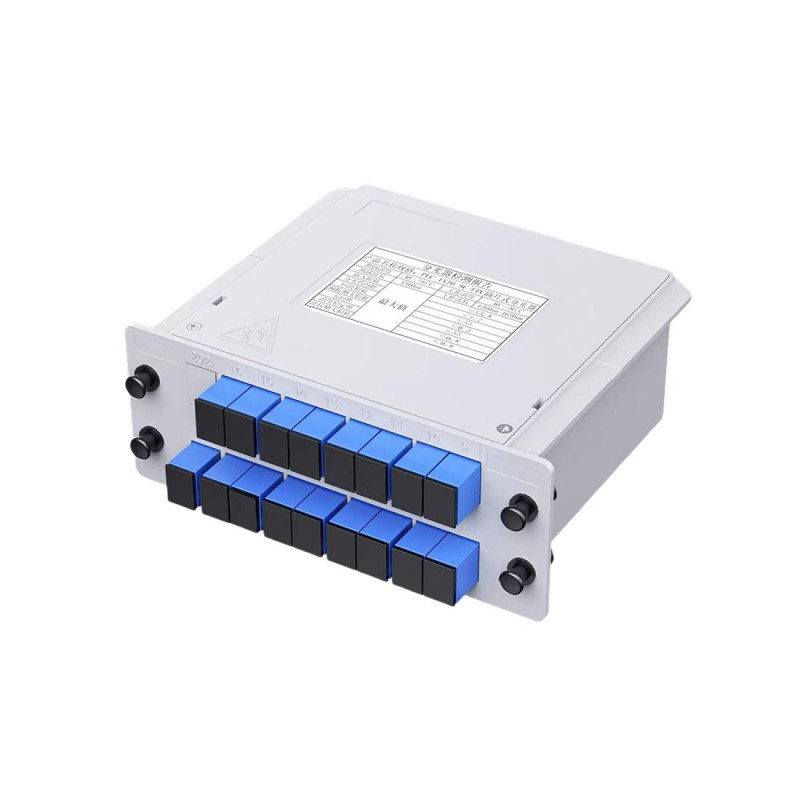

1×16 Singlemode Mini Plug-In, Blade Module PLC Splitter
1×16 Singlemode Mini Plug-In, Blade Module PLC Splitter is a space-efficient and high-performance optical device designed for optical signal distribution in FTTx and PON networks. Utilizing advanced PLC (Planar Lightwave Circuit) technology, it offers low insertion loss, excellent uniformity, and stable performance across the entire operating wavelength range (1260–1650nm). The mini plug-in blade-style module allows for quick installation into standard fiber distribution units, saving time and space. Ideal for FTTH, data centers, and optical communication hubs, this splitter ensures reliable and consistent signal transmission to multiple endpoints.
Specifications
| Parameter | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
|---|---|---|---|---|---|---|
| Operating Wavelength | 1260nm ~ 1650nm | |||||
| Fiber Type | G657A1 | |||||
| Insertion Loss | ≤3.8dB | ≤7.2dB | ≤10.3dB | ≤13.5dB | ≤16.5dB | ≤20.5dB |
| Loss Uniformity | ≤0.4dB | ≤0.6dB | ≤0.8dB | ≤1.0dB | ≤1.5dB | ≤2.0dB |
| Polarization Dependent Loss | ≤0.2dB | ≤0.2dB | ≤0.2dB | ≤0.3dB | ≤0.3dB | ≤0.4dB |
| Return Loss | ≥50dB | |||||
| Directivity | ≥55dB | |||||
| Wavelength Dependent Loss | ≤0.5dB | ≤0.5dB | ≤0.5dB | ≤0.5dB | ≤1.0dB | ≤1.0dB |
| Fiber Length | 1m or Specify | |||||
| Temperature Stability | ≤0.5dB | |||||
| Operating Temperature | -20℃ ~ +85℃ | |||||
| Storage Temperature | -40℃ ~ +85℃ | |||||
| Maximum Power Handing | 500mW | |||||
Note: Specified without connectors; add an additional 0.2dB loss per connector.
| Features | Applications |
|---|---|
| Low Insertion Loss | FTTX Systems |
| Low PDL | PON Networks |
| Compact Design | CATV Links |
| Good Channel-to-Channel Uniformity | Optical Signal Distribution |
