1×2 DWDM Single Channel 200Ghz Channel Spacing

Name: 1x2 DWDM Single Channel 200Ghz Channel Spacing
SKU: 22050
Availability: InStock

◎ P/N: 22050

◎ Attention: For a formal quote, send product details to sales@fiber-life.com.

Delivery:Order Today, will ship out before from U.S. or HK by FedEx/DHL/UPS (The fastest and best one), and Free Shipping on orders over US $200.

Warranty: fiber-life support 1-Year Warranty, 30-Day Returns and 30-Day Exchange.

... people are viewing this right now

$75.49 – $105.49

Pass Channel

Fiber Length

Cable Diameter

Connector

Clear

Custom Details

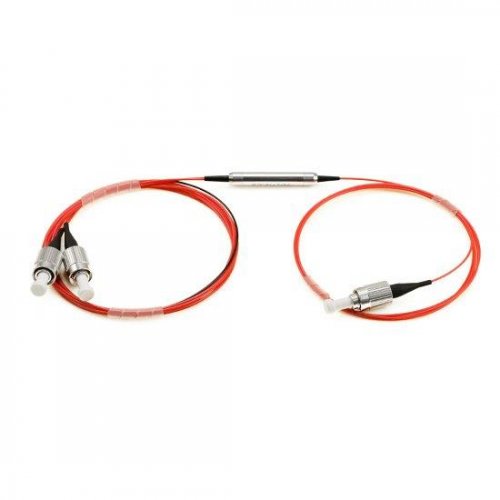

1×2 DWDM Single Channel 200Ghz Channel Spacing

FiberLife’s 1×2 DWDM Single Channel 200Ghz Channel Spacing utilizes advanced thin-film coating technology and a proprietary non-flux metal bonding micro-optics packaging design to enable precise optical add/drop functionality at ITU-defined wavelengths. Designed for high-performance DWDM networks, it offers low insertion loss, high channel isolation, a wide passband, minimal temperature sensitivity, and an epoxy-free optical path, ensuring long-term stability and reliability. This multiplexer is ideal for wavelength add/drop applications in telecommunication networks, enhancing network flexibility and efficiency while maintaining exceptional optical performance.

Specifications

Parameter	Value
Channel Wavelength	ITU Grid
Channel Spacing	100GHz	200GHz
Channel Passband	≥0.22nm	≥0.5nm
Pass Channel Insertion Loss	≤1.0dB	≤0.9dB
Reflection Channel Insertion Loss	≤0.4dB
Pass Channel Isolation	≥30dB
Reflection Channel Isolation	≥13dB
Insertion Loss Temperature Sensitivity	≤0.3dB
Wavelength Temperature Shifting	≤0.001nm/℃
Polarization Dependent Loss	≤0.1dB
Polarization Mode Dispersion	≤0.1ps
Directivity	≥45dB
Return Loss	≥45dB
Maximum Power Handling	300mW
Operating Temperature	-10 ~ +70℃
Storage Temperature	-40 ~ +85℃

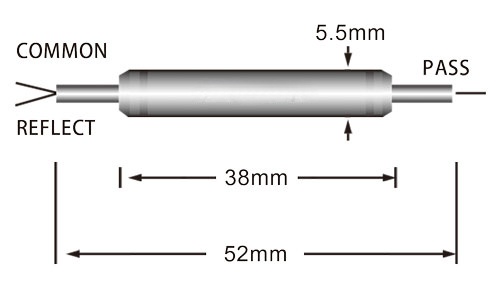

Package Dimension (250μm, 900μm)	Φ5.5 x L38mm (Steel Tube)
Package Dimension (2.0mm, 3.0mm)	L90 x W20 x H10mm (ABS Box)

Note: Above specifications are for devices without connector.

Features	Applications
Low Insertion Loss	Channel Add/Drop
Wide Pass Band	DWDM Network
High Channel Isolation	Wavlength Routing
Epoxy-Free On Optical Path	Fiber Optical Amplifier
High Stability And Reliability	CATV Fiber Optic System
