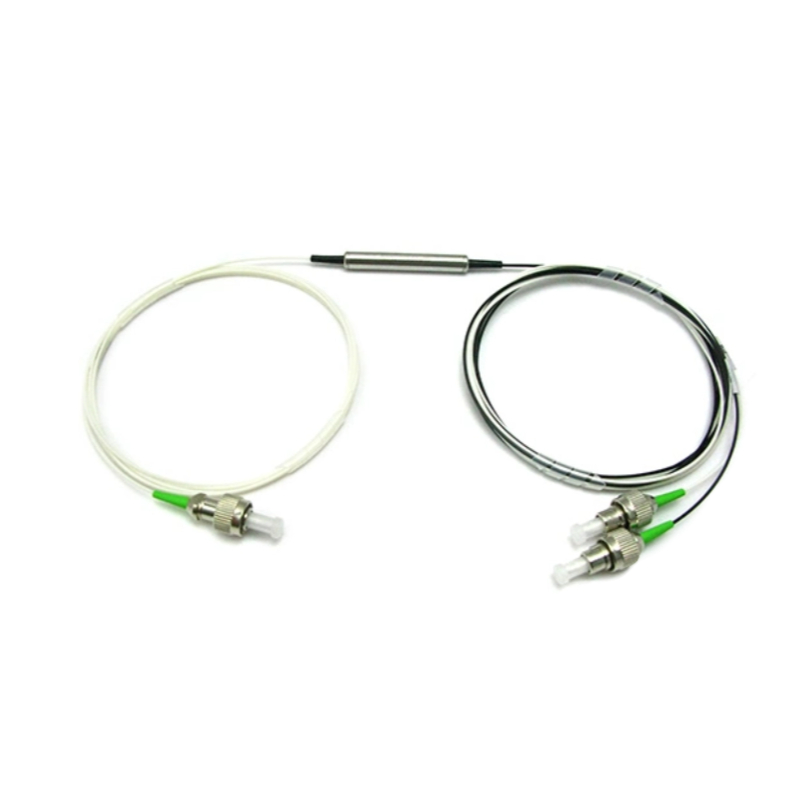

1310/1490/1550nm FWDM Filter Wavelength Division Multiplexer
◎ P/N: 23668
◎ Attention: For a formal quote, send product details to sales@fiber-life.com.
Delivery: Order Today, will ship out before from U.S. or HK by FedEx/DHL/UPS (The fastest and best one), and Free Shipping on orders over US $200.
Warranty: fiber-life support 1-Year Warranty, 30-Day Returns and 30-Day Exchange.
$141.58 – $171.58
1310/1490/1550nm FWDM Filter Wavelength Division Multiplexer
The FiberLife 1310/1490/1550nm FWDM (Filter Wavelength Division Multiplexer) is a high-performance passive optical component designed for FTTx applications, including FTTH networks. Utilizing advanced thin-film filter (TFF) technology, this FWDM enables efficient multiplexing and demultiplexing of 1310nm, 1490nm, and 1550nm wavelengths over a single fiber, supporting the simultaneous transmission of data, voice, and video signals.
With its low insertion loss, high isolation, and excellent thermal stability, the FWDM is ideal for systems requiring reliable signal separation and integration. It supports single-mode fiber and is compliant with industry standards, ensuring superior performance in fiber optic communication systems.
Specifications
| Parameter | 1490nmT/1310nm&1550nmR | 1550nmT/1310nm&1490nmR | 1310nm&1490nmT/1550nmR | |
|---|---|---|---|---|
| Pass Band Wavelength Range (nm) | 1480~1500 | 1540~1560 | 1260~1360&1480~1500 | |
| Reflection Band 1 Wavelength Range (nm) | 1260~1360 | 1260~1360 | 1540~1560 | |
| Reflection Band 2 Wavelength Range (nm) | 1540~1560 | 1480~1500 | ||
| Insertion Loss (dB) | Pass Channel | ≤0.6 | ||
| Reflect Channel | ≤0.4 | |||
| Isolation (dB) | Pass Channel | ≥30 | ||
| Reflect Channel | ≥15 | |||
| Insertion Loss Temperature Sensitivity (dB) | ≤0.3 | |||
| Polarization Dependent Loss (dB) | ≤0.1 | |||
| Polarization Mode Dispersion (ps) | ≤0.1 | |||
| Directivity (dB) | ≥50 | |||
| Return Loss (dB) | ≥45 | |||
| Maximum Power Handling (mW) | 300 | |||
| Operating Temperature (℃) | -10 ~ +70 | |||
| Storage Temperature (℃) | -40 ~ +85 | |||
| Package Dimension (mm) | For 250μm, 900μm | Φ5.5 x L38 (Steel Tube) | ||
| For 2.0mm, 3.0mm | L90 x W20 x H10 (ABS Box) | |||
Note: Above specifications are for devices without connector.
Features
Choosing Housing Types for Different Installation Requirements
250μm, 900μm (Steel Tube)/2.0mm, 3.0mm (ABS Box)
