Customized 1xN, 2xN SingleMode PLC Splitter, ABS Module
◎ P/N: #49037
◎ Attention: For official offers, send product details to sales@fiber-life.com.
Delivery: Order Today, will ship out before from U.S. or HK by FedEx/DHL/UPS (The fastest and best one), and Free Shipping on orders over US $200.
Warranty: fiber-life support 1-Year Warranty, 30-Day Returns and 30-Day Exchange.
- Size Guide
Size Guide
DRESSEST-SHIRTBOTTOMSDRESSESSize Chest Waist Hips XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 2XL 44 38 44 All measurements are in INCHES
and may vary a half inch in either direction.
T-SHIRTSize Chest Waist Hips 2XS 32 26 32 XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 All measurements are in INCHES
and may vary a half inch in either direction.
BOTTOMSSize Chest Waist Hips XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 2XL 44 38 44 All measurements are in INCHES
and may vary a half inch in either direction.
$11.20 – $395.00

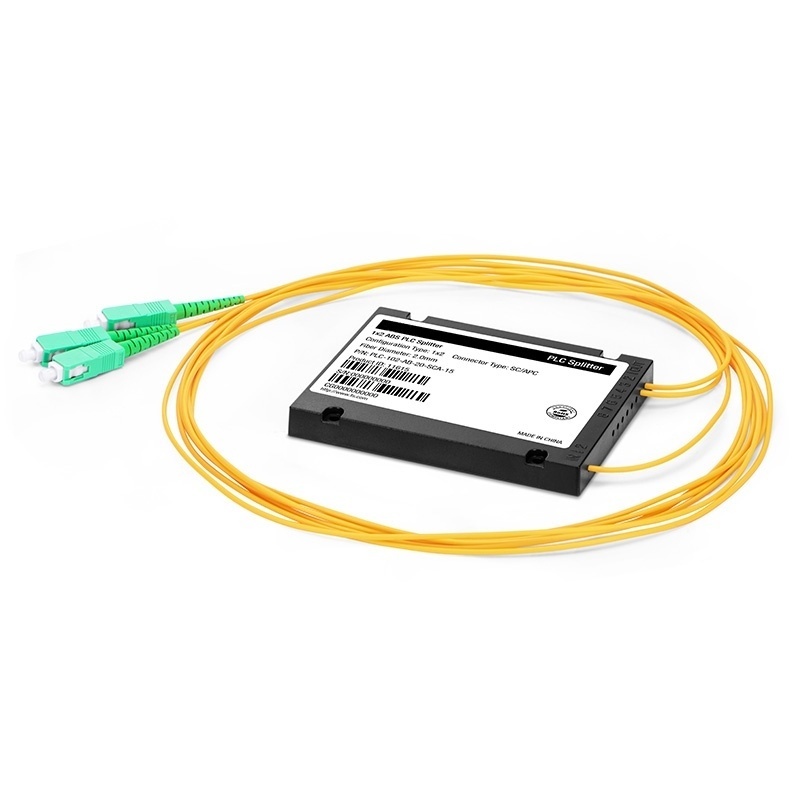

Customized Fiber PLC Splitter Singlemode 1xN,2xN, ABS Box Type
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. FiberLife provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.
Specifications 1×N PLC Splitter
Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 1×128 |
Operating Wavelength(nm) | 1260~1650 | ||||||
Fiber Type | G657A1 or customer specified | ||||||
Insertion Loss (dB)(P/S Grade) | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.9 | 20.5/21.0 | 23.8/24.2 |
Loss Uniformit(dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.0 | 2.5 |
Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 | 0.35 | 0.4 |
Return Loss(dB)(P/S Grade) | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 |
Directivity(dB) | 55 | 55 | 55 | 55 | 55 | 55 | 55 |
Wavelength Dependent Loss(dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 | 0.5 |
Temperature Stability (-40~85℃)(dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 | 0.5 |
Operating Temperature(℃) | -40~+85 | ||||||
Storage Temperature(℃) | -40~+85 | ||||||
Device Dimension(mm) | 40×4×4 | 40×4×4 | 40×4×4 | 50×7×4 | 50×7×4 | 60×12×4 | N/A |
Module Dimension(mm) | 100×80×10 | 120×80×18 | 141×115×18 | ||||
Mini-Module Dimension(mm) | 50×7×4 | 60×12×4 | 80×20×6 | 100×40×6 | N/A |
Specifications 2×N PLC Splitter
Parameters | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 | 2×128 |
Operating Wavelength(nm) | 1260~1650 | ||||||
Fiber Type | G657A1 or customer specified | ||||||
Insertion Loss (dB) P/S Grade) | 3.9/4/2 | 7.3/7.6 | 10.5/11 | 14.4/14.6 | 17.4/17.9 | 21.0/21.5 | 24.5/25.0 |
Loss Uniformity(dB) | ≤0.6 | ≤1.0 | ≤1.2 | ≤1.5 | ≤1.8 | ≤2.2 | ≤2.5 |
Polarization Dependent Loss(dB) | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.4 |
Return Loss(dB)(P/S Grade) | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 |
Directivity(dB) | 55 | 55 | 55 | 55 | 55 | 55 | 55 |
Wavelength Dependent Loss(dB) | ≤0.3 | ≤0.4 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 |
Fiber Length (m) | 1.5(±0.1)or customer specified | ||||||
Temperature Stability(-40~85℃)(dB) | ≤0.5 | ||||||
Operating Temperature(℃) | -20~+75 | ||||||
Storage Temperature(℃) | -40~+85 | ||||||
Maximum Power Handling (mW) | 500 |
Note:
1、The above parameters were measured at room temperature, but not including connectors data.
2、Add an additional 0.2dB loss per connector,Return Loss≥55dB(APC),≥50dB(UPC).
Features |
Applications |
Low Insertion loss | FTTX Systems |
Low PDL | PON Networks |
Compact Design | CATV Links |
Good channel-to-channel uniformity | Optical Signal Distribution |
Wide Operating Wavelength:From 1260nm to 1650nm | |
Wide Operating Temperature:From -40℃ to 85℃ | |
High Reliability and Stability |
Package Size And Pigtail Specifications
A:100×80×10 | ![]() |
B:120×80×18 | ![]() |
C:140×115×18 | ![]() |
![vCustomized 1xN, 2xN SingleMode PLC Splitter, ABS Module-5](https://fiber-life.com/wp-content/uploads/2024/05/PLC-Splitter-scaled.jpg)
Models | 1×2, 1×4, 1×8, 1×16, 1×24, 1×32, 1×64, 1×128, 2×2, 2×4, 2×8, 2×16, 2×32, 2×64, 2×128 |
---|---|

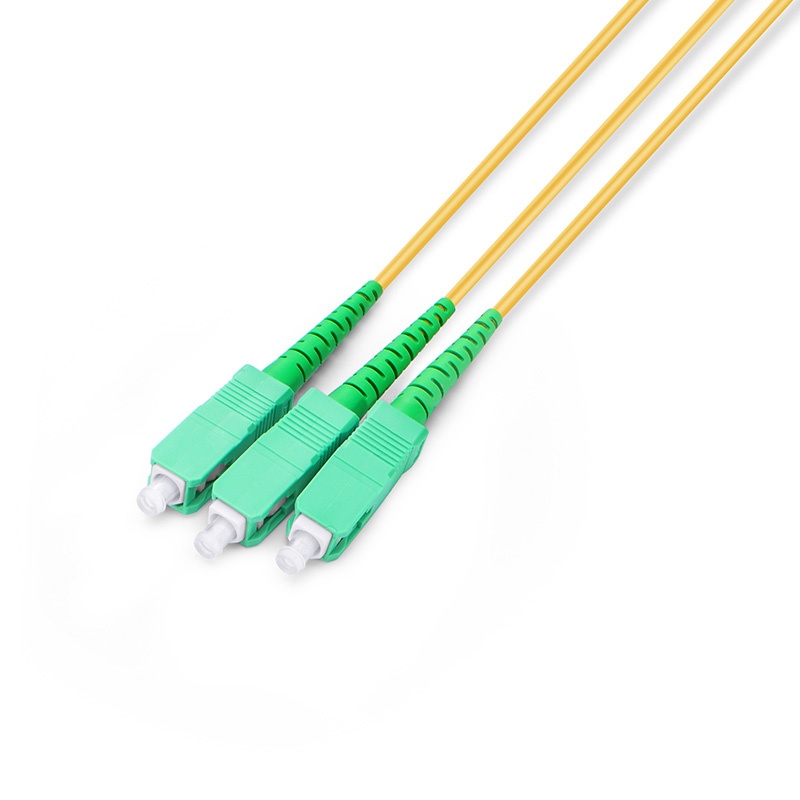

Connectors | SC/APC, SC/UPC, FC/APC, FC/UPC, LC/APC, LC/UPC, ST/APC, ST/UPC, None |
Fiber Diameter | 0.9mm, 2.0mm, 3.0mm |
Fiber Length | 1.0m, 1.5m, 2.0m |
