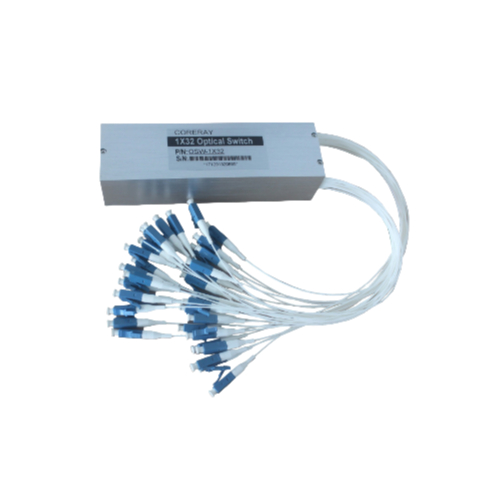

1xN Multi-channel Non-Latching PM Optical Switch Module
◎ P/N: #67663
◎ Attention: For official offers, send product details to sales@fiber-life.com.
Delivery: Order Today, will ship out before from U.S. or HK by FedEx/DHL/UPS (The fastest and best one), and Free Shipping on orders over US $200.
Warranty: fiber-life support 1-Year Warranty, 30-Day Returns and 30-Day Exchange.
$988.00 – $12,988.00
1xN Multi-channel Non-Latching PM Optical Switch Module
1xN Multi-channel Non-Latching PM Optical Switch Module is a high-performance fiber optic signal switching device that can distribute an input optical signal to N different output channels (such as 2, 4, 8, etc.). Its non-latching design allows the switch to automatically return to its initial position when the drive signal is lost, and will not stay in the current channel. The module’s polarization maintenance (PM) function ensures the stability of the polarization state during the transmission of optical signals. It is very suitable for polarization-sensitive systems such as fiber optic sensing, test and measurement, and network monitoring, and can effectively improve the flexibility of optical path configuration and the reliability of communication networks.
Specifications
| Insertion Loss | dB | 1<N≤32 | 32<N≤64 |
| Typ:0.6 Max:1.0 | Typ:1.0 Max:1.5 | ||
| Wavelength Range | nm | 532~1300, 850~1310
1260~1660 |
|
| Testing Wavelength | nm | 532/650/780/850/980/1300 | 1310/1490/1550/1650 |
| Return Loss | dB | SM≥55,MM≥35 | |
| Crosstalk | dB | ≥-80 | |
| Extinction Ratio (dB) | dB | ≥ 18 | |
| WDL | dB | ≤0.25 | |
| TDL | dB | ≤0.30 | |
| Repeatability | dB | ≤±0.05 | |
| Lifetime | cycle | 10000000 | |
| Optical Input Power | mW | ≤1000 | |
| Switching Time | ms | ≤10 (Sequence Switch Time Of Adjacent Channel) | |
| Operating Temperature | °C | -40~+70 | |
| Storage Temperature | °C | -40~+85 | |
| Power Supply | V | +5 | |
| Dimension | mm | 135×40×32 (N≤32), 135×64×32 (N≤64) | |
Features |
Applications |
| Unmatched Low Cost | Optical Network |
| Low Insertion loss | Protection/Restoration |
| High Channel Isolation | Optical Singnal Routing |
| High Stability, High Reliability | Configurable Optical Add/Drop |
| Epoxy-free on Optical Path | Transmitter and receiver protection |
| Latching and Non-latching | Network Test System |
Optical Route
Pins:
|
Pin |
I/O | Signal Name | Description |
|
1 |
Input | /RESET | TTL, Low level reset to channel 0. High level means channel.
selection bits are effective. |
|
2 |
Input | D0 | TTL,D0 is low, and D4 is high, Example：00000b=1 CH;11111b=32 CH. |
|
3 |
Input | D1 | |
|
4 |
Input | D2 | |
|
5 |
Input | D3 | |
|
6 |
Input |
D4 |
|
| 7 | Out | /READY |
TTL, Ready (High=Not ready, Low=Ready) |
| 8 | Out | ERROR |
TTL, Error (High=Error, Low=No error) |
| 9 | Power in | GND |
Ground |
| 10 | Power in | 5V |
5.0±5% VDC Power Supply (max 500mA) |
| 11 | S- | RS232(485) |
RX (B) |
| 12 | S+ | RS232(485) |
TX (A) |
Flexible Architectures
Mechanical Dimensions (Unit: mm) ：
Type A(N ≤ 32)
Type B(N ≤ 64)
| Channel | 1×4, 1×8, 1×12, 1×16, 1×32, 1×64 |
|---|---|
| Wavelength | 1550nm, 1330nm, Customize |
| Fiber Diameter | 250um, 900um, 2.0mm, 3.0mm |
| Fiber Length | 0.5m, 1.0m, 1.5m, 2.0m |
| Connector | None, FC/APC, FC/UPC, SC/APC, SC/UPC, LC/APC, LC/UPC, ST/APC, ST/UPC |
| Control Port | RS232+TTL, RS485+TTL, USB |
