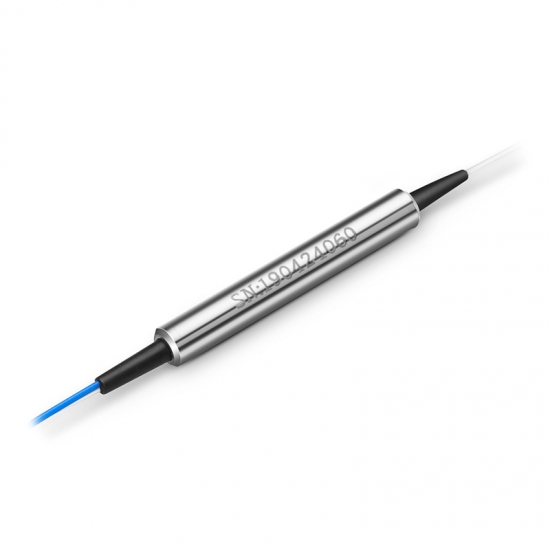

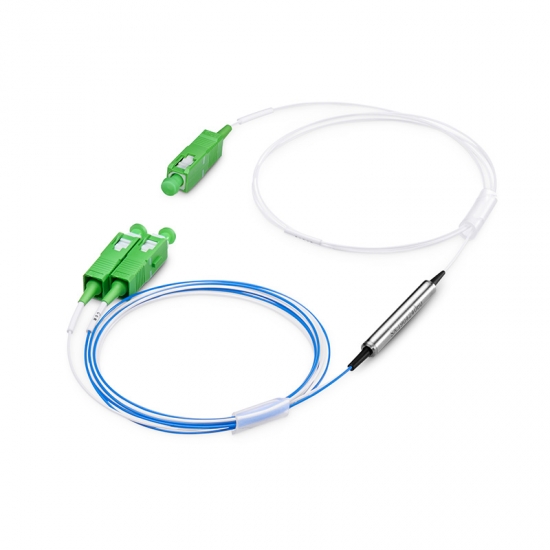

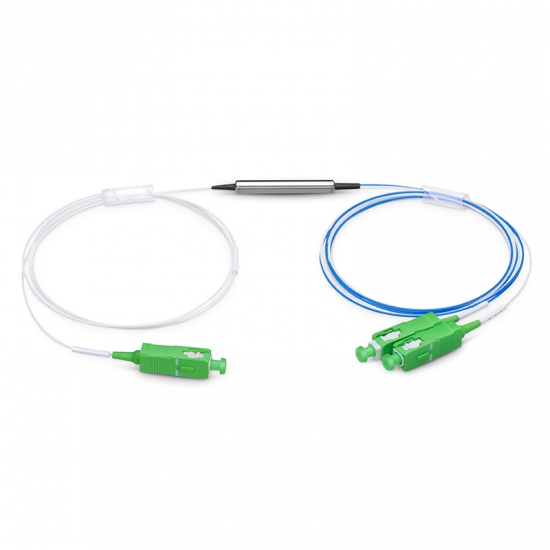

Customized 1×2 1310~1550nm Polarization Maintaining (PM) Beam Splitter (PBS)
◎ P/N: #69228
◎ Attention: For official offers, send product details to sales@fiber-life.com.
Delivery: Order Today, will ship out before from U.S. or HK by FedEx/DHL/UPS (The fastest and best one), and Free Shipping on orders over US $200.
Warranty: fiber-life support 1-Year Warranty, 30-Day Returns and 30-Day Exchange.
- Size Guide
Size Guide
DRESSEST-SHIRTBOTTOMSDRESSESSize Chest Waist Hips XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 2XL 44 38 44 All measurements are in INCHES
and may vary a half inch in either direction.
T-SHIRTSize Chest Waist Hips 2XS 32 26 32 XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 All measurements are in INCHES
and may vary a half inch in either direction.
BOTTOMSSize Chest Waist Hips XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 2XL 44 38 44 All measurements are in INCHES
and may vary a half inch in either direction.
$181.00 – $281.00
1×2 1310~1550nm Polarization Beam Splitter (PBS), PM Fiber Beam Combiner
A Polarization Maintaining (PM) Beam Splitter is an optical device that splits a single input light beam into two or more output beams while preserving the polarization state of the input light. It is essential in applications requiring the maintenance of light polarization, such as fiber optic communication systems, interferometers, and laser setups. PM Beam Splitters are characterized by their ability to handle high-power light beams, low insertion loss, and high extinction ratio, ensuring minimal signal degradation and effective polarization maintenance. They are commonly used to distribute optical signals in fiber optic networks, divide laser beams in complex laser systems, and maintain polarization in optical sensors for accurate detection.
Specifications
Parameter | Specification |
Center Wavelength(nm) | 1310 or 1480 or 1550 |
Operation Wavelength Range(nm) | ±40 |
Typical Insertion Loss (@23℃)(dB) | ≤0.4 |
Maximum Insertion Loss (@23℃)(dB) | ≤0.6 |
Min. Extinction Ratio (for splitter only) (@23℃)(dB) | ≥23 |
Min. Return Loss (@23℃)(dB) | ≥50 |
Operation Temperature(℃) | -10~+75 |
Storage Temperature(℃) | -40~+85 |
Fiber Type | PM1310 or PM1550 or Specify |
Max. Tensile Load (N) | 5 |
Package Dimension(mm) | Φ5.5×L35 |
Power Handing (mW) | 500 or Specify |
Note:
For devices with connectors,IL will be 0.3dB higher, RL will be 5dB lower, ER is 2dB lower.
Specifications may change without notice.
Features |
Applications |
Low insertion Loss | High power EDFA |
High extinction ratio | Raman amplifier |
Compact in-line package | Laboratory |
High stability and reliability | |
Epoxy free on optical path |
Wavelength | 1310nm, 1480nm, 1550nm |
---|---|
Fiber Type | Port1 and Port2 PM fiber; Port3 SMF-28, All PM fiber |
Fiber Diameter | 250um, 900um, 2.0mm, 3.0mm |
Fiber Length | 0.5m, 1.0m, 1.5m |
Connector | SC/APC, SC/UPC, FC/APC, FC/UPC, LC/APC, LC/UPC, ST/APC, ST/UPC, None |
Working Axis | Slow Axis, Fast Axis, Both Axis |
