26dBm Output Fiber Amplifier EDFA Module For C/L-Band DWDM Solution
◎ P/N: #72058
◎ Attention: For official offers, send product details to sales@fiber-life.com.
Delivery: Order Today, will ship out before from U.S. or HK by FedEx/DHL/UPS (The fastest and best one), and Free Shipping on orders over US $200.
Warranty: fiber-life support 1-Year Warranty, 30-Day Returns and 30-Day Exchange.
$1,908.00
26dBm Output Fiber Amplifier EDFA Module For C/L-Band DWDM Solution
The DWDM EDFA (Erbium-Doped Fiber Amplifier) provides robust amplification for C-Band and L-Band DWDM signals, featuring a low noise figure of approximately 4.5dB, a maximum gain of up to 40dB, and an output power reaching 26dBm. The 26dBm Output Fiber Amplifier EDFA Module are widely used in backbone networks, metro networks, data center.
Specifications
| Size | 150 x 125 x 24 mm | Maximum Output Power | 26 dBm |
| Maximum Gain | 40 dB | Typical Noise Figure | 4.5 dB |
| Gain Flatness | ＜1.5 dB | Operating Wavelength | C-Band 40/80 Wavelength: 1529~1561 nm C-Band 48/96 Wavelength: 1528~1568 nm C-Band 120 Wavelength: 1524~1572 nm L-Band 100 Wavelength: 1575~1618 nm |
| Operating Mode | AGC(FGA) | Supply Voltage | 5VDC |
Feature● Low Noise Figure ● High Reliability ● High Saturated Output Power ● AGC/APC/ACC Control Mode ● Compact Size |
Application● Backbone Network ● Metro Network ● Data Center |

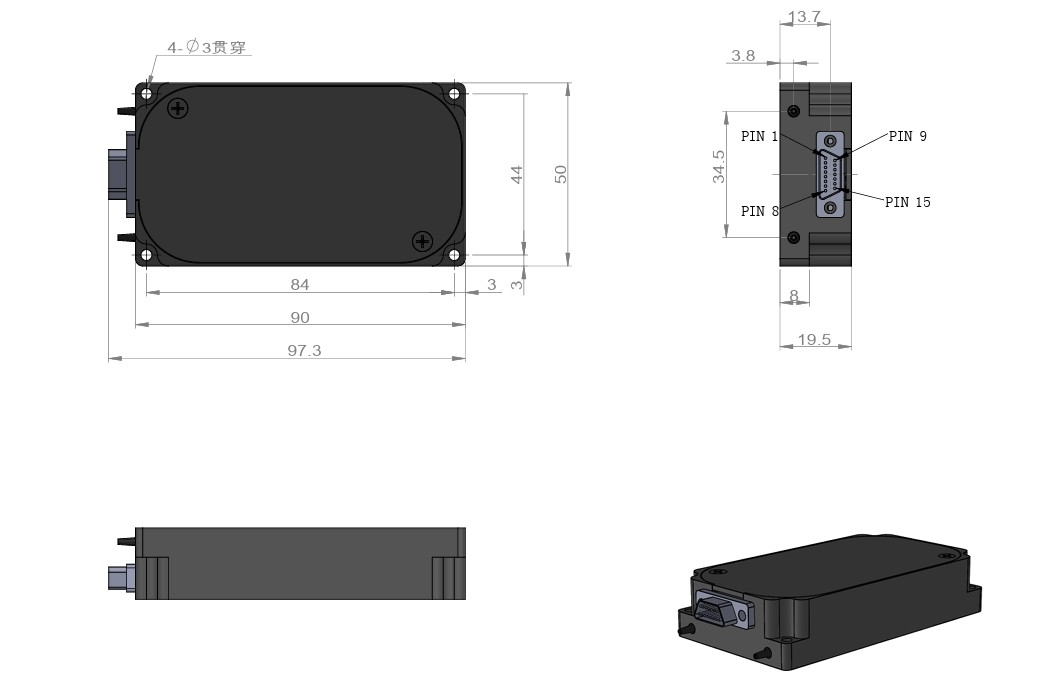

Dimensional Drawing
| Connector | SC/APC, SC/UPC, FC/APC, FC/UPC, LC/APC, LC/UPC, ST/APC, ST/UPC |
|---|
