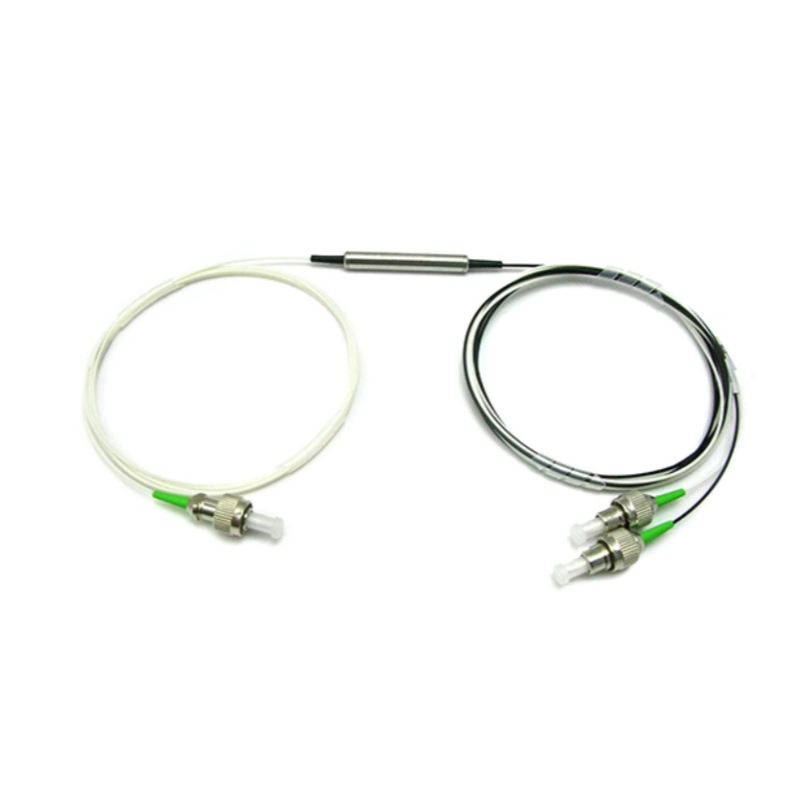

980/1480/1550nm FWDM Filter Wavelength Division Multiplexer
◎ P/N: 80558
◎ Attention: For a formal quote, send product details to sales@fiber-life.com.
Delivery: Order Today, will ship out before from U.S. or HK by FedEx/DHL/UPS (The fastest and best one), and Free Shipping on orders over US $200.
Warranty: Fiber-Life support 1-Year Warranty, 30-Day Returns and 30-Day Exchange.
$172.49 – $202.49
980/1480/1550nm FWDM Filter Wavelength Division Multiplexer
The FiberLife 980/1480/1550nm FWDM Filter Wavelength Division Multiplexer is a high-performance passive optical component designed for wavelength multiplexing in fiber amplifier and laser systems. Specifically, the 1550nmT/1480nmR and 1550nmT/980nmR FWDM modules enable the efficient combination or separation of signal light (1550nm) and pump light (1480nm or 980nm), making them ideal for use in EDFA (Erbium-Doped Fiber Amplifier) and fiber laser applications. By allowing the 1550nm signal to pass through while reflecting the pump wavelength, these FWDMs ensure optimal power coupling into erbium-doped fiber, significantly enhancing amplification efficiency.
Specifications
| Parameter | 1550nmT/1480nmR | 1550nmT/980nmR | |
|---|---|---|---|
| Pass Band Wavelength Range (nm) | 1530~1565 | 1525~1600 | |
| Reflection Band Wavelength Range (nm) | 1450~1490 | 965~1000 | |
| Insertion Loss (dB) | Pass Channel | ≤0.6 | ≤0.9 |
| Reflect Channel | ≤0.5 | ≤0.7 | |
| Insertion Loss Variation (dB) | ≤0.3 | ||
| Isolation (dB) | Pass Channel | ≥25 | ≥30 |
| Reflect Channel | ≥15 | ≥15 | |
| Insertion Loss Temperature Sensitivity (dB) | ≤0.3 | ||
| Polarization Dependent Loss (dB) | ≤0.1 | ||
| Polarization Mode Dispersion (ps) | ≤0.1 | ||
| Directivity (dB) | ≥50 | ||
| Return Loss (dB) | ≥50 | ||
| Maximum Power Handling (mW) | 300 | ||
| Operating Temperature (℃) | -10 ~ +70 | ||
| Storage Temperature (℃) | -40 ~ +85 | ||
| Package Dimension (mm) | For 250μm, 900μm | Φ5.5 x L38 (Steel Tube) | |
| For 2.0mm, 3.0mm | L90 x W20 x H10 (ABS Box) | ||
Note: Above specifications are for devices without connector.
Features
Choosing Housing Types for Different Installation Requirements
250μm, 900μm (Steel Tube)/2.0mm, 3.0mm (ABS Box)
